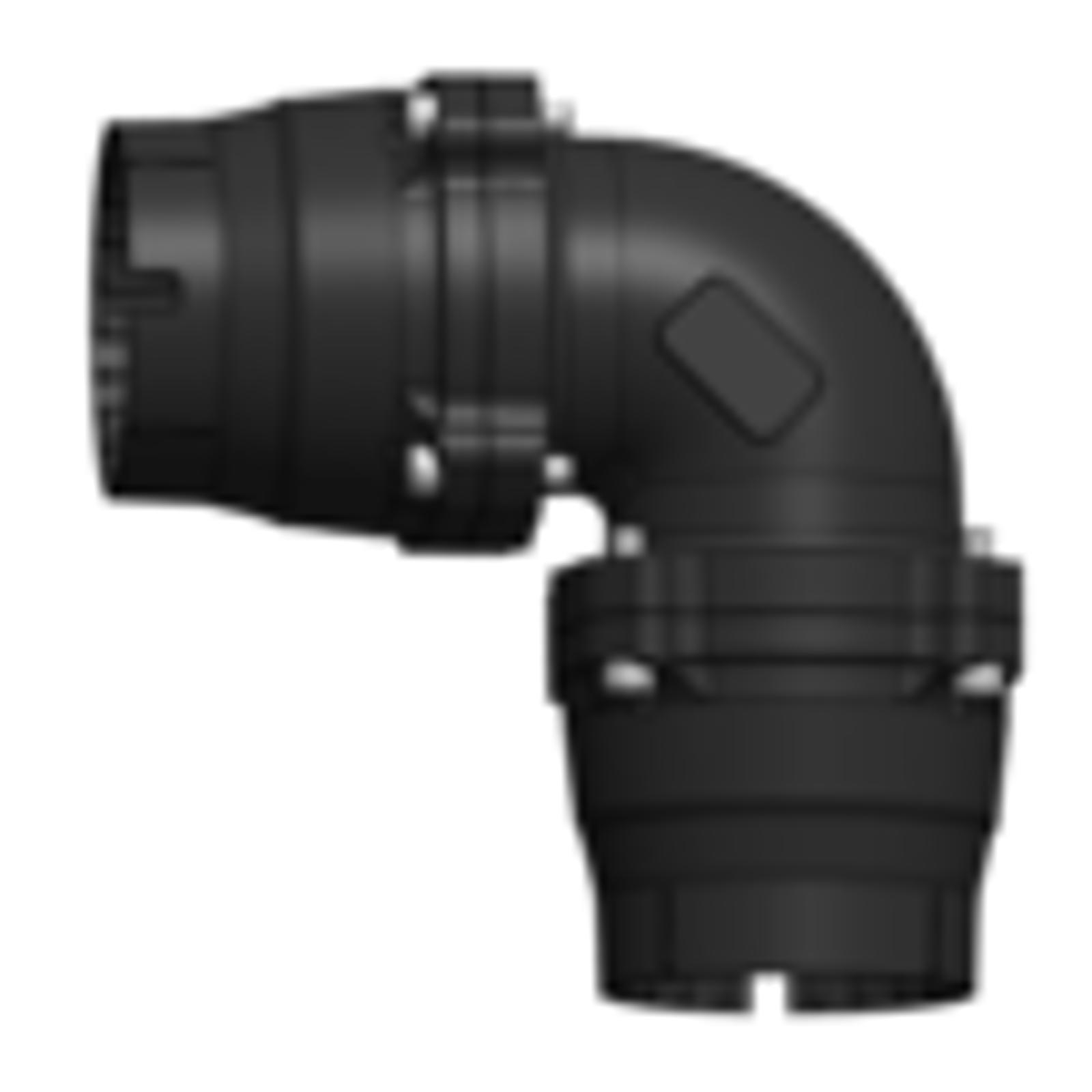

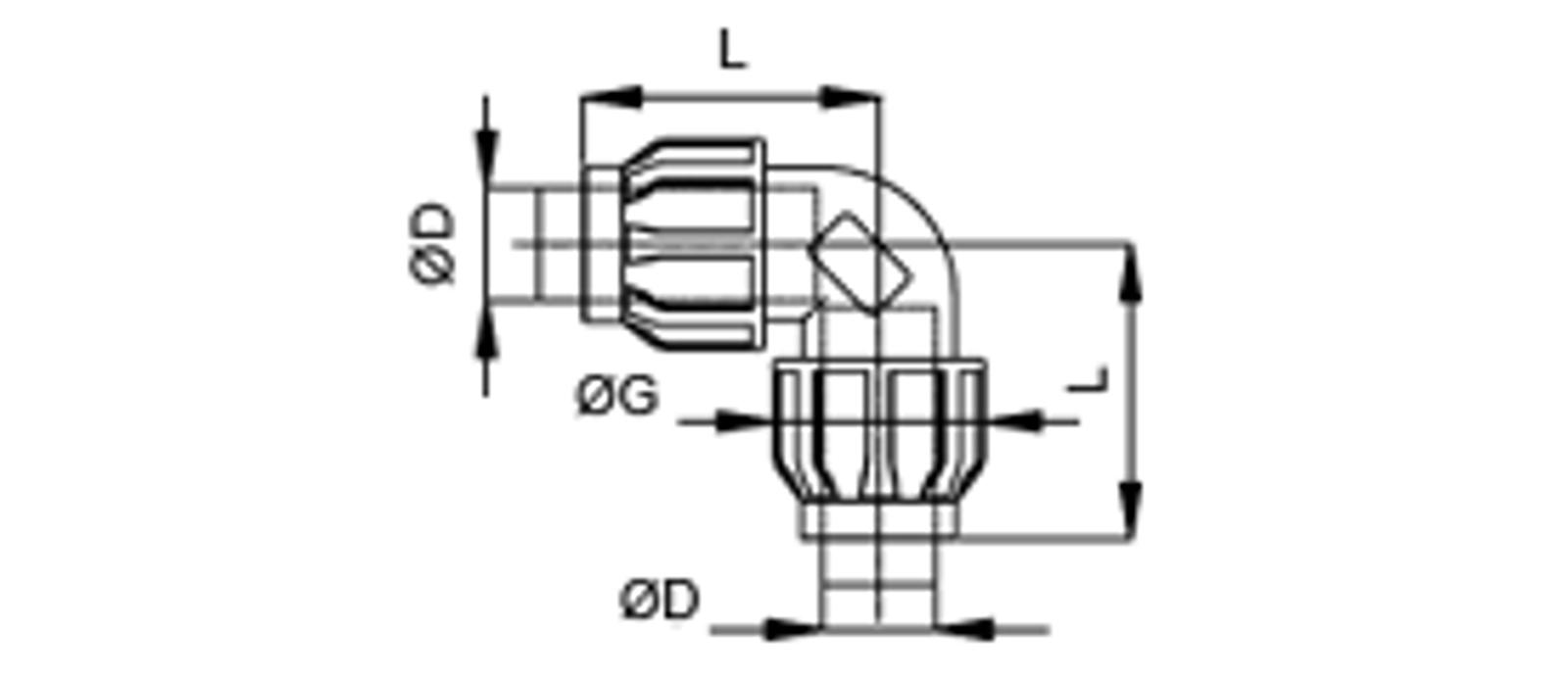

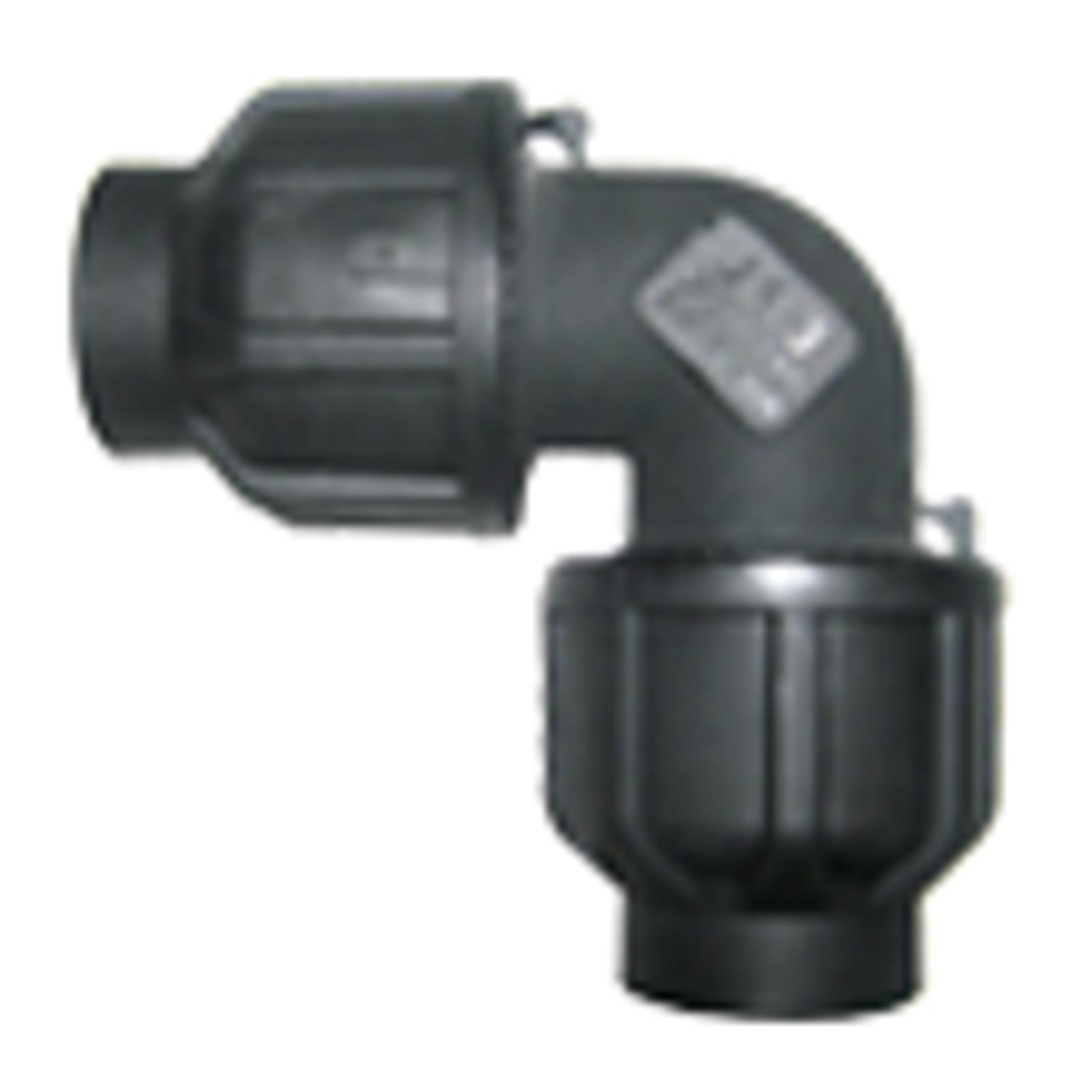

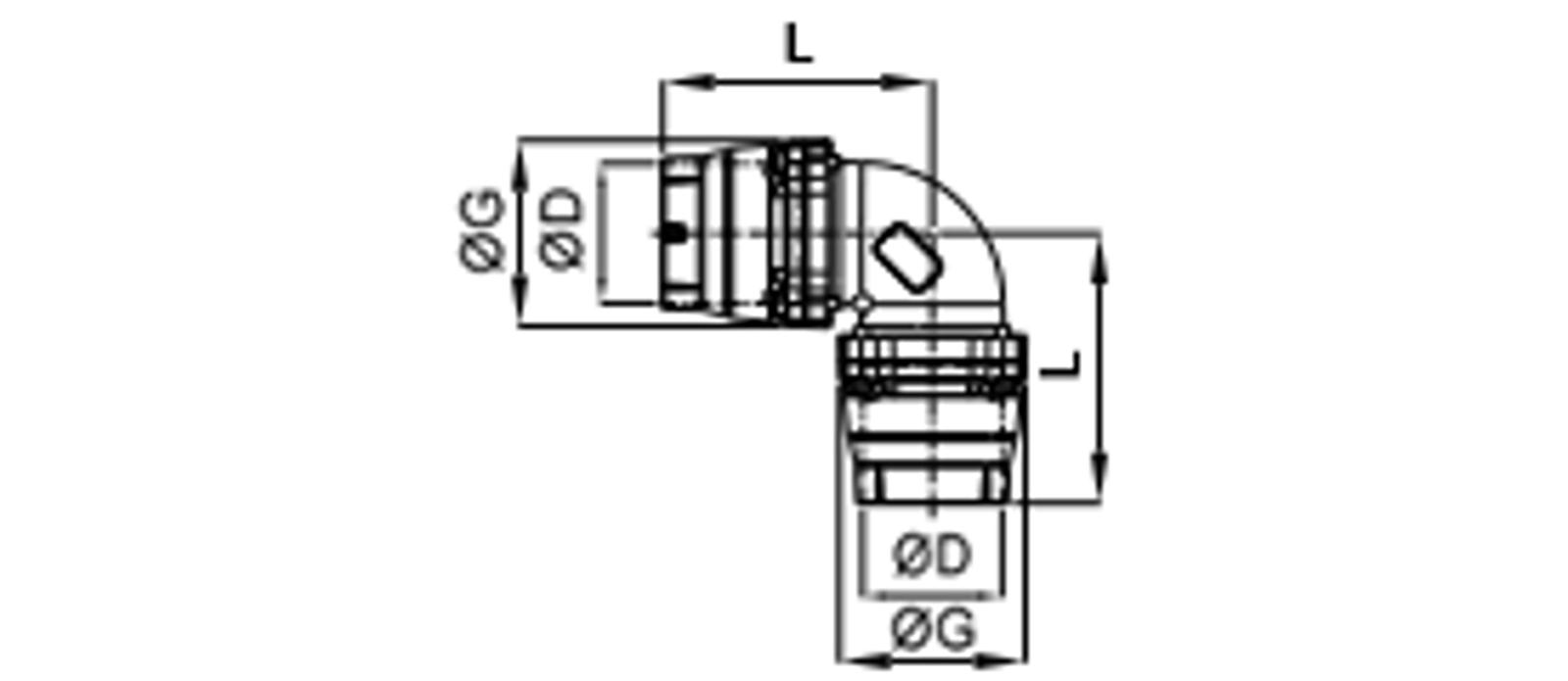

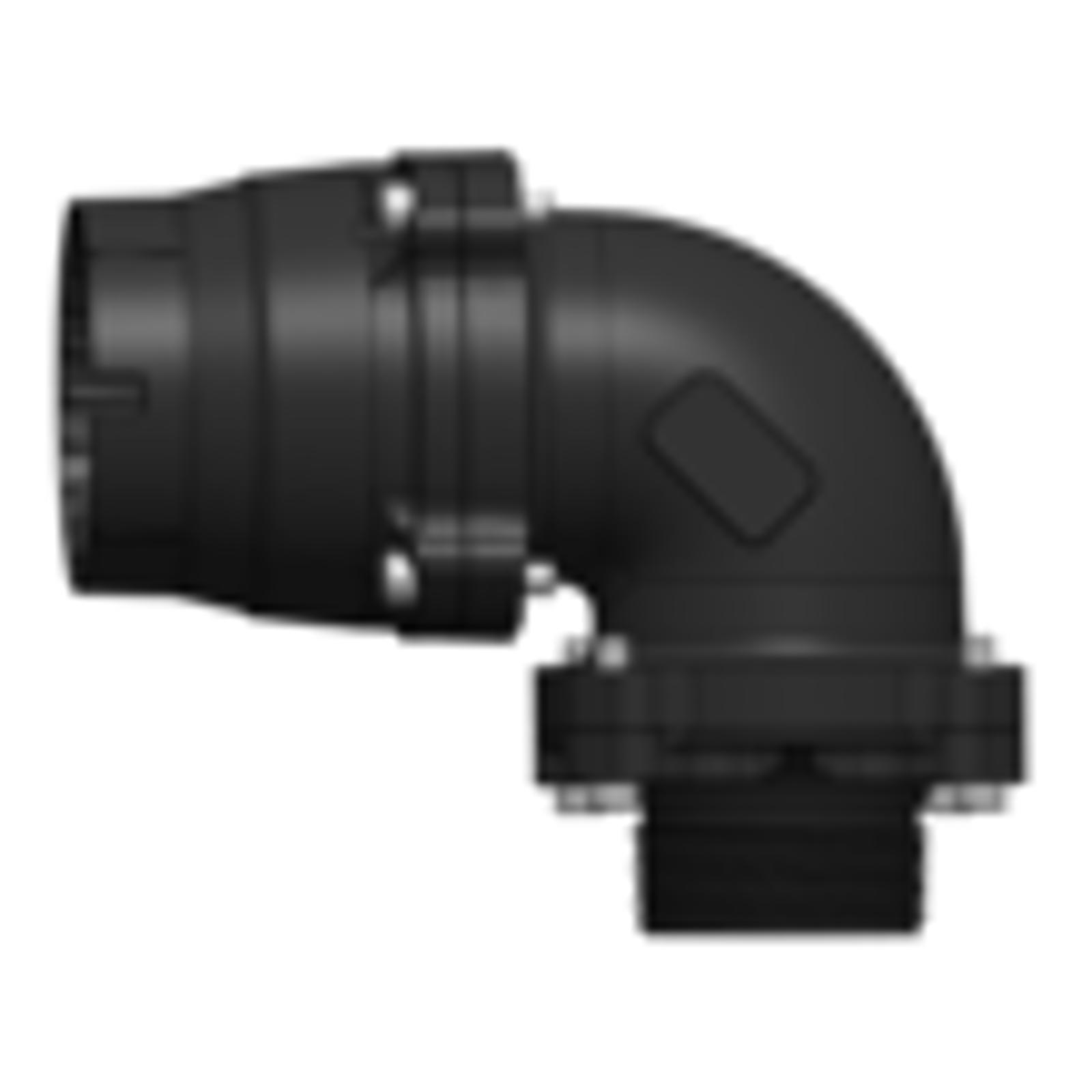

| 90° ELBOW | ||||||
| Code | ØD (mm) | ØG (mm) | L (mm) | |||
| 09P.ELBD.020 | 20 | 43 | 77 | |||
| 09P.ELBD.025 | 25 | 51 | 77 | |||
| 09P.ELBD.032 | 32 | 61 | 88 | |||
| 09P.ELBD.040 | 40 | 75 | 105 | |||
| 09P.ELBD.063 | 63* | 105 | 138 | |||
| 09P.ELBD.080 | 80** | 140 | 191,5 | |||
| 09P.ELBD.110 | 110** | 176 | 212,5 | |||
| 09P.ELBD.160 | 158** | 235 | 278 | |||

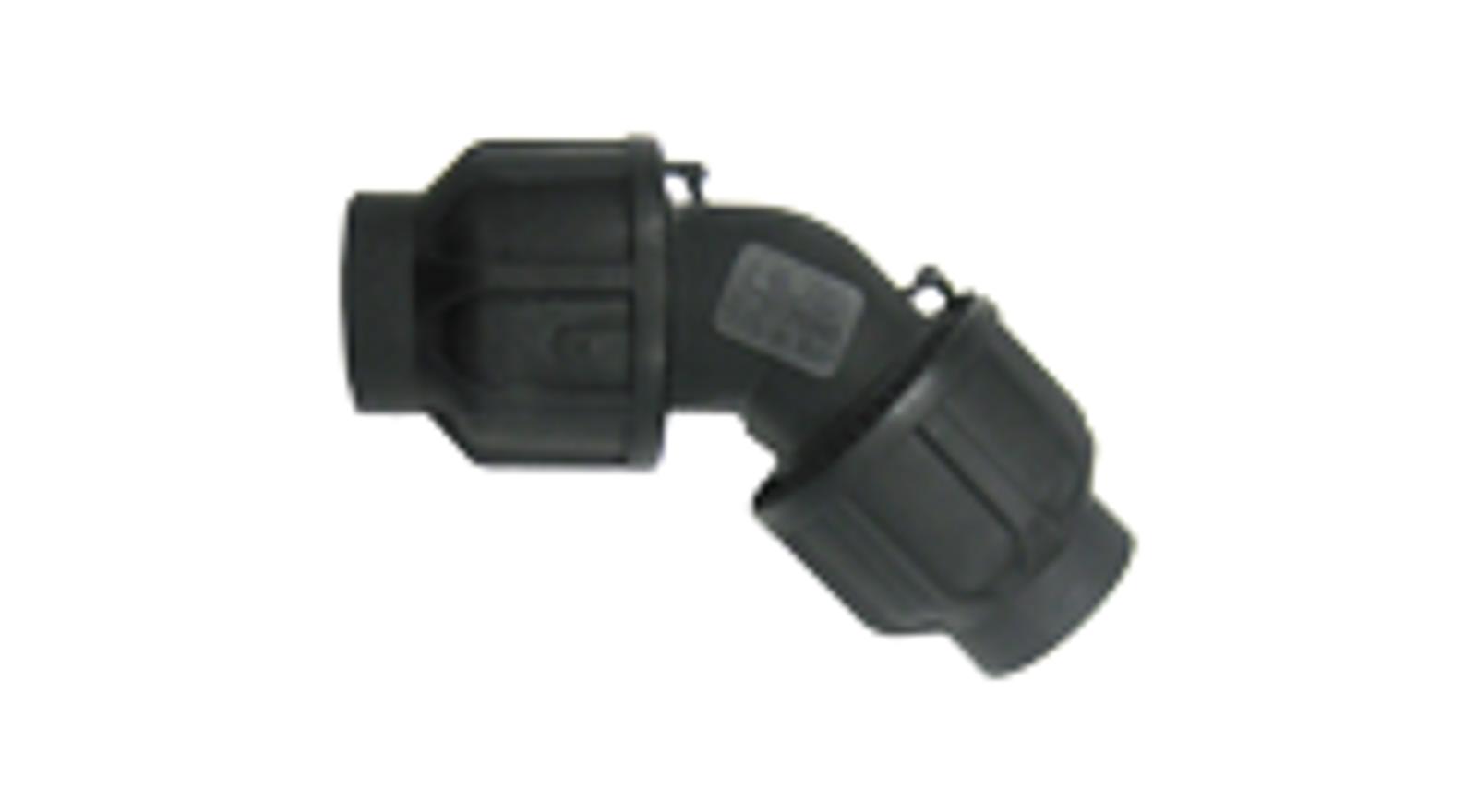

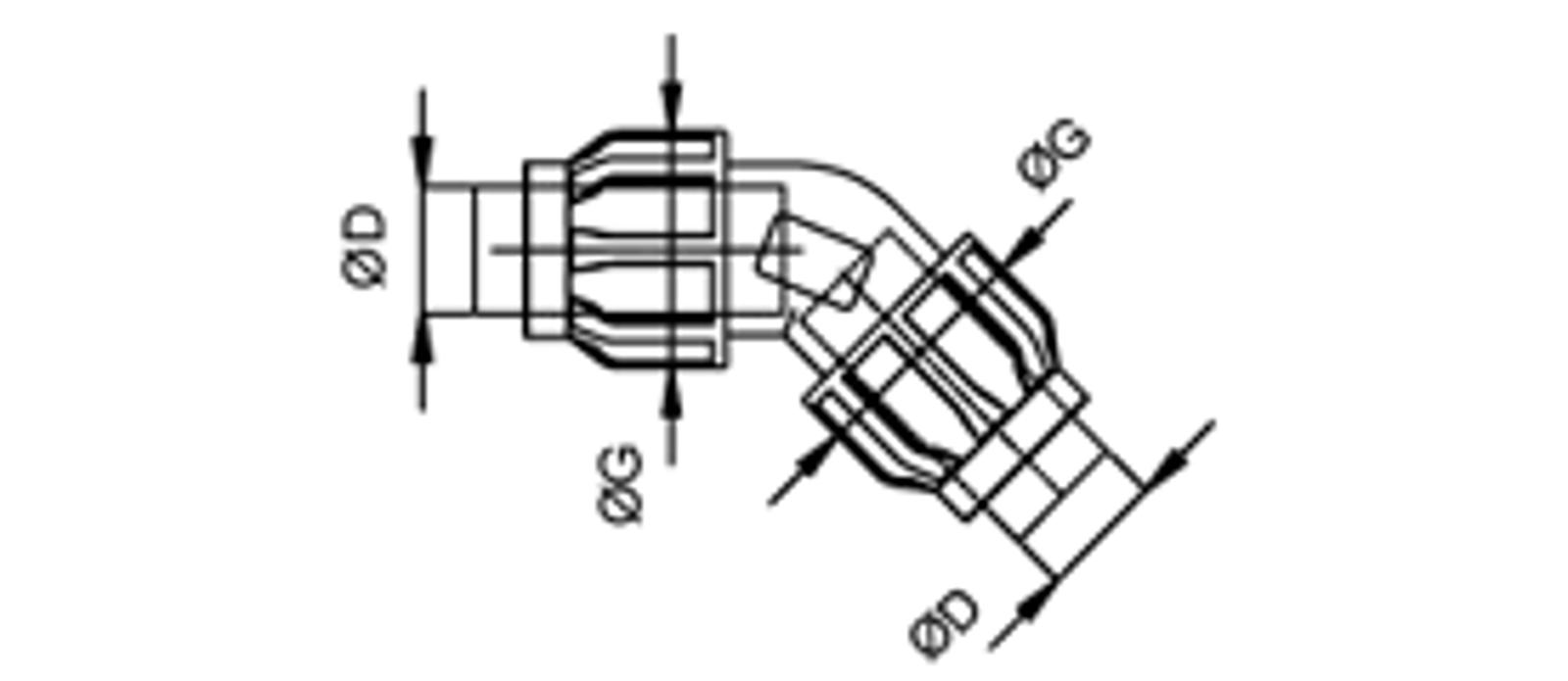

| 45° ELBOW | ||||||
| Code | ØD (mm) | ØG (mm) | ||||
| 09P.ELBH.020 | 20 | 43 | ||||
| 09P.ELBH.025 | 25 | 51 | ||||
| 09P.ELBH.032 | 32 | 61 | ||||
| 09P.ELBH.040 | 40 | 75 | ||||
| 09P.ELBH.063 | 63* | 105 | ||||

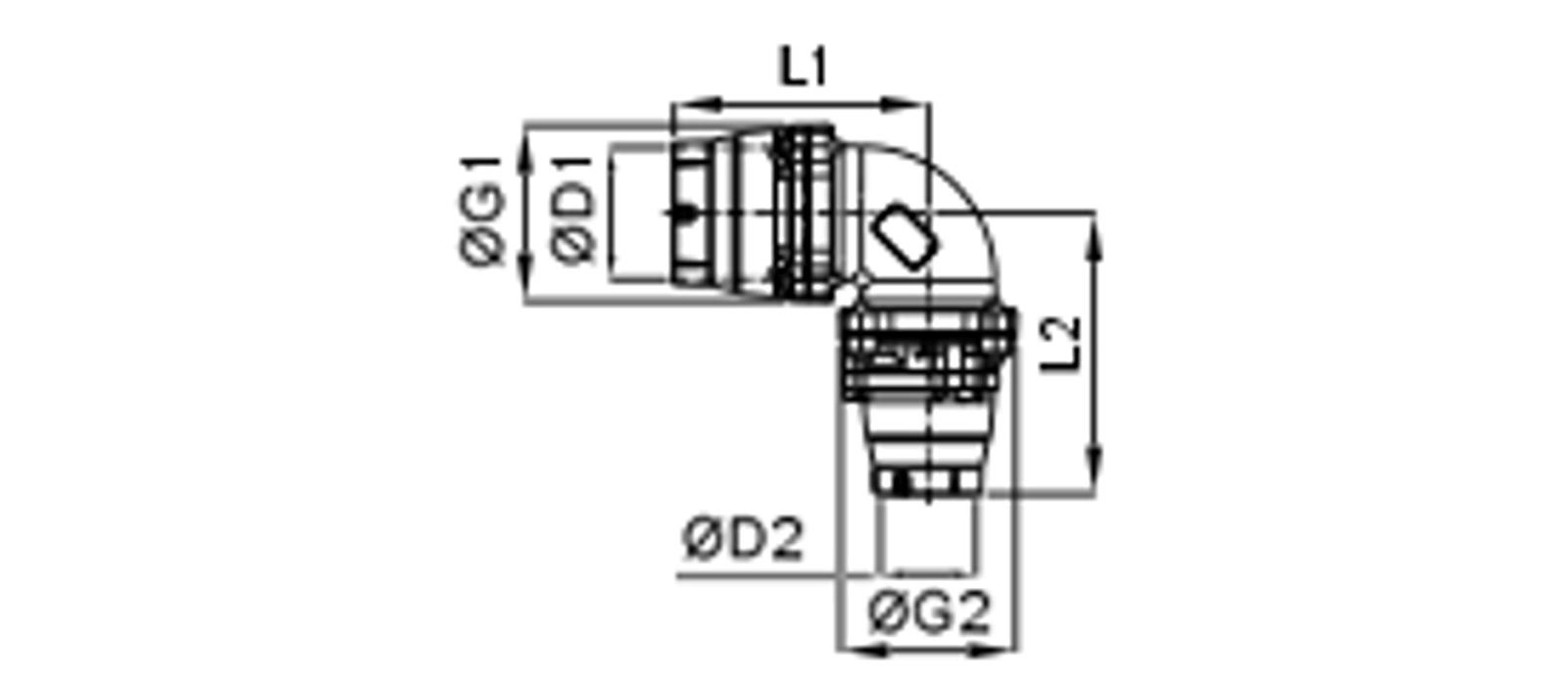

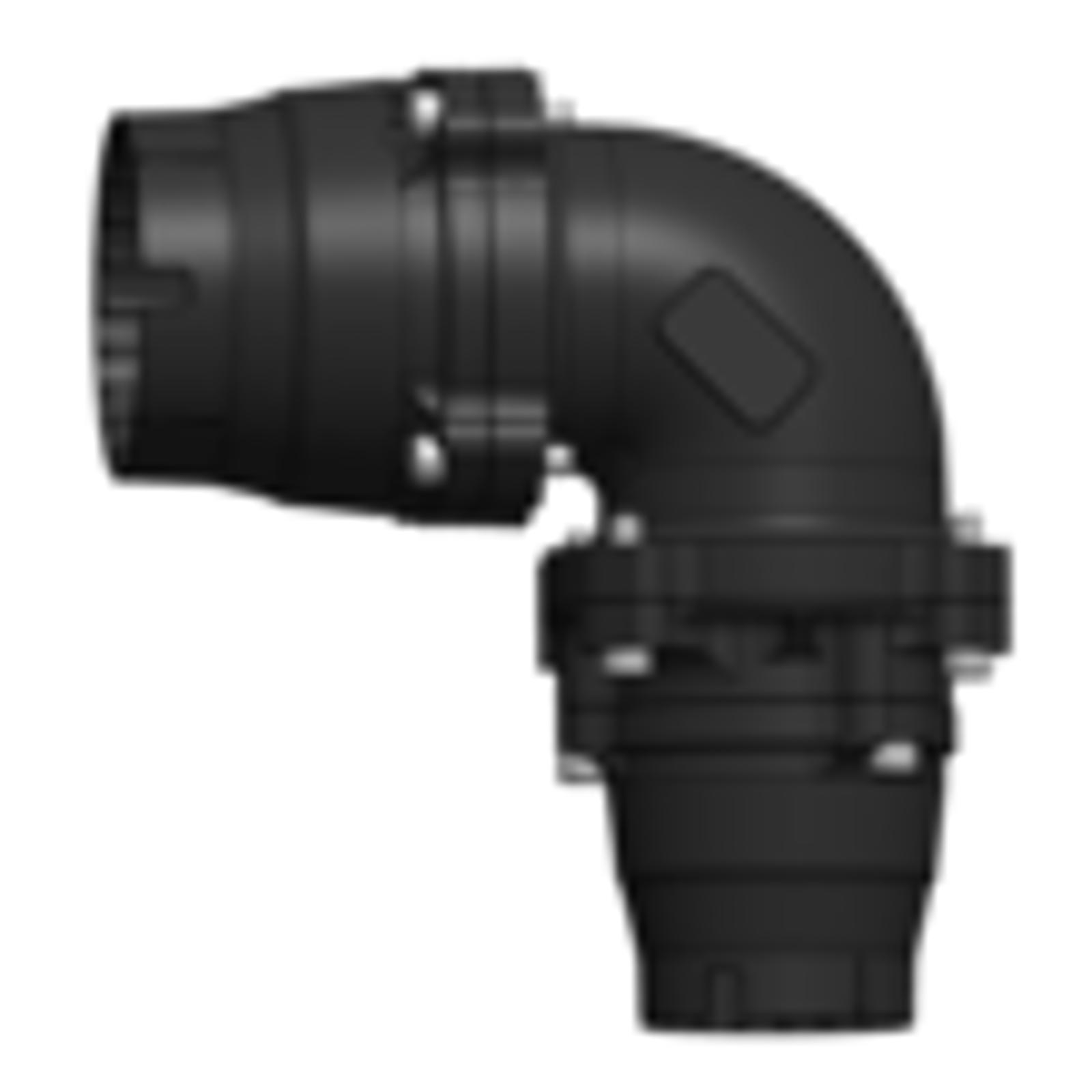

| REDUCING 90° ELBOW | ||||||
| Code | ØD1 (mm) | ØD2 (mm) | ØD2 (mm) | ØG2 (mm) | L1 (mm) | L2 (mm) |
| 09B.ELBR.080.040 | 80 | 40 | 140 | 105 | 191,5 | 196,5 |
| 09B.ELBR.080.063 | 80 | 63* | 140 | 105 | 191,5 | 197 |
| 09B.ELBR.110.040 | 110 | 40 | 176 | 140 | 212,5 | 233,5 |
| 09B.ELBR.110.063 | 110 | 63* | 176 | 140 | 212,5 | 233,5 |
| 09B.ELBR.110.080 | 110 | 80 | 176 | 140 | 212,5 | 212,5 |
| 09B.ELBR.160.110 | 158 | 110 | 235 | 176 | 278 | 286,5 |

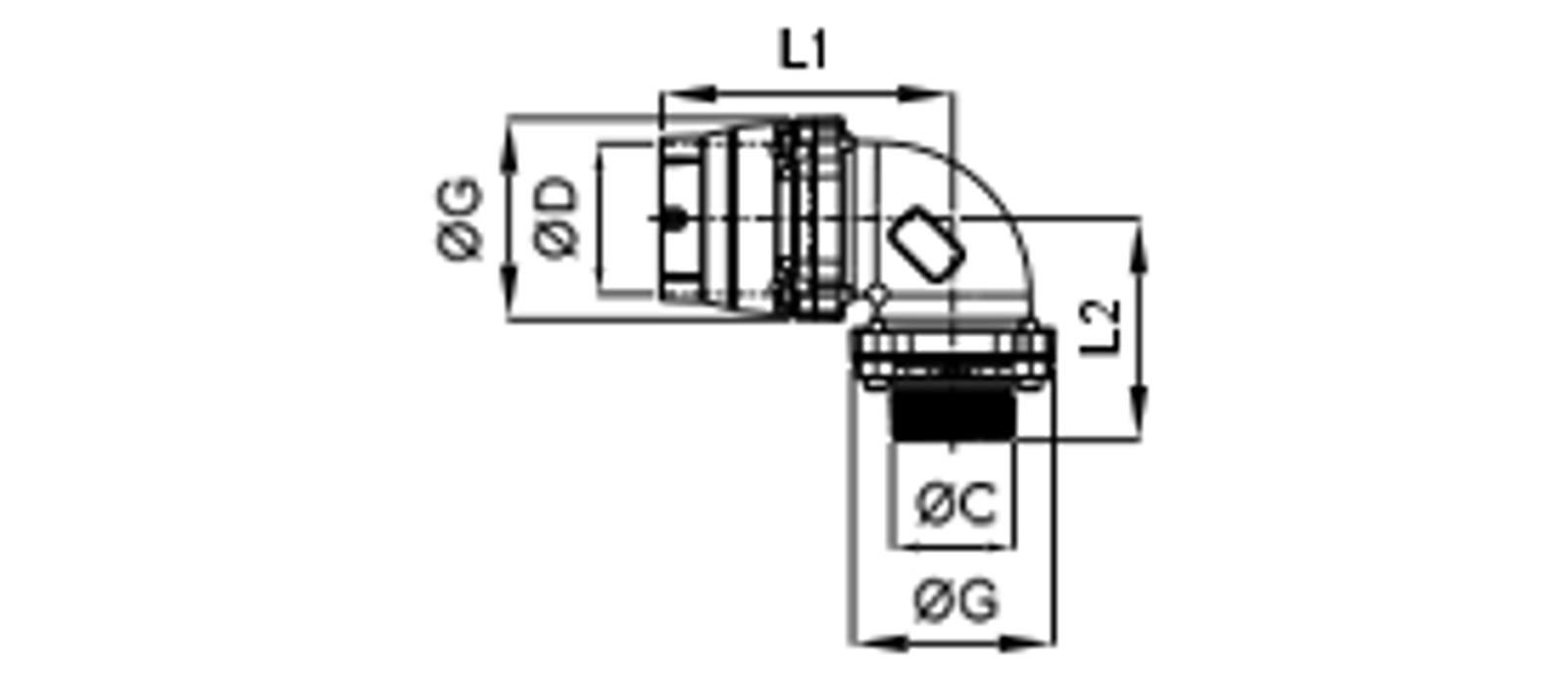

| MALE THREAD 90° ELBOW | ||||||
| Code | ØD (mm) | ØC (BSP) | ØG (mm) | L1 (mm) | L2 (mm) | |
| 09B.ELBT.080.G12 | 80 | 3" | 140 | 191,5 | 151 | |
| 09B.ELBT.110.G12 | 110 | 3" | 176 | 212,5 | 161 | |
| 09B.ELBT.160.G12 | 158 | 3" | 235 | 278 | 210 | |
