Prises

Compressed air tubes fittings and valves sockets product image 1 on white background| piping system | OMICompressed air tubes fittings and valves sockets product image 2 on white background| piping system | OMICompressed air tubes fittings and valves sockets product image 3 on white background| piping system | OMICompressed air tubes fittings and valves sockets product image 4 on white background| piping system | OMICompressed air tubes fittings and valves sockets product image 5 on white background| piping system | OMICompressed air tubes fittings and valves sockets product image 6 on white background| piping system | OMI
Compressed air tubes fittings and valves sockets product image 1 on white background| piping system | OMI
Compressed air tubes fittings and valves sockets product image 2 on white background| piping system | OMI
Compressed air tubes fittings and valves sockets product image 3 on white background| piping system | OMI
Compressed air tubes fittings and valves sockets product image 4 on white background| piping system | OMI
Compressed air tubes fittings and valves sockets product image 5 on white background| piping system | OMI
Compressed air tubes fittings and valves sockets product image 6 on white background| piping system | OMI
Nous contacterDemande de devisDemander un service, des pièces ou une assistance

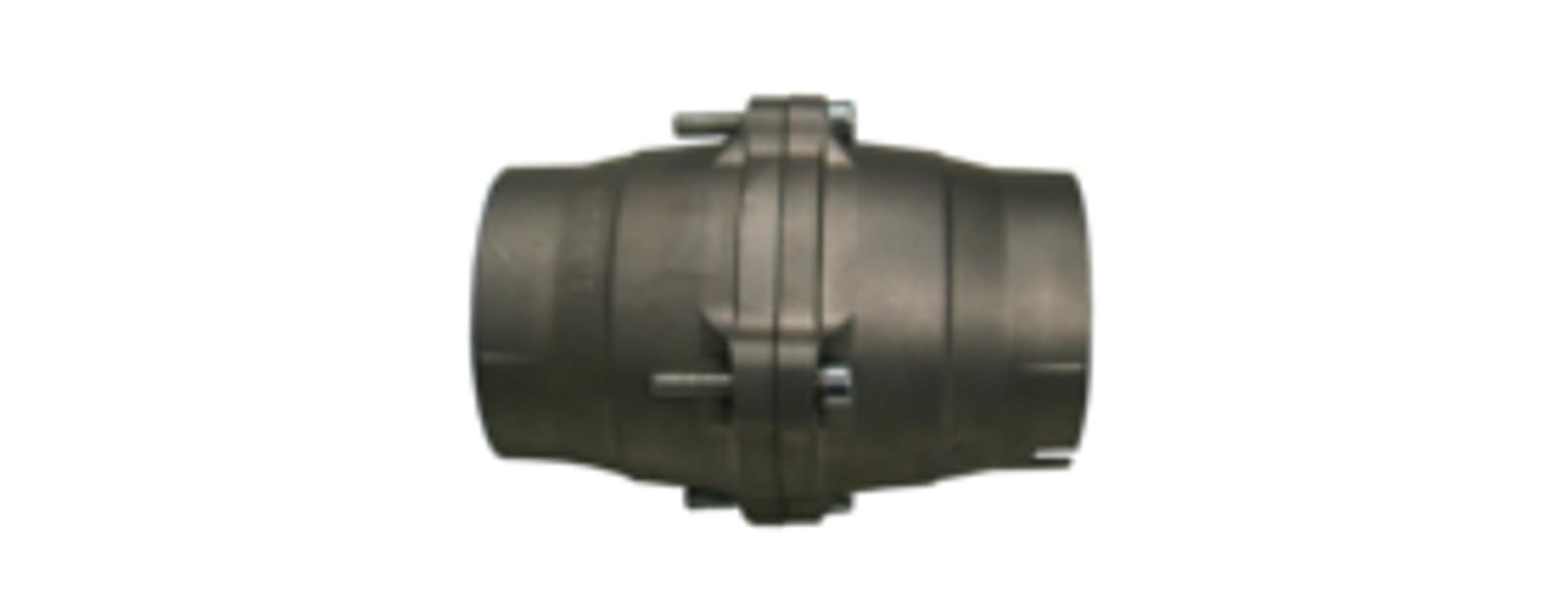

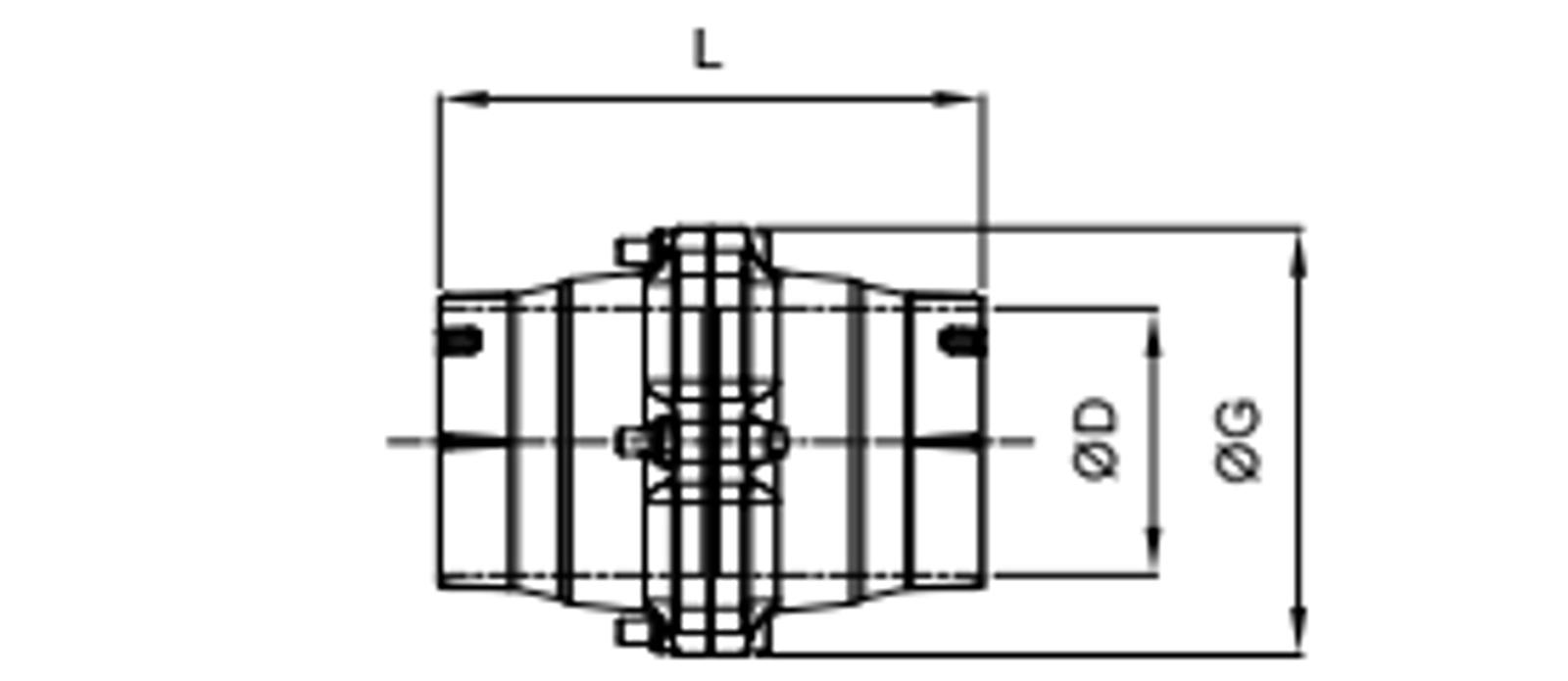

SOCKET
CodeØD (mm)ØG (mm)L (mm)
09P.COND.0202043113
09P.COND.0252651126
09P.COND.0323261140
09P.COND.0404075168
09P.COND.06363*105187
09P.COND.08080**140203
09P.COND.110110**176224
09P.COND.160158**235274
SOCKET D'UNION
CodeØD (mm)ØG (mm)L (mm)
09P.CONC.0202043113
09P.CONC.0252551126
09P.CONC.0323261140
09P.CONC.0404075168
09P.CONC.06363*105187

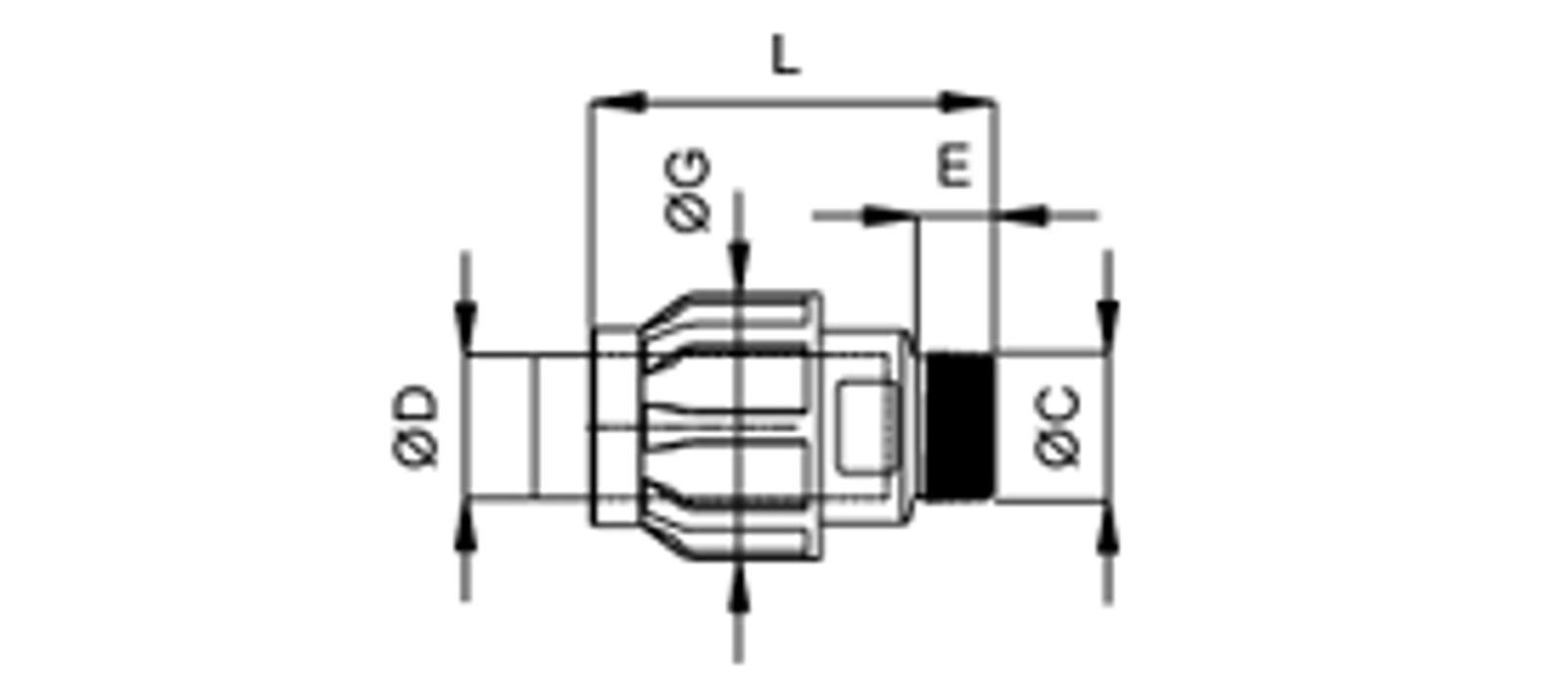

SOCHETTE MALE
CodeØD (mm)ØC (BSP)E (mm)ØG (mm)L (mm)
09P.CONM.020.G0420½"164362
09P.CONM.020.G0520¾"174363
09P.CONM.025.G0425½"165168
09P.CONM.025.G0525¾"175169
09P.CONM.025.G06251"205172
09P.CONM.032.G06321"206175
09P.CONM.032.G07321"¼236178
09P.CONM.040.G06401"207584
09P.CONM.040.G07401"¼237587
09P.CONM.040.G08401"½2075115
09P.CONM.063.G0863*1"½20105124
09P.CONM.063.G1063*2"27105135

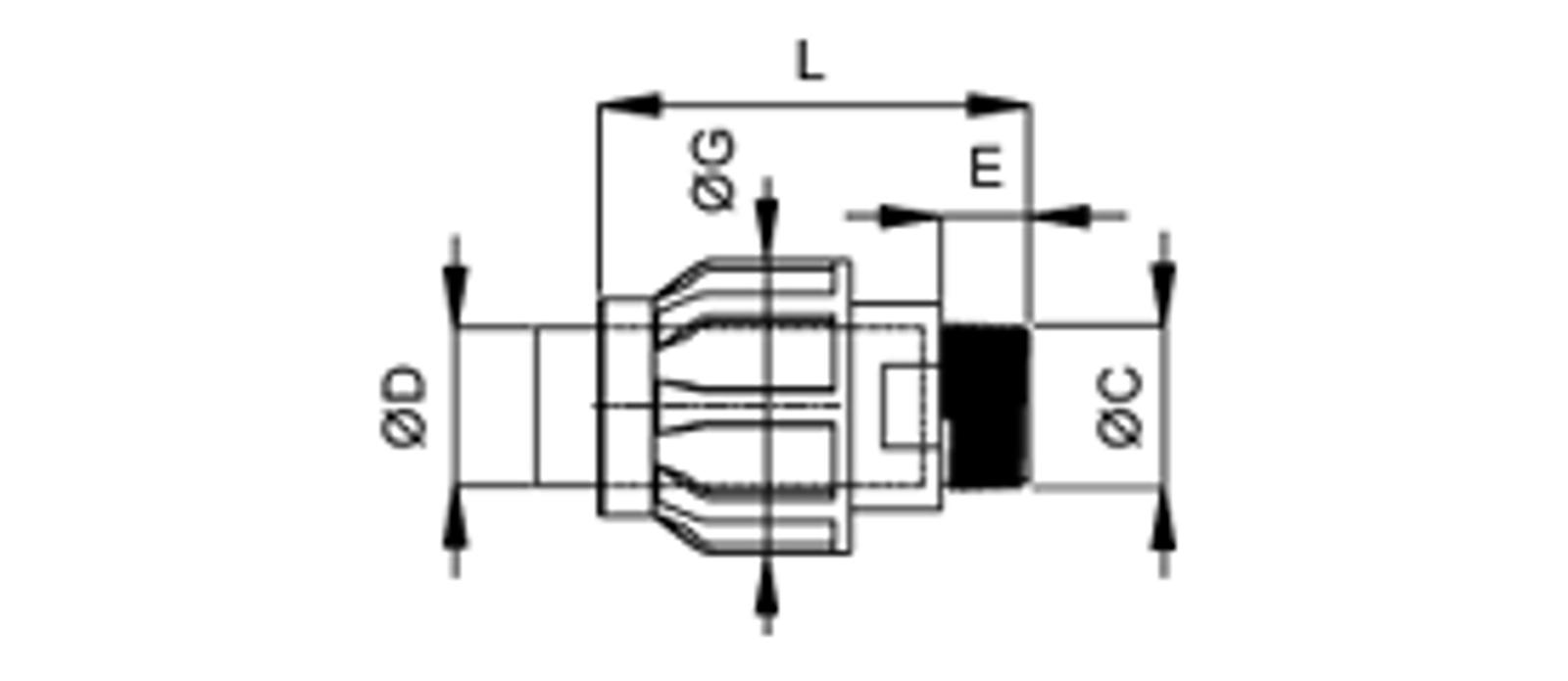

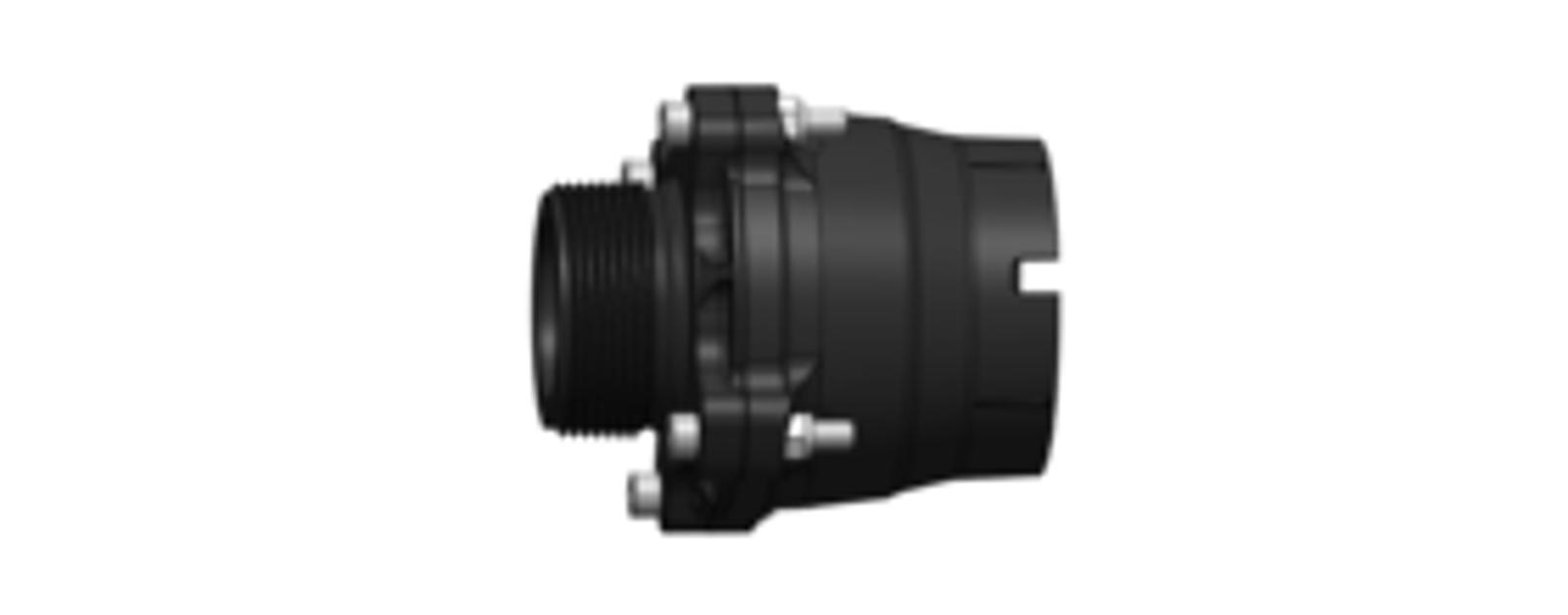

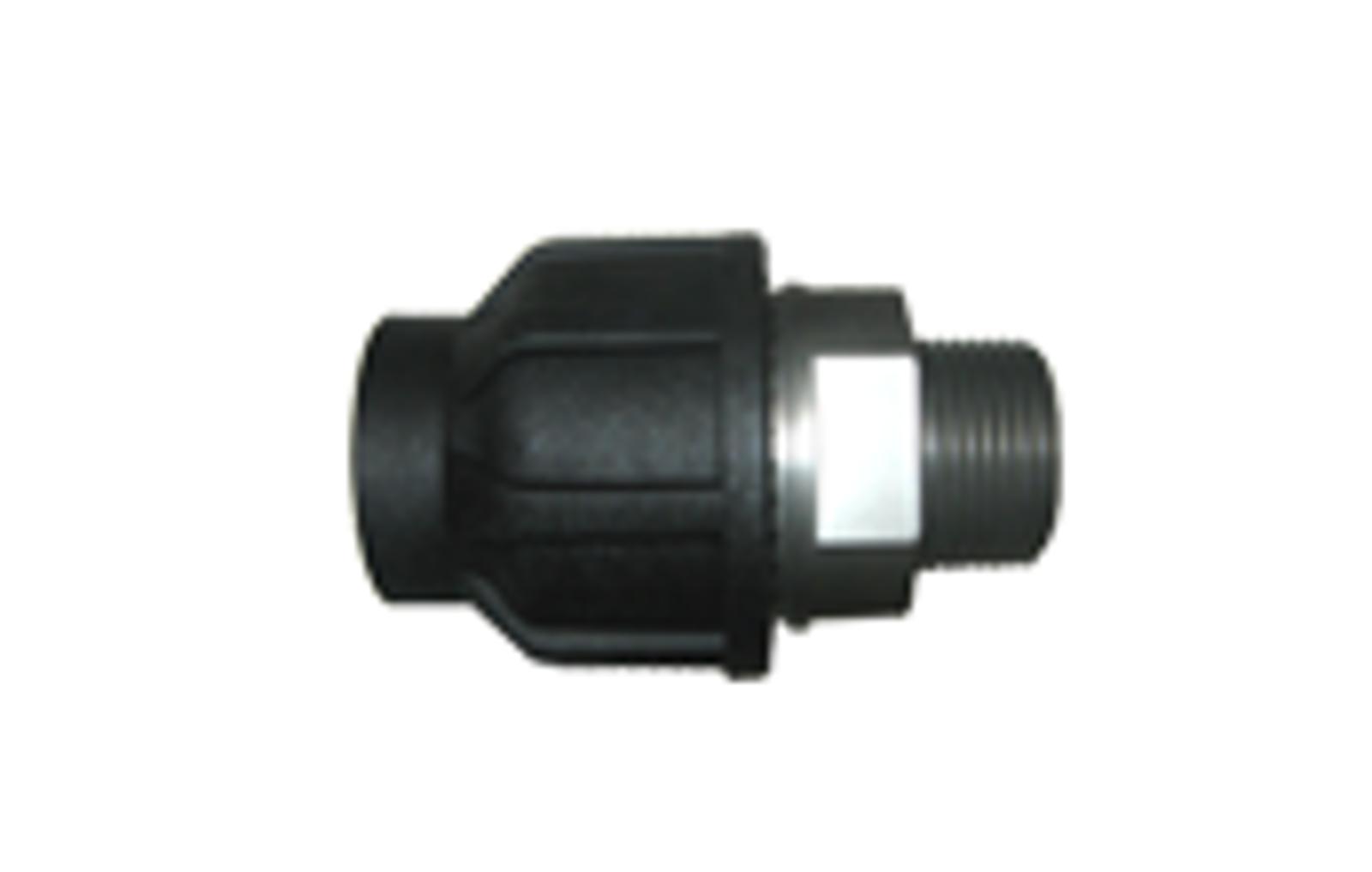

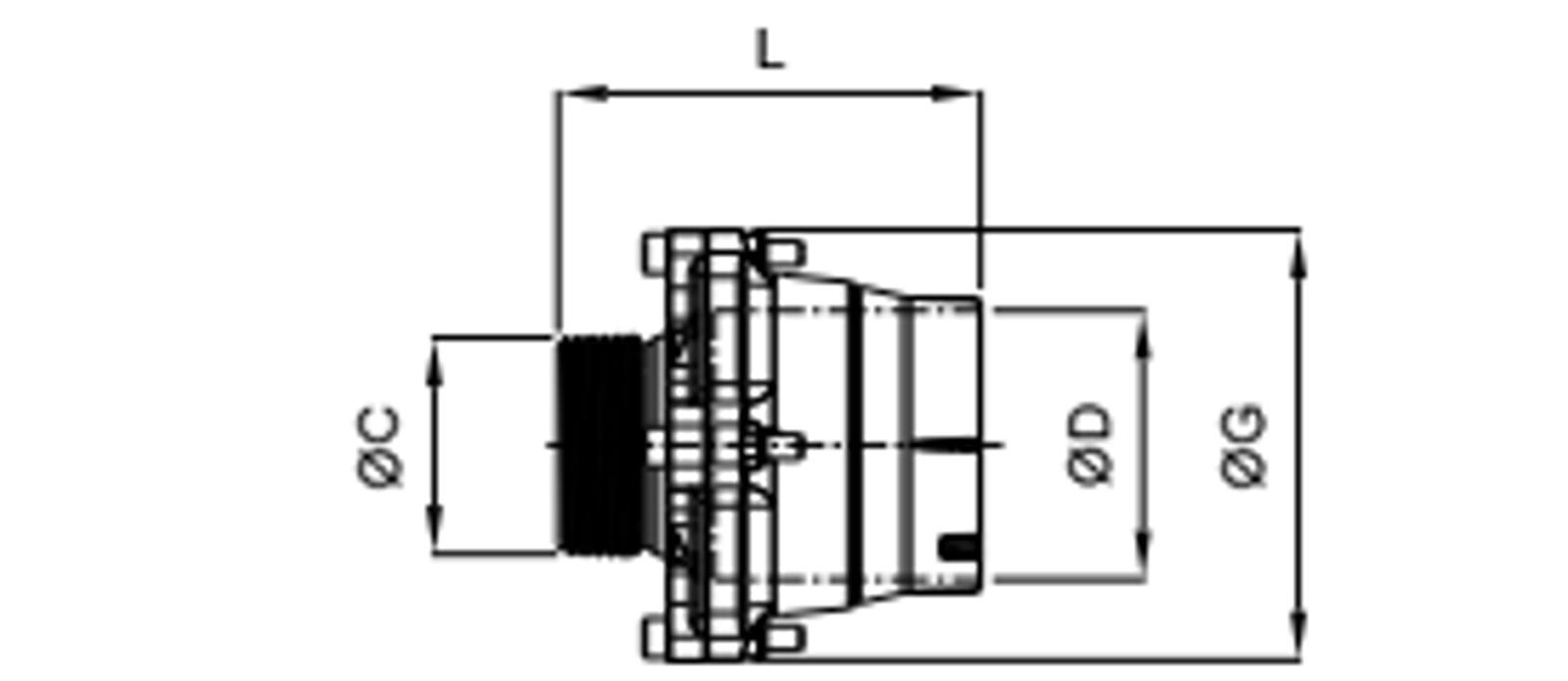

DOUILLE MÂLE ALUMINIUM
CodeØD (mm)ØC (BSP)E (mm)ØG (mm)L (mm)
09B.CONM.020.G0420½"164379
09B.CONM.025.G0525¾"175182
09B.CONM.032.G06321"206194
09B.CONM.040.G07401"¼2375108
09B.CONM.063.G10632"27105120
09B.CONM.080.G12803"-140163
09B.CONM.110.G121103"-176173
09B.CONM.160.G121583"-235206

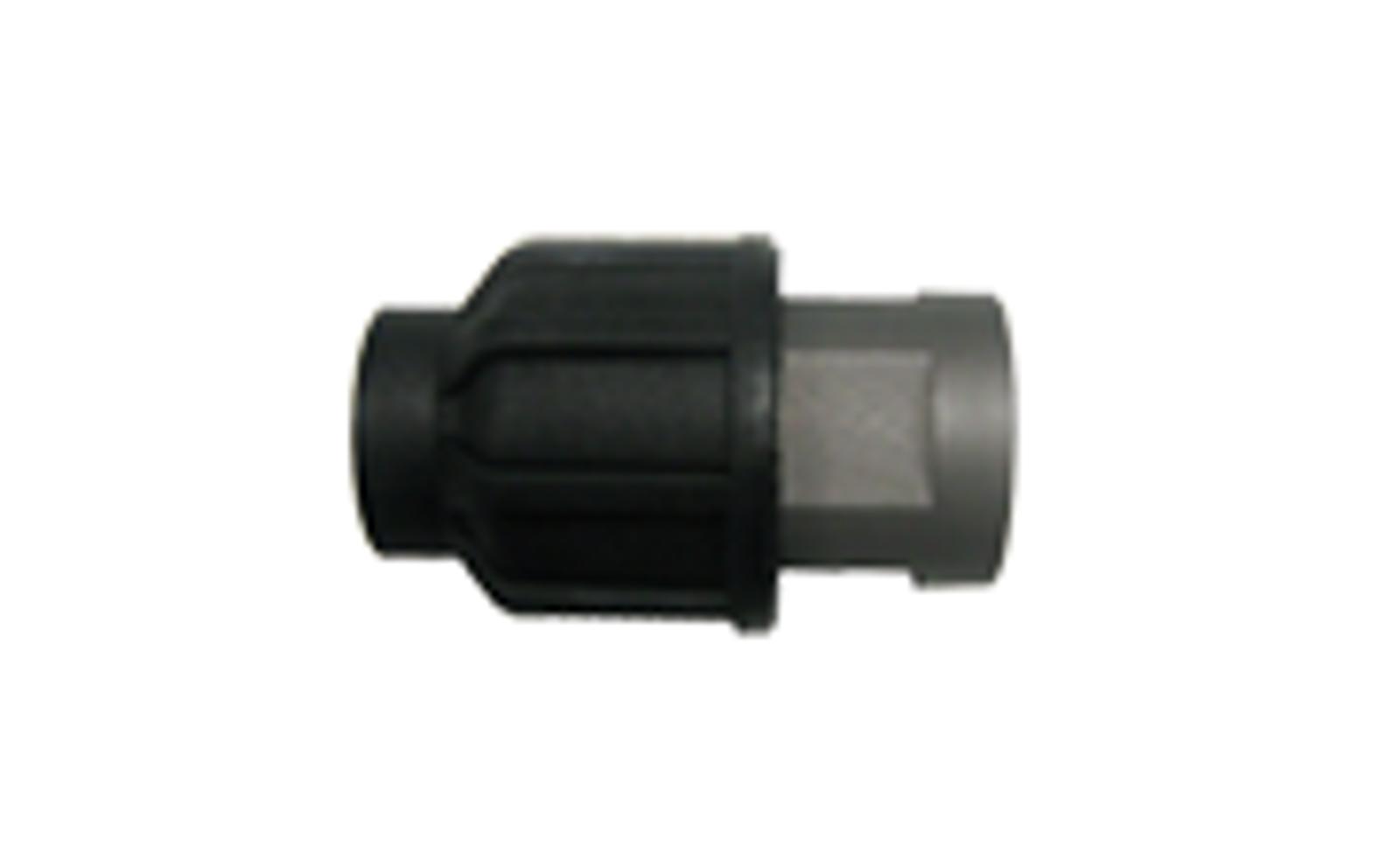

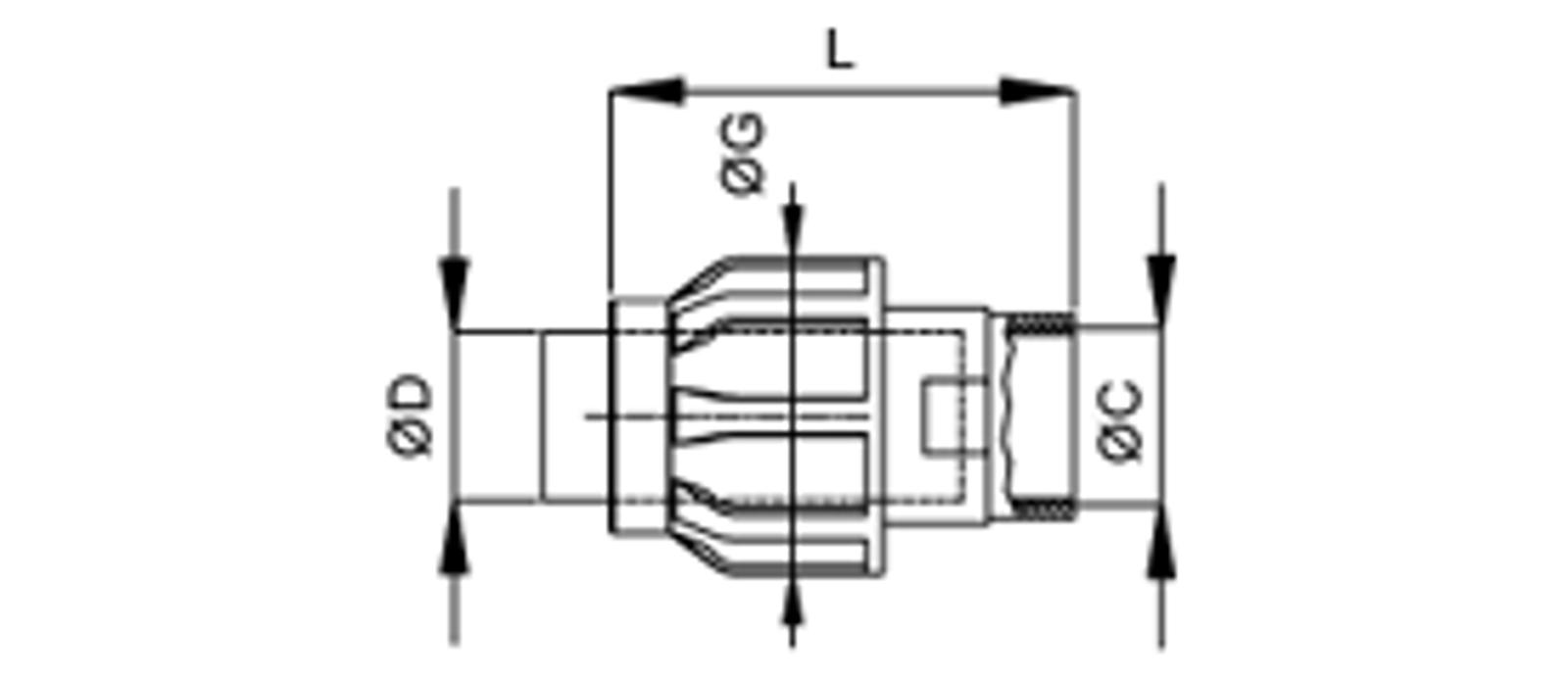

DOUILLE FEMELLE ALUMINIUM
CodeØD (mm) ØC (BSP)ØG (mm)L (mm)
09B.CONF.020.G0420½"4375
09B.CONF.025.G0525¾"5179
09B.CONF.032.G06321"6191
09B.CONF.040.G07401"¼75107
09B.CONF.063.G10632"105120
