Coudes à appui mural

Compressed air tubes fittings and valves wall bearing elbows product image 1 on white background| piping system | OMICompressed air tubes fittings and valves wall bearing elbows product image 2 on white background| piping system | OMICompressed air tubes fittings and valves wall bearing elbows technical drawing 1| piping system | OMICompressed air tubes fittings and valves wall bearing elbows technical drawing 2| piping system | OMICompressed air tubes fittings and valves wall bearing elbows technical drawing 3| piping system | OMI
Compressed air tubes fittings and valves wall bearing elbows product image 1 on white background| piping system | OMI
Compressed air tubes fittings and valves wall bearing elbows product image 2 on white background| piping system | OMI
Compressed air tubes fittings and valves wall bearing elbows technical drawing 1| piping system | OMI
Compressed air tubes fittings and valves wall bearing elbows technical drawing 2| piping system | OMI
Compressed air tubes fittings and valves wall bearing elbows technical drawing 3| piping system | OMI
Nous contacterDemande de devisDemander un service, des pièces ou une assistance

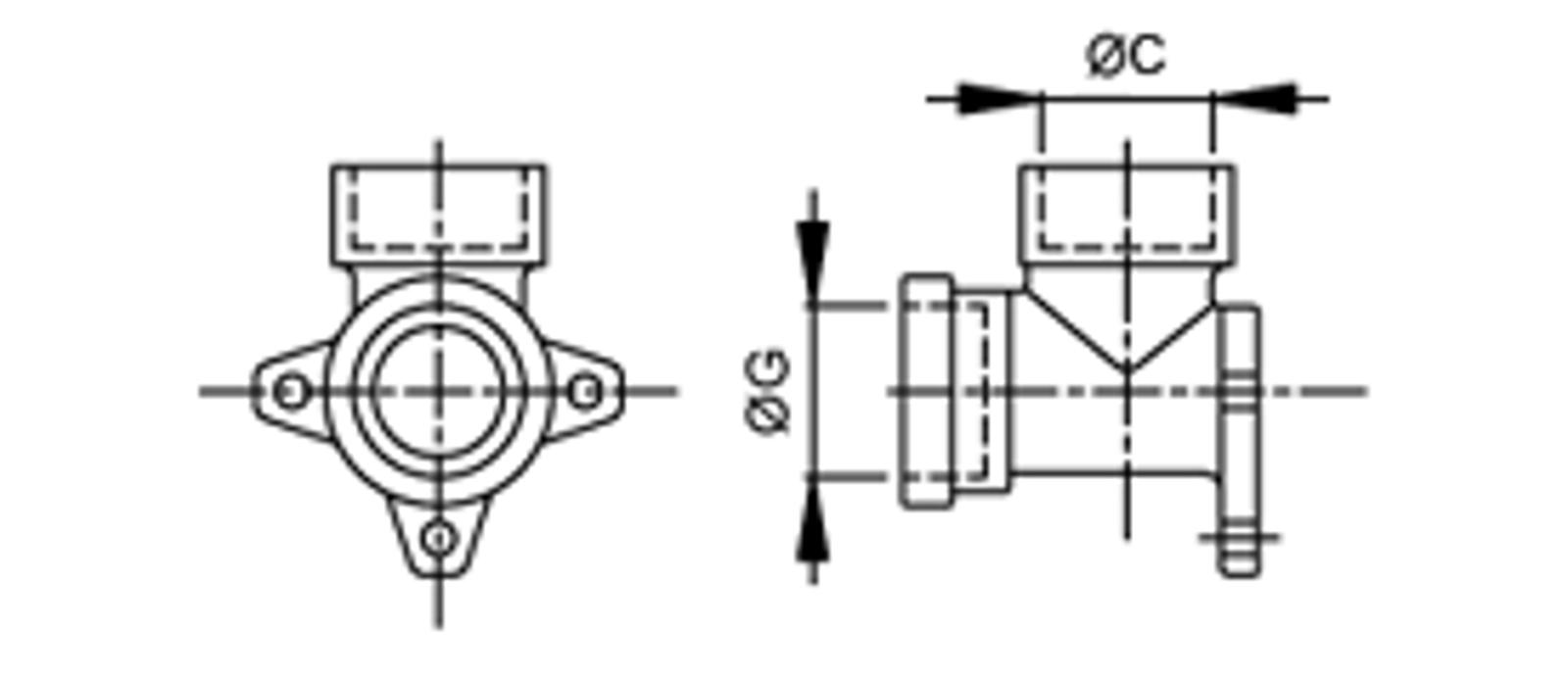

Tubes d'air comprimé raccords et vannes coudés à appui mural plan technique 5| Système de tuyauterie | OMI

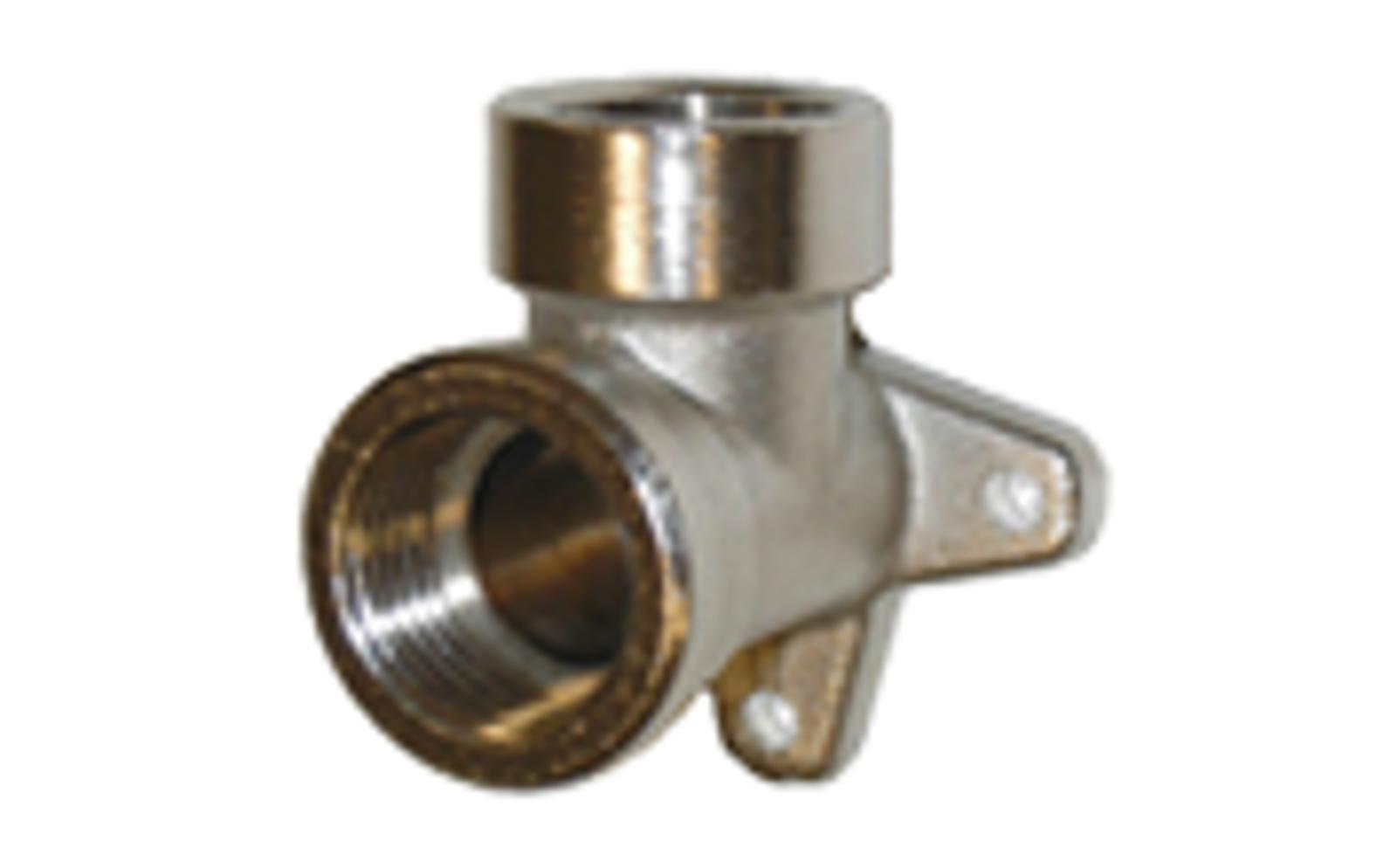

COUDE DE SUPPORT MURAL AVEC FILETAGE FEMELLE EN LAITON
CodeØG (BSP)ØC (BSP)
09B.ELBF.G04.G04½"½"

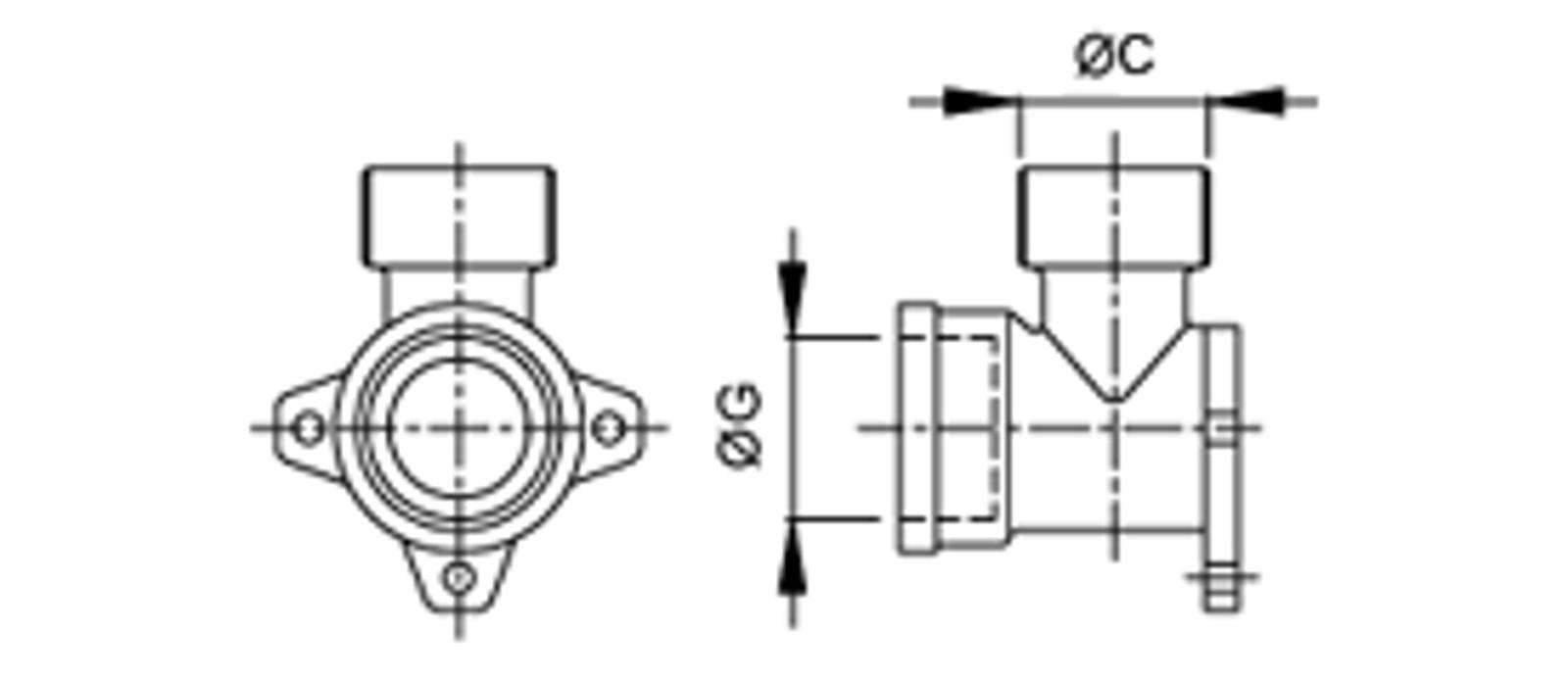

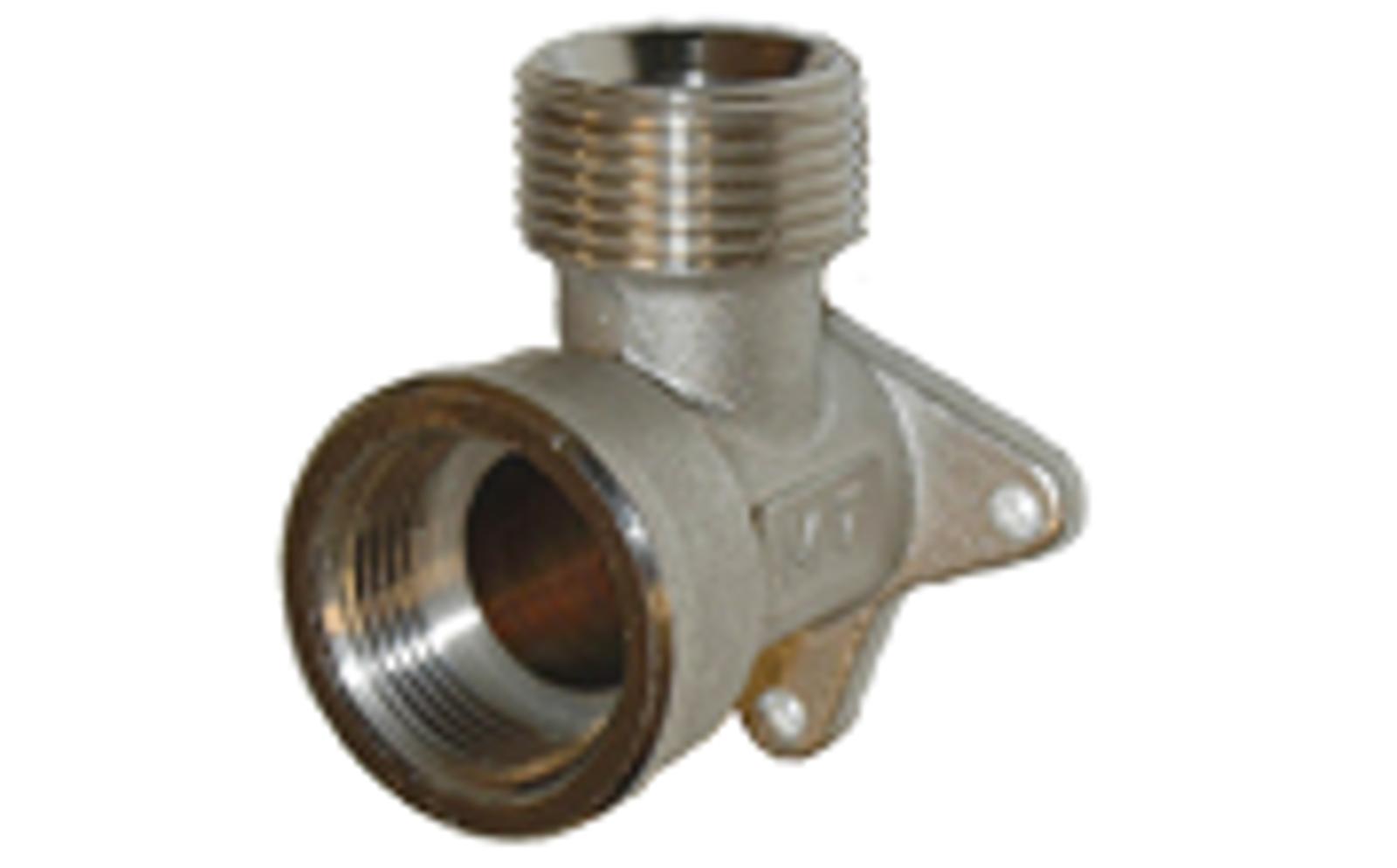

COUDE D'APPUI MURAL AVEC FILETAGE MÂLE/FEMELLE EN LAITON
CodeØG (BSP)ØC (BSP)
09B.ELBM.G04.G04½"½"
09B.ELBM.G05.G05¾"¾"
