- Multi-layer Filtration: Condensate passes through multiple stages, including advanced adsorption media and carbon polishing, to remove contaminants effectively.
- Consistently Low Oil Residue: Discharge remains below 5 ppm of oil content, aligning with strict environmental standards.
- Recycled Housing: Durable yet eco-friendly construction underscores OMI’s commitment to sustainable solutions.

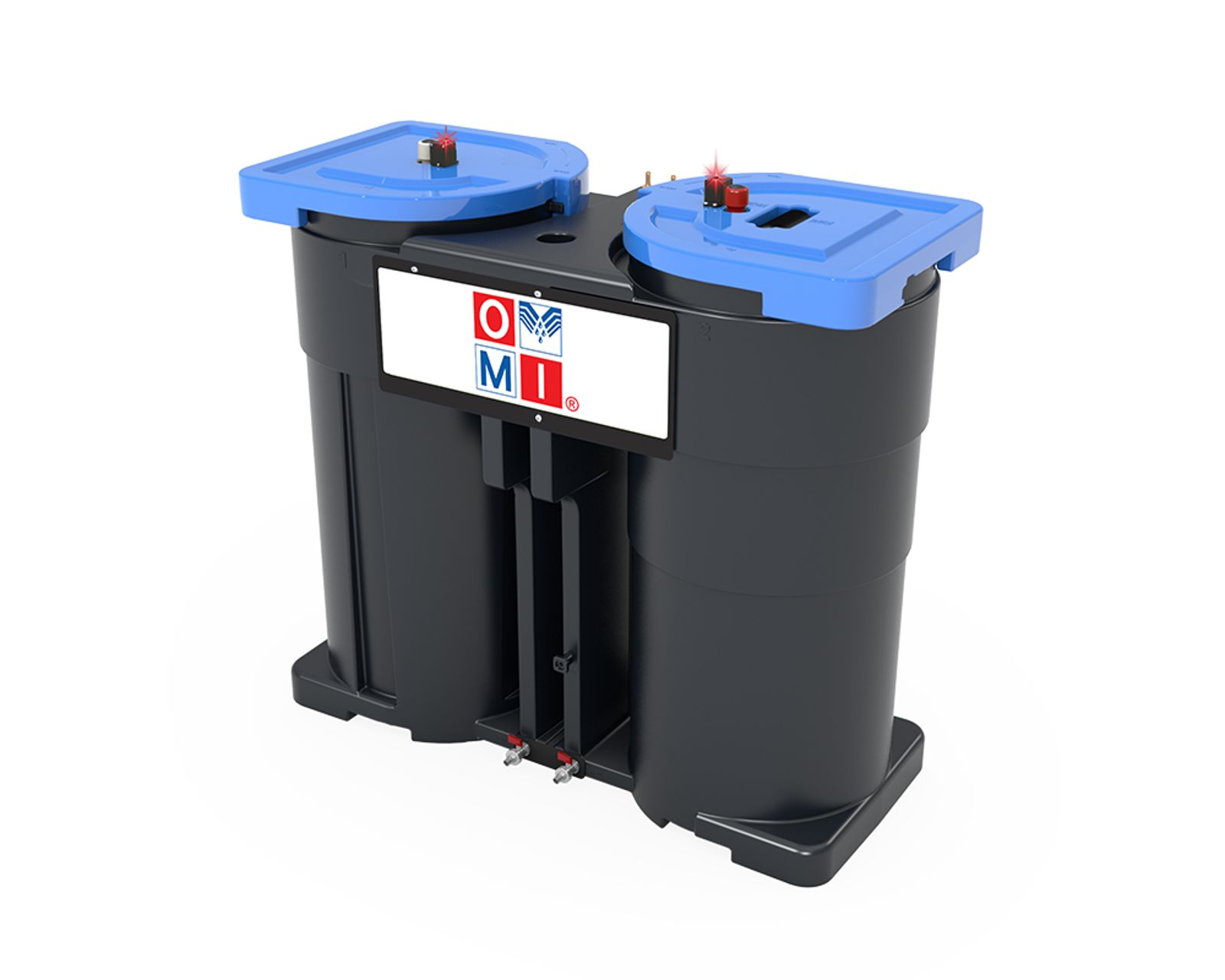

- Service & Overflow Indicators: Built-in flashing lights or optional sensors notify you before a filter reaches saturation or if an overflow risk arises.
- Broad Lubricant Compatibility: From mineral to synthetic (including polyglycol-based fluids), OMI Ecoplus units excel in diverse operating conditions.
- Small Footprint: Compact form factors and flexible inlet/outlet connections simplify integration in existing systems. Compact Modular Design
The OMI Ecoplus Oil Water Separators combine cutting-edge multi-stage filtration with a planet-friendly design, all under one comprehensive product range. Covering flow capacities from 2 m³/min up to 60 m³/min, these separators help you meet strict disposal regulations while maximizing operational efficiency.
OMI Ecoplus separators use advanced oil-adsorption technology and carefully selected activated carbon to bring residual oil content down to below 5 ppm. Each model is designed with both performance and the environment in mind. Housings are manufactured from high-grade recycled materials, aligning with modern sustainability goals. Add in simplified maintenance steps—such as quick-test valves, overflow indicators, and optional monitoring sensors—and you’ll find OMI Ecoplus is a reliable, eco-forward choice for any compressed air setup.

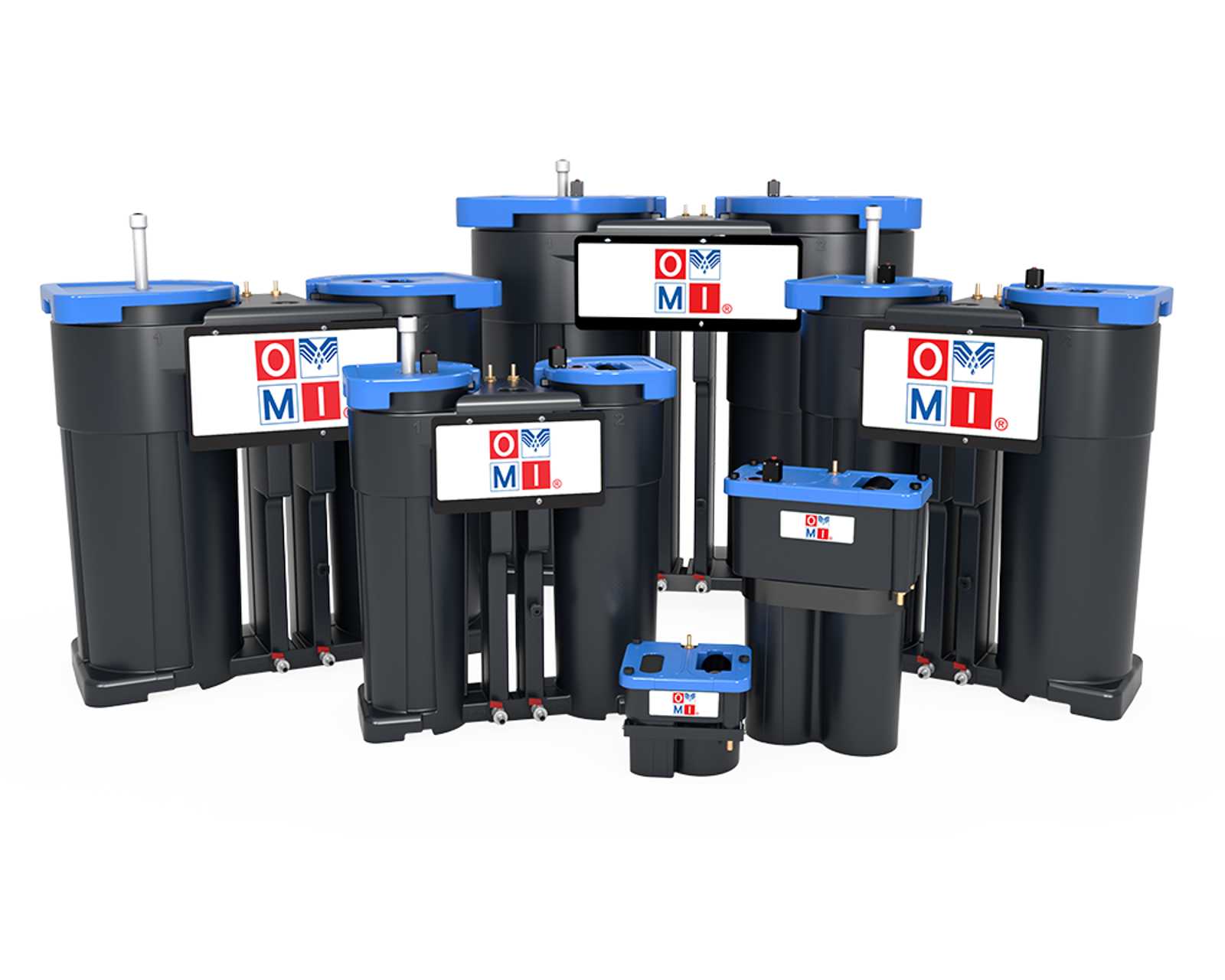

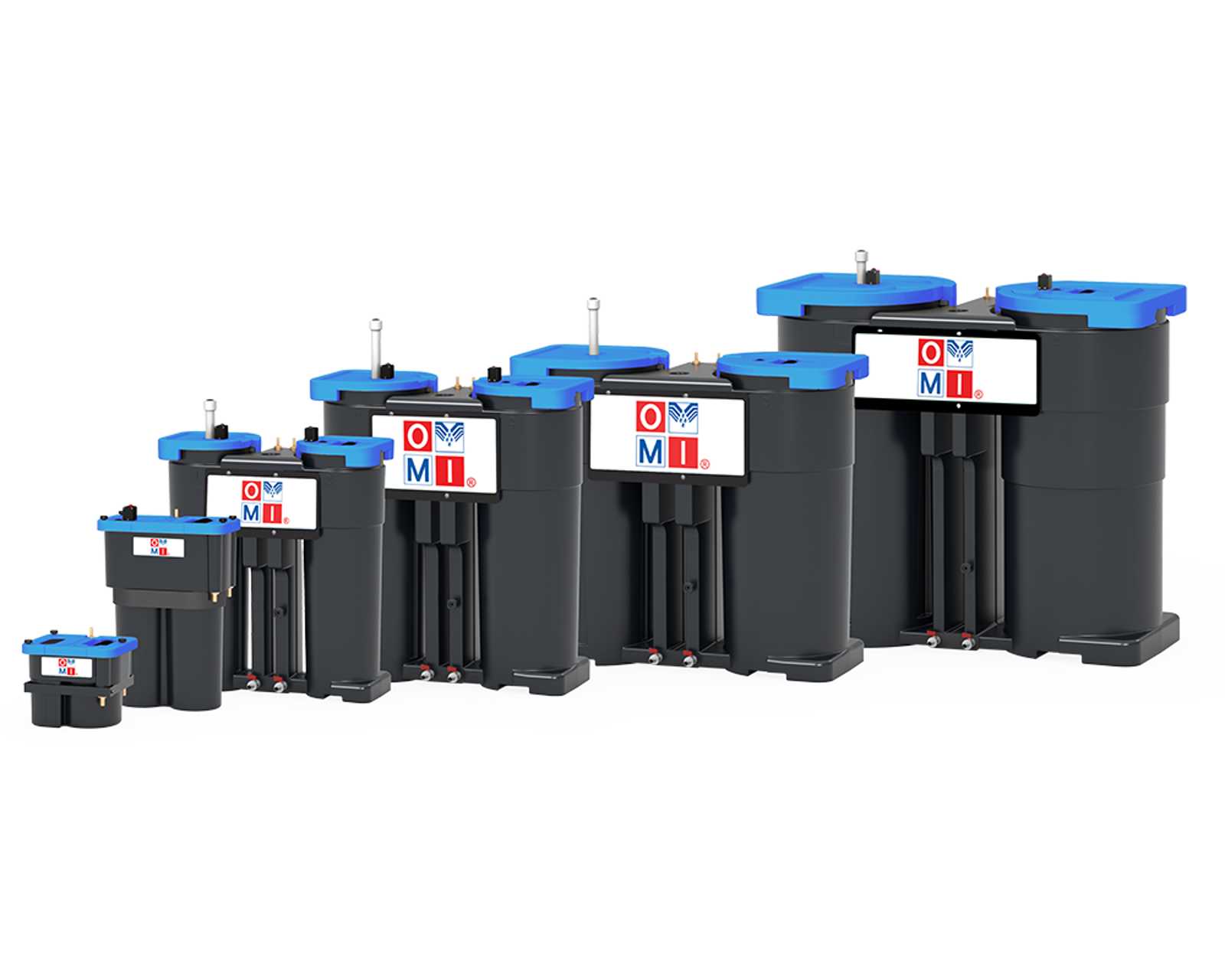

- One-Stop Range: From the compact Ecoplus 2 up to the larger Ecoplus 60, these solutions cover a wide spectrum of flow capacities.
- Reliable Compliance: Achieve oil content below 5 ppm for cleaner wastewater discharge, easing concerns about regulatory fines or shutdowns.
- Green Construction: Recycled plastic housings reduce environmental impact without compromising on durability or performance.
- User-Centric Maintenance: Service indicators, sample bottles, and optional sensors make routine checks both fast and transparent.
1/2" (14mm)
Model | Max compressor capacity | Max oil absorption volume | Filter elements | Activated carbon elements | Inlet connection | Outlet connection | Oil residue | DIBt certification | Housing material | Housing color | Cover color |
|---|---|---|---|---|---|---|---|---|---|---|---|

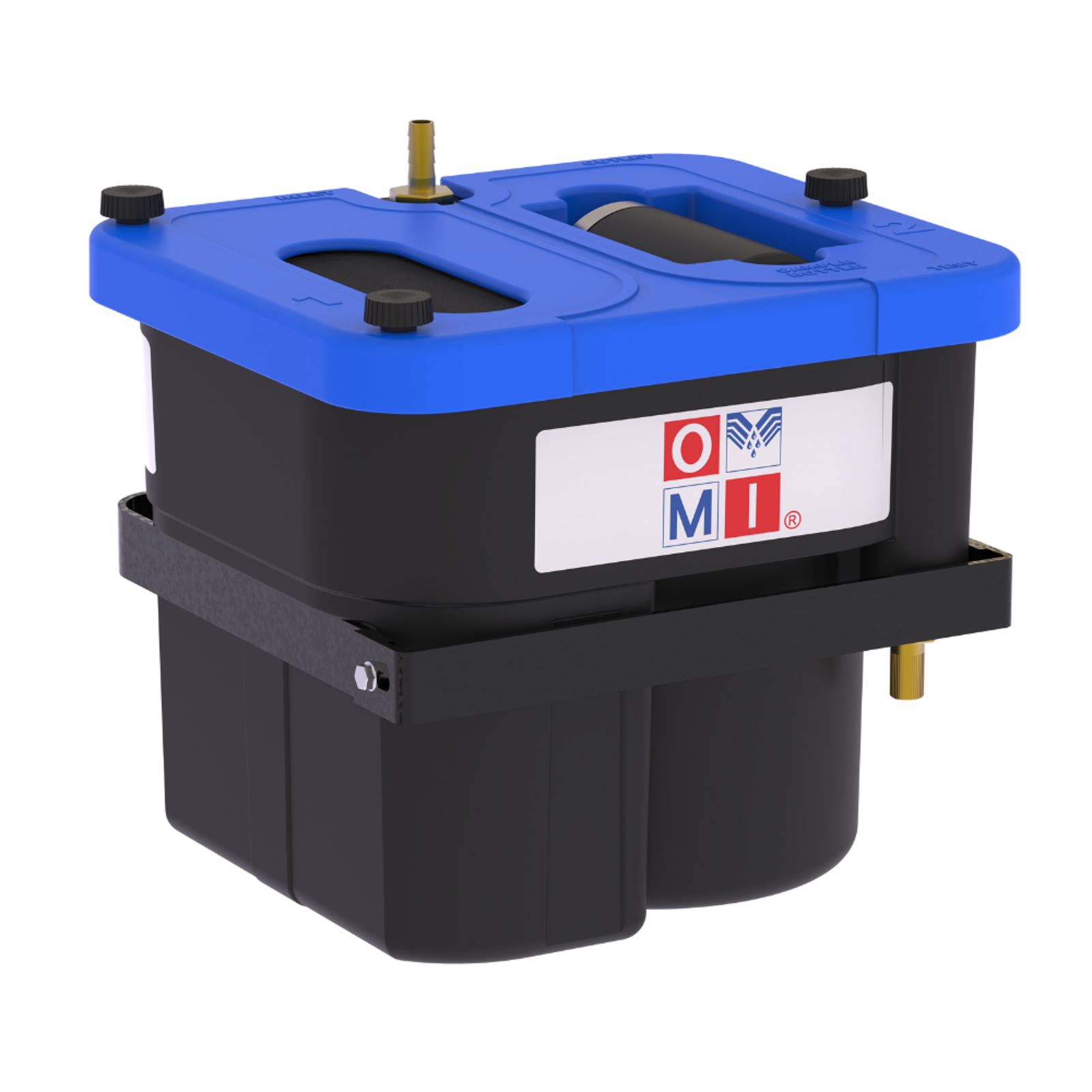

Ecoplus 20 | 2 m³/min (70 CFM) | 2 liters | 1 | 1 | 1/2" (10mm) | 1/2" (14mm) | Yes | PPC | Black | Blue | |

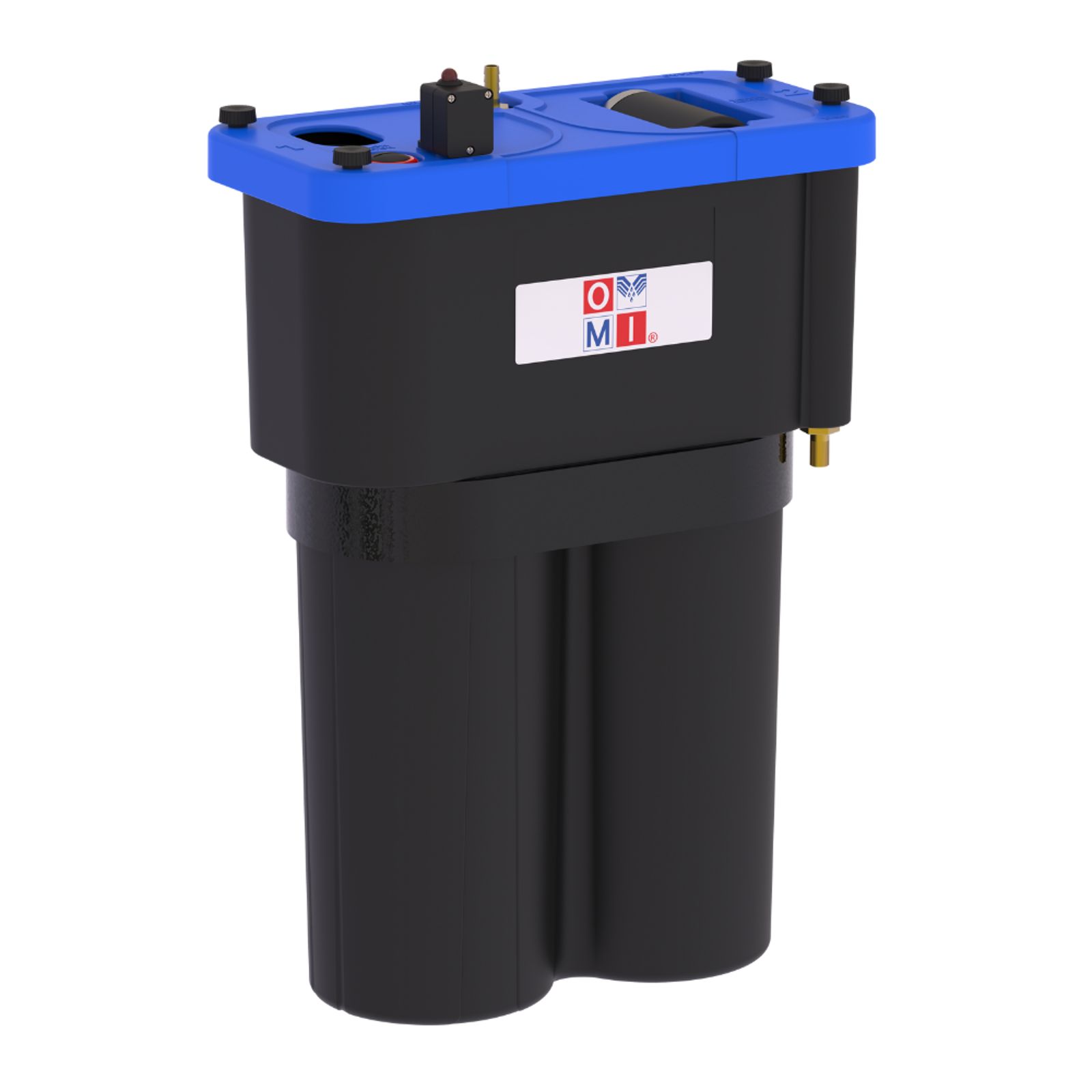

Ecoplus 45 | 4.5 m³/min (160 CFM) | 3.5 liters | 1 | 1 | 1/2" (10mm) | 1/2" (14mm) | <5 ppm | Yes | PPC | Black | Blue |

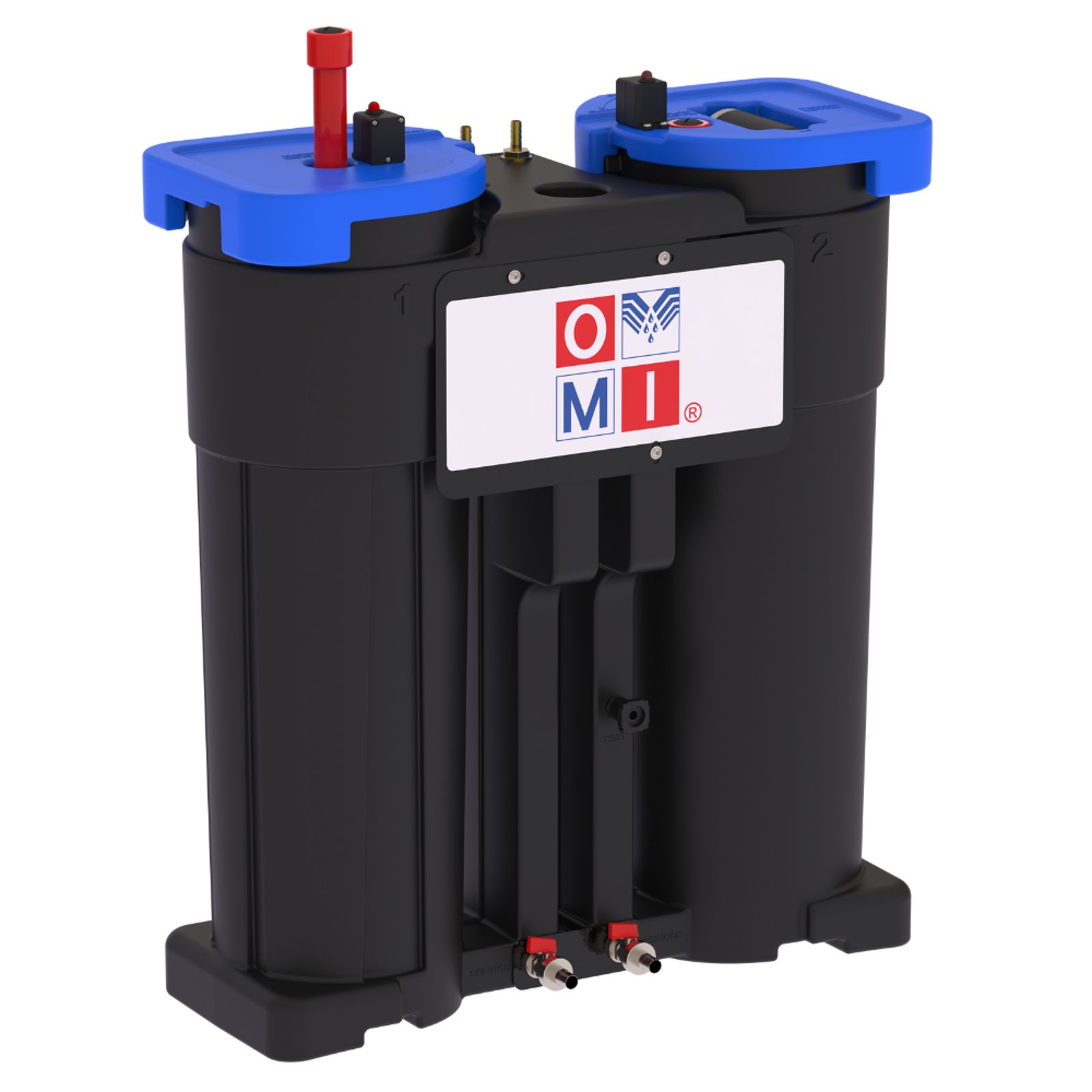

Ecoplus 100 | 10 m³/min (350 CFM) | 10 liters | 1 | 1 | 1/2" (10mm) | 1/2" (14mm) | <5 ppm | Yes | PE | Black | Blue |

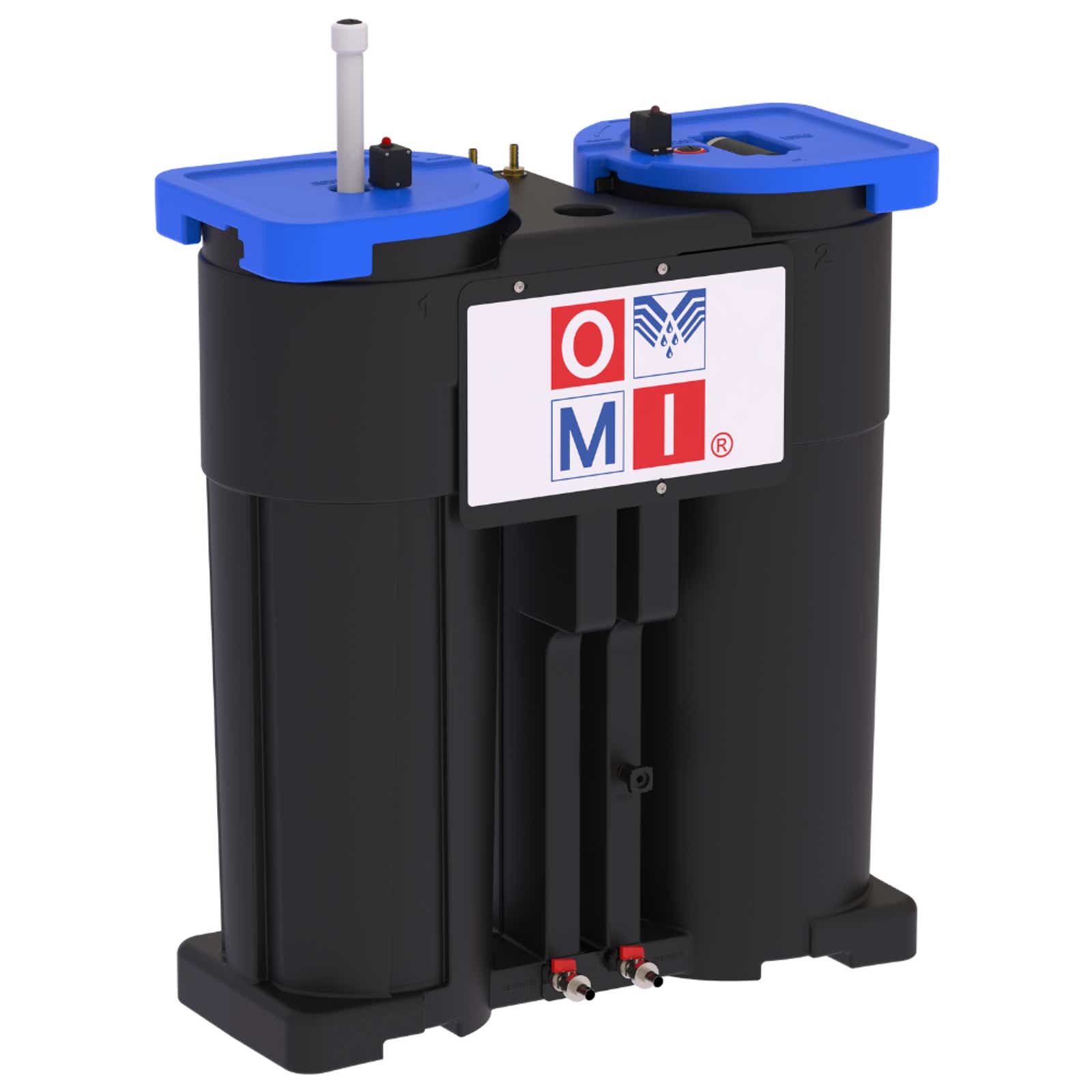

Ecoplus 200 | 20 m³/min (750 CFM) | 15 liters | 1 | 1 | 1/2" (10mm) | 1" (26mm) | <5 ppm | Yes | PE | Black | Blue |

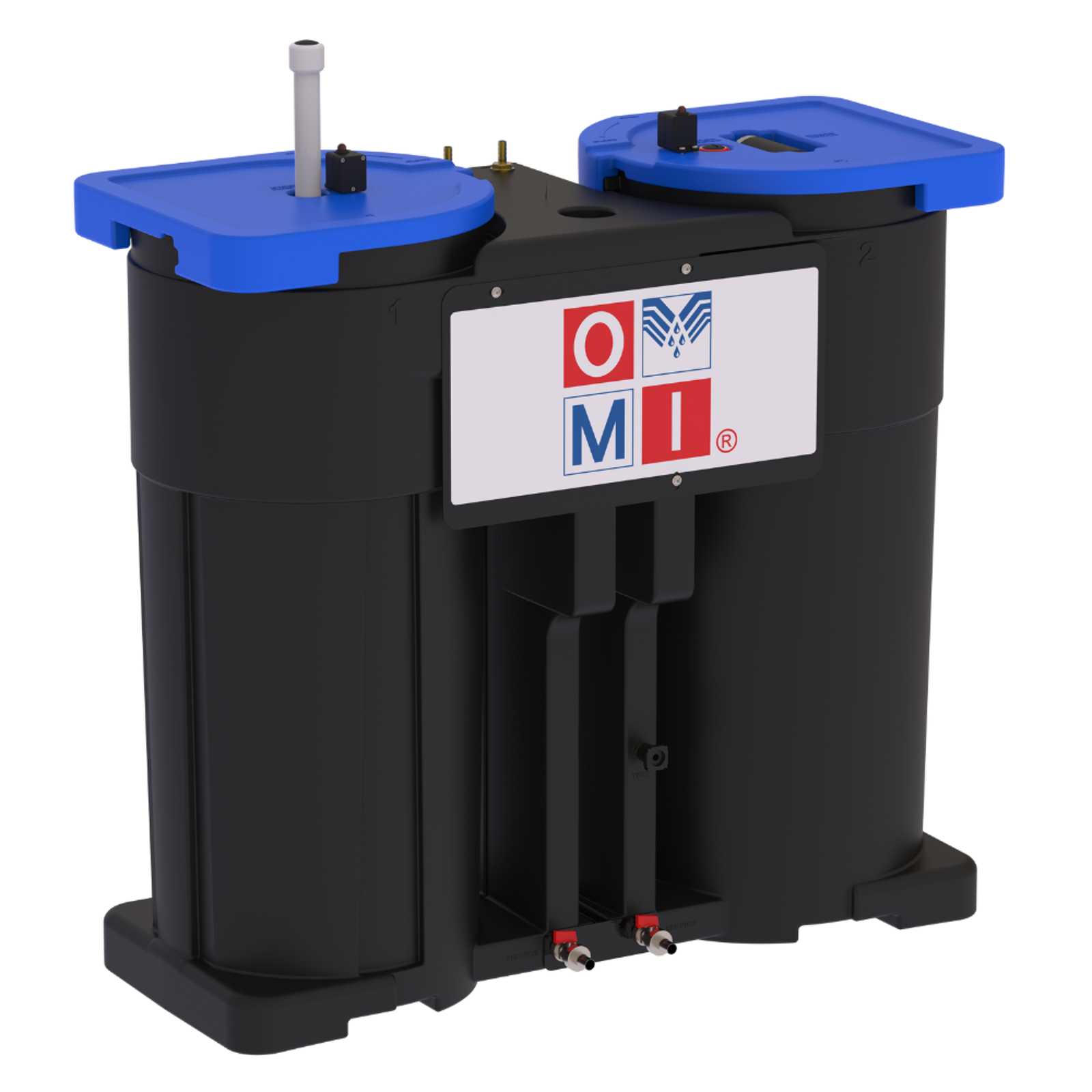

Ecoplus 300 | 30 m³/min (1250 CFM) | 25 liters | 2 | 2 | 1/2" (10mm) | 1" (26mm) | <5 ppm | Yes | PE | Black | Blue |
Ecoplus 600 | 60 m³/min (2500 CFM) | 50 liters | 2 | 2 | 1/2" (10mm) | 1" (26mm) | <5 ppm | Yes | PE | Black | Blue |
