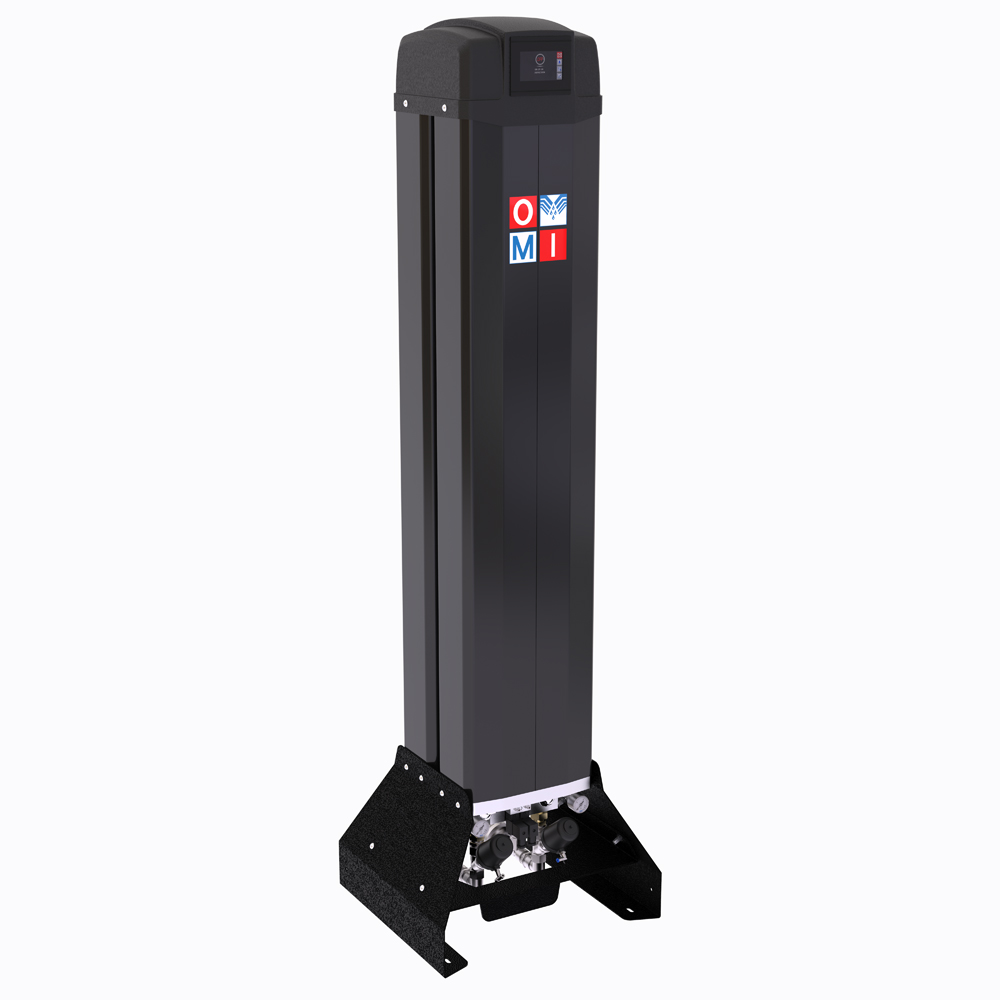

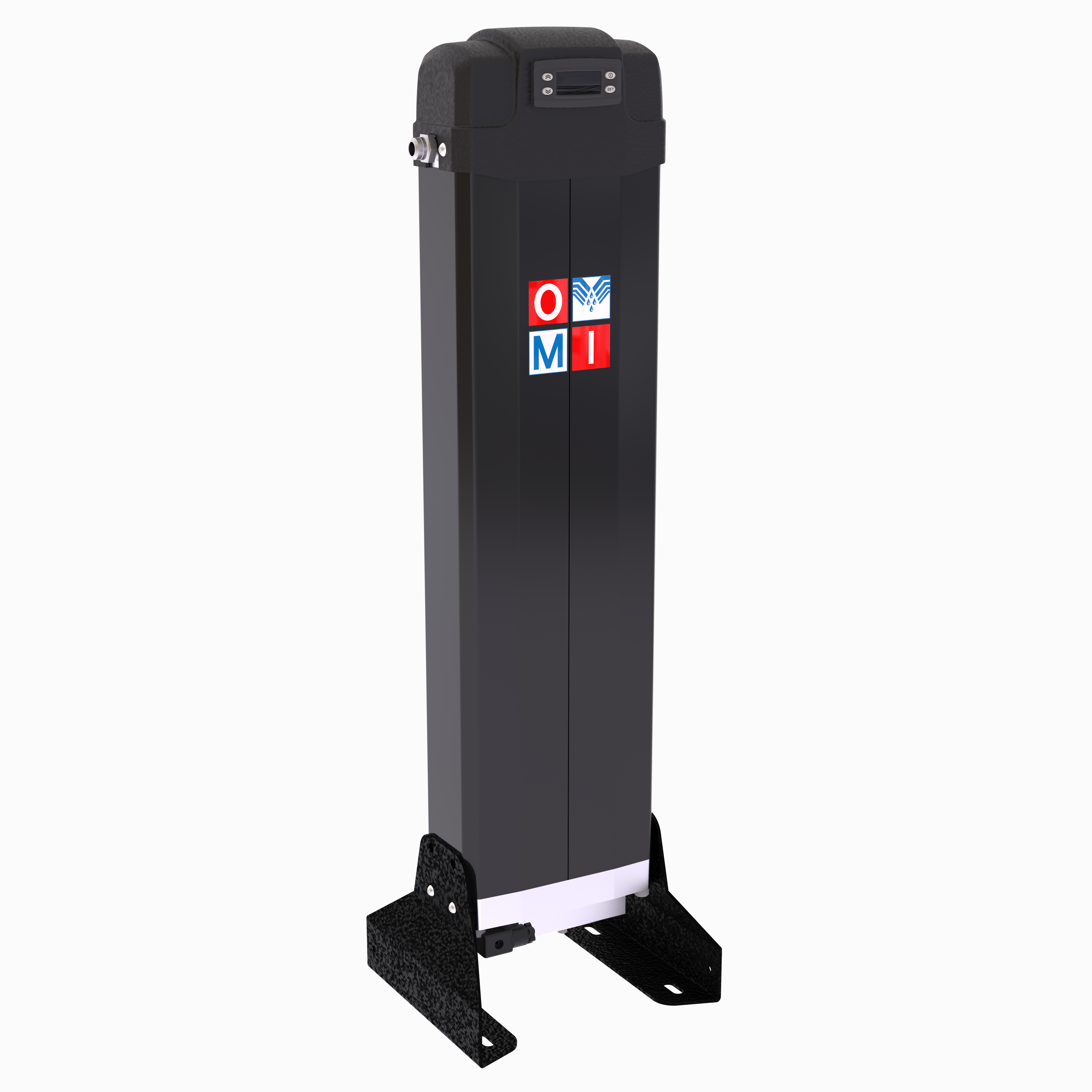

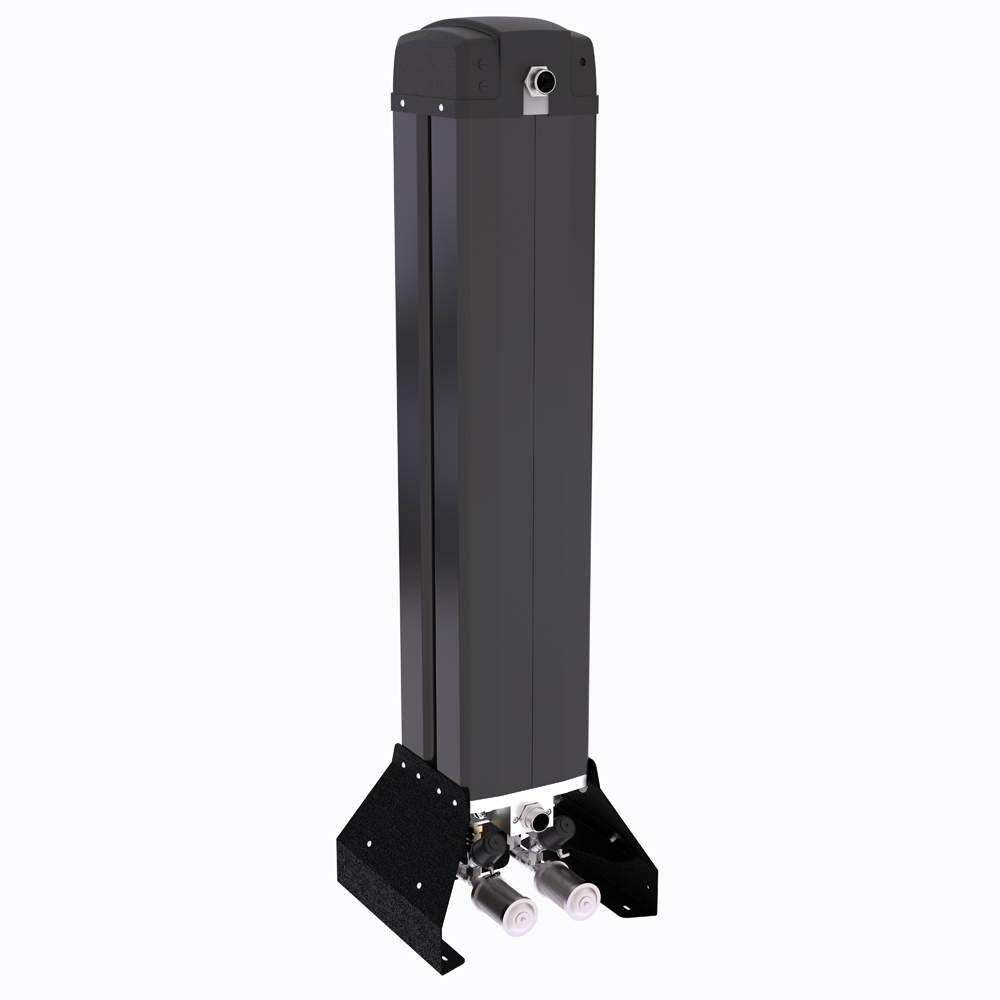

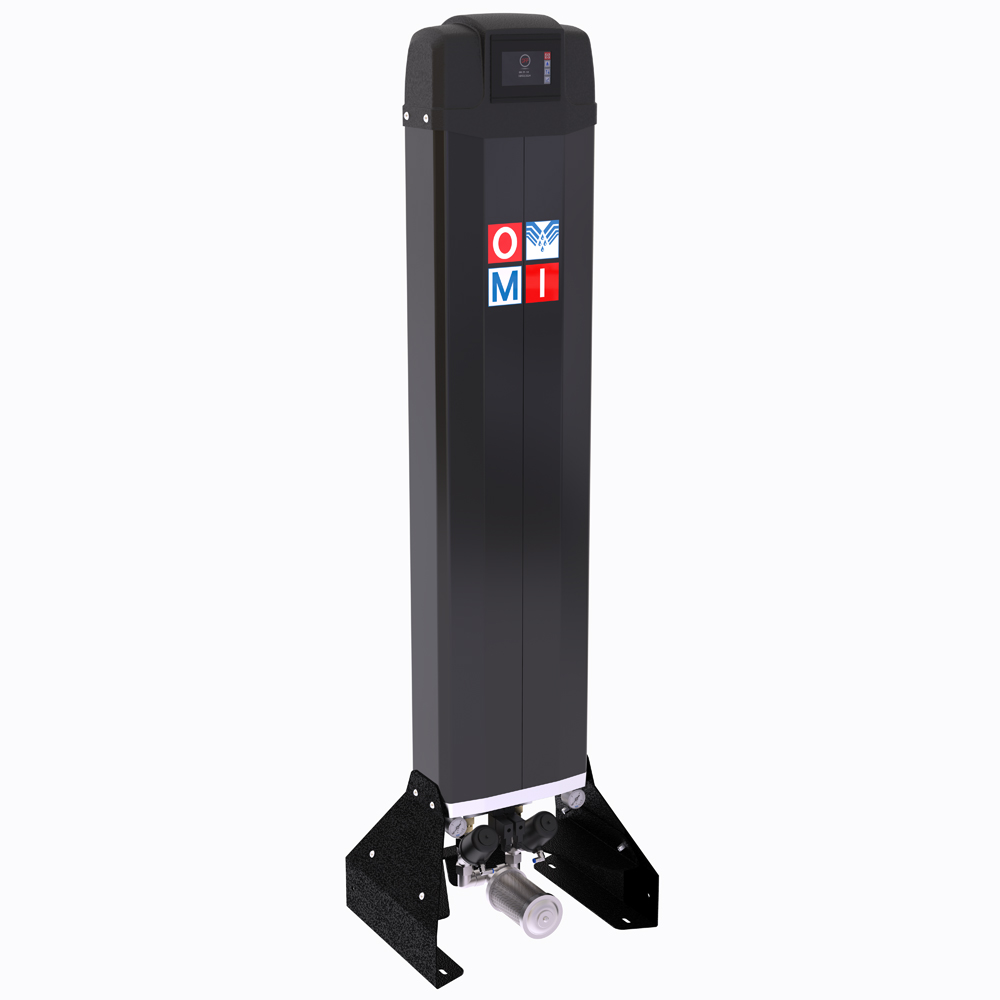

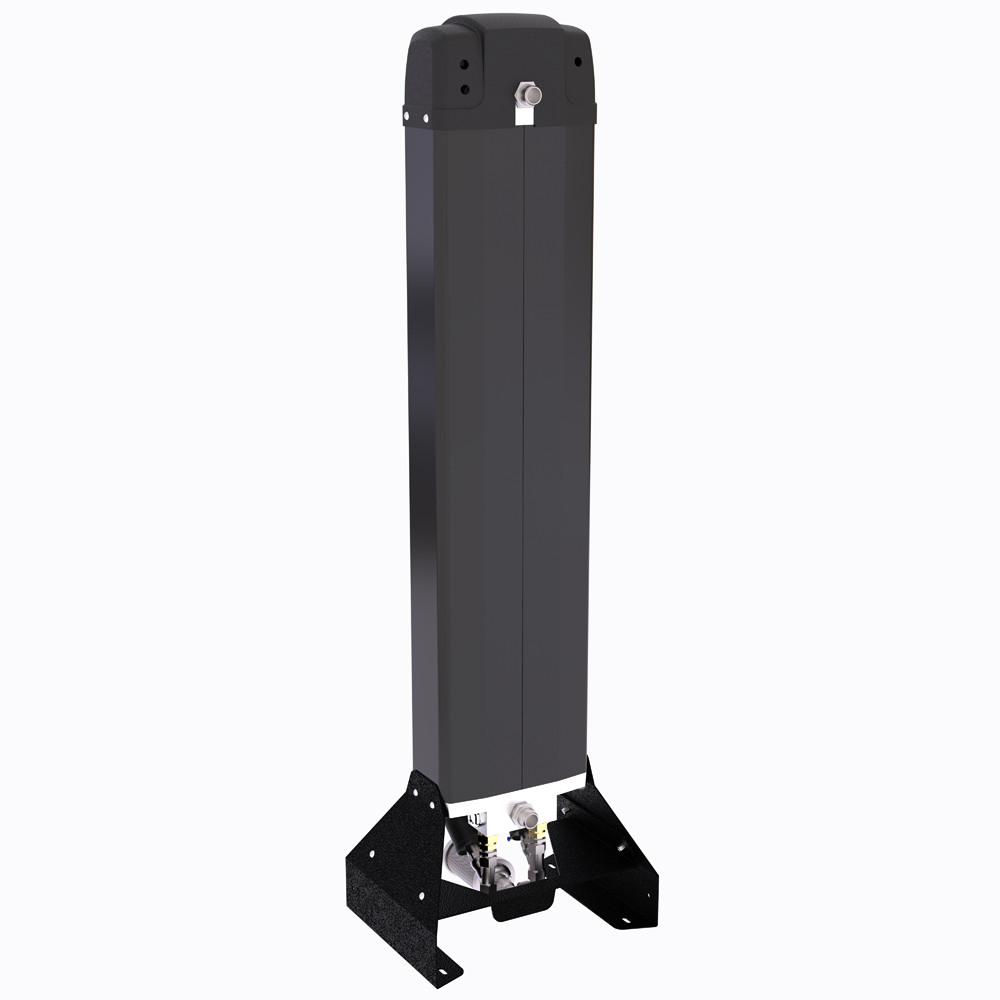

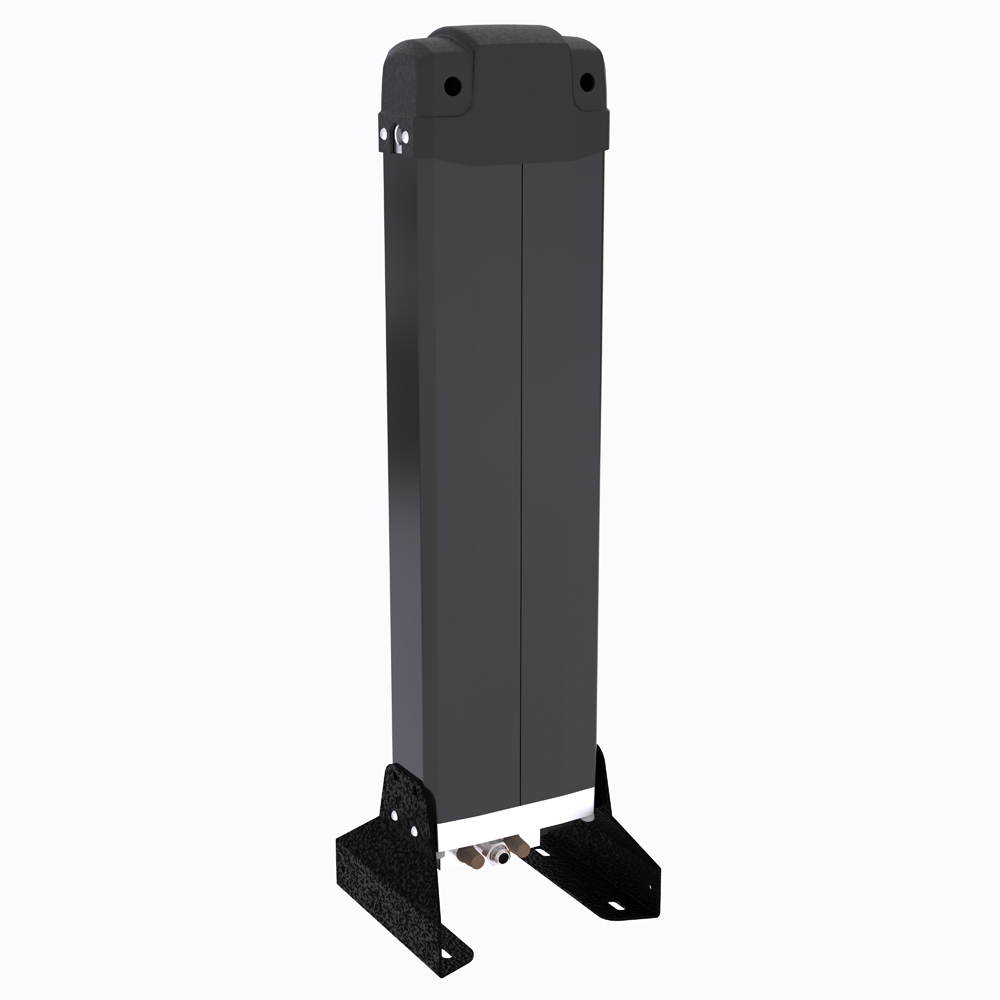

KMD Karst Modular Dryers

Air flow rate from 5 m³/h to 300 m³/h



Main features:

  • Wider pressure range (4-14 Barg) - Controller PLC (microprocessor up to KMD 25)

  • Compressor off-load interlock (from KMD 40)

  • Energy Management System Option

  • Preventative maintenance alerts (from KMD 40)

  • Low noise at Point of Use

  • Guaranteed class 2 (-40°C) and optionally class 1 (-70°C)* dew point

  • All models - 115V/1ph/60Hz

  • All models - NPT connections







New series of heatless adsorption dryers characterized by extremely reduced size and weight, ease of assembly thanks to the new aluminum design additionally guarantees excellent resistance to corrosion. Read on to discover unique design features that translate to real-life user benefits.



Superior reliability

  • Proven electronic control with indication of performance
  • Extruded aluminum with anodization and epoxy painting
  • NEMA 3/IP54 Protection (also suitable for outdoor installation)



Lower Total Cost of Investment

  • Point Of Use design to treat only the required air
  • Conservative pressure drop 0,2 barg
  • Lower compressed air cost with optional EMS
  • Purge reduction on compressed air demand (on/off-load)
  • Compact, space saving



Ease of use and serviceability

  • User-friendly electronic interface with alarm indicators*
  • Quick installation
  • Low noise at Point of Use
  • Modbus-Ready
  • RS-485 communications-ready
  • Simplified maintenance
  • High installation flexibility (can also be wall-mounted on installed horizontally)
  • Preventative maintenance alerts*

*Not presents in smaller units



Flexible solution, easy to install



Special features of KMD 40 - 300
  • Pneumatic purge valves, used also on well-proven OMI Large Heatless range
  • Solenoid control valve Low noise at Point-of-Use
  • Purge mufflers < 75 dBA Quick visual reading
  • Pressure gauges



Safe, easy to move and install

  • Feet with forklifting provisions
  • Protection of Noise mufflers







ModelCodeConnections
(BSP)
Flow rate*
(m³/h)
Flow rate*
(l/min)
Flow rate*
(CFM)
ISO8573-1:2010 Water content
(Class 2 Standard)
ISO8573-1:2010 Water content
(Class 1 Optional)
Datasheet
(-40 DP)
Datasheet
(-70 DP)
KMD 508U.0005FG.03/8"5833Dewpoint -40°F / -40°CNot availableDownloadNot available
KMD 1508U.0015FG.03/8"152509Dewpoint -40°F / -40°CNot availableDownloadNot available
KMD 2508U.0025FG.03/8"2541715Dewpoint -40°F / -40°CNot availableDownloadNot available
KMD 4008U.0040FG.03/4"4066724Dewpoint -40°F / -40°CDewpoint -100°F / -70°CDownloadDownload
KMD 5508U.0055FG.03/4"5591732Dewpoint -40°F / -40°CDewpoint -100°F / -70°CDownloadDownload
KMD 8008U.0080FG.03/4"801.33347Dewpoint -40°F / -40°CDewpoint -100°F / -70°CDownloadDownload
KMD 12008U.0120FG.01"120271Dewpoint -40°F / -40°CDewpoint -100°F / -70°CDownloadDownload
KMD 16008U.0160FG.01"1602.66794Dewpoint -40°F / -40°CDewpoint -100°F / -70°CDownloadDownload
KMD 20008U.0200FG.01"1/22003333118Dewpoint -40°F / -40°CDewpoint -100°F / -70°CDownloadDownload
KMD 25008U.0250FG.01"1/22504167147Dewpoint -40°F / -40°CDewpoint -100°F / -70°CDownloadDownload
KMD 30008U.0300FG.01"1/23005000177Dewpoint -40°F / -40°CDewpoint -100°F / -70°CDownloadDownload
STANDARD REFERENCE CONDITIONS
  • Working pressure: 7 bar

  • Inlet air temperature: 35°C (50° max)

  • Dew point at 7 bar pressure: -40°C (-70°C)

  • Work/Purge cycle: 5/5 min. (2/2 min.)

  • Regeneration air consumption: max 18% of nominal flow rate



STANDARD VOLTAGE

230V/1ph/50-60Hz

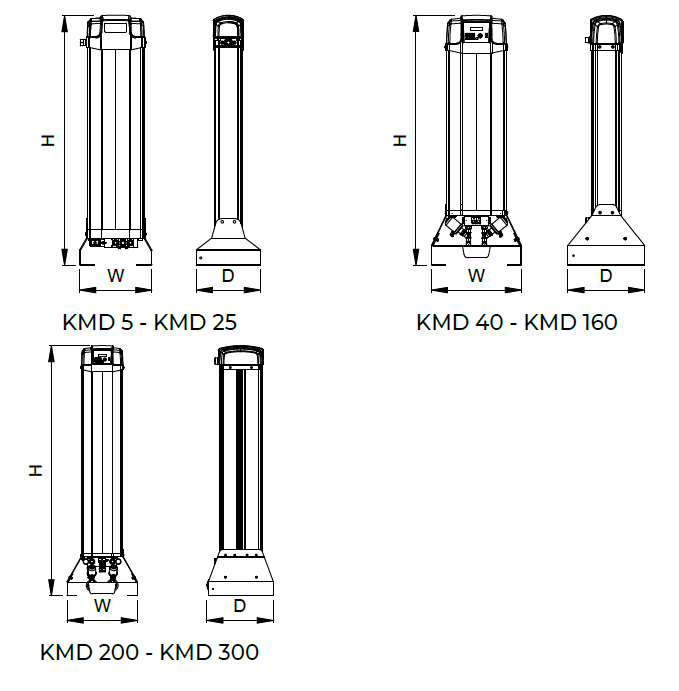

Karst Dryers Dimensions Technical drawing.PNG

ModelWidth - W (mm)Depth - D (mm)Height - H (mm)Weight (kg)
KMD 523821242311
KMD 1523821282318
KMD 25238212107327
KMD 4047540596844
KMD 55475405111850
KMD 80475405131860
KMD 120475405167373
KMD 160475405187390
KMD 2005364951705177
KMD 2505364951905180
KMD 3005364951905188
