In line quick connection for two or more filters and wall support are available from model F0005 up to F0095.

Model	Connections for two filters in line	Connections for three filters in line	Connections for four filters in line
F0005-F0030	045.F632.21	045.F633.31	045.F634.41
F0034-F0050	045.F632.22	045.F633.32	045.F634.42
F0072-F0095	045.F632.23	045.F633.33	045.F634.43

Model	Wall support for single filter	Wall support for two filters in line	Wall support for three filters in line	Wall support for four filters in line
F0005-F0030	045.F631.01	045.F635.21	045.F636.31	045.F637.41
F0034-F0050	045.F631.02	045.F635.22	045.F636.32	045.F637.42
F0072-F0095	045.F631.02	045.F635.23	045.F636.33	045.F637.43

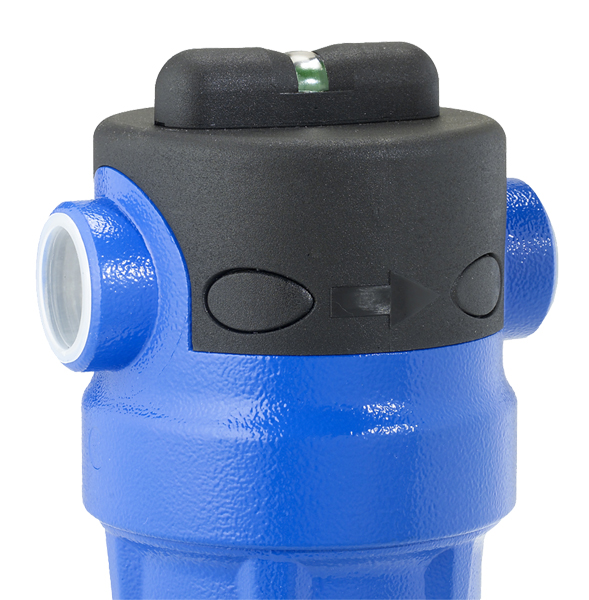

Colour visual indicator of the differential pressure drop through the filter element.

Max pressure: 16 bar.

Model	Code	Max inlet temperature
Aluminum filters from F0005 to F0440	045.F720.00.0000	90°C
Carbon steel filters from F0460 to F3500	045.F721.00.0000	90°C

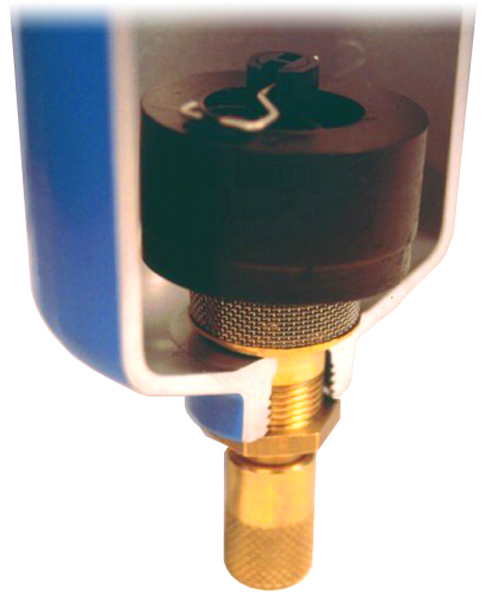

Code	Connections	Max pressure
140.0074.00.0000	⅜"	16 bar

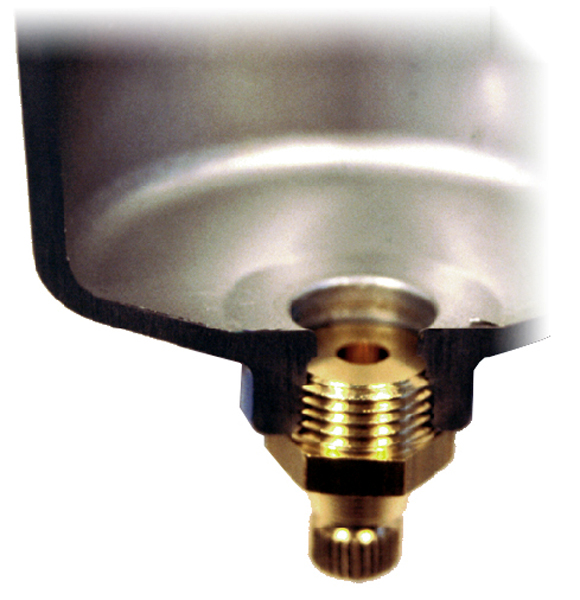

Code	Connections	Max pressure
045.F603.03.0000	⅛"	16 bar

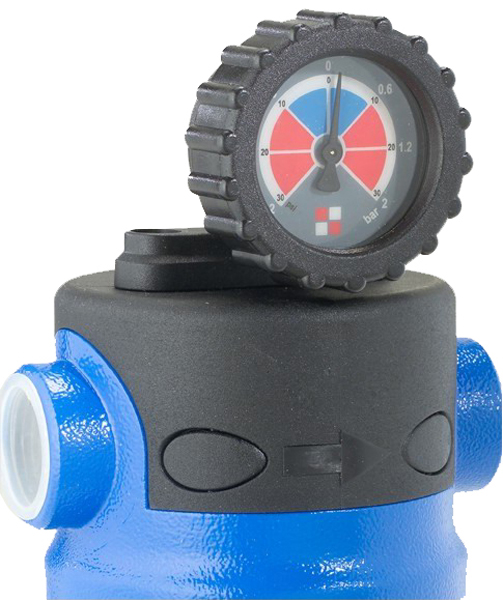

Displays the exact grade of saturation of the filter element.

Max pressure: 16 bar.

Model	Code	Max inlet temperature
Aluminum filters from F0005 to F0440	045.F620.00.0000	90°C
Carbon steel filters from F0460 to F3500	045.F621.00.0000	90°C
Aluminum filters for high temperature from F0025 to F0450	045.F622.00.0000	150°C (200°C Intermitten operation)
Carbon steel filters for high temperature from F0470 to F5170	045.F623.00.0000	150°C (200°C Intermitten operation)
