HPD Series | Easy Dry High Pressure Air Dryers

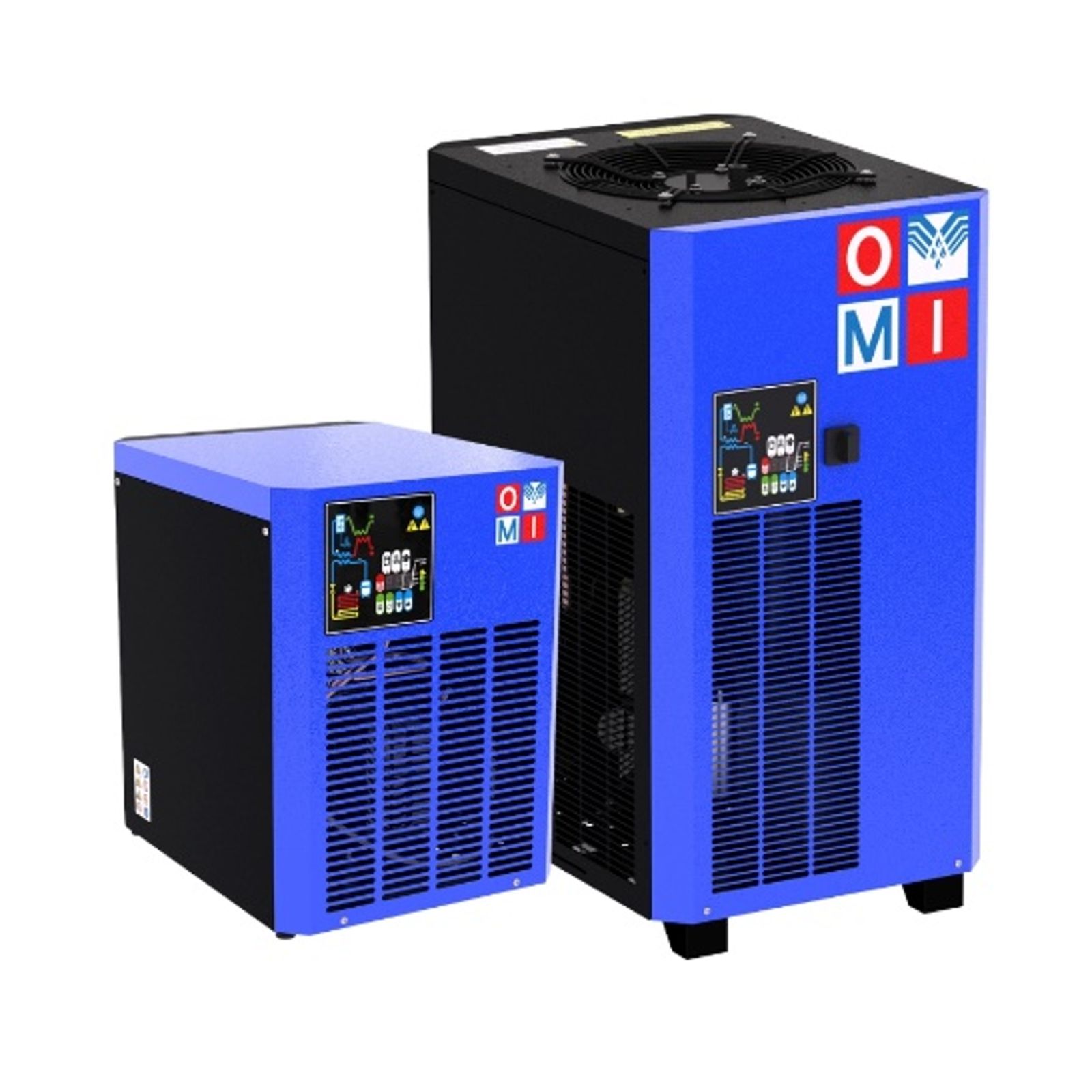

Refrigeration air dryers high pressure refrigeration dryers product image 1 on white background| compressed air treatment | OMI

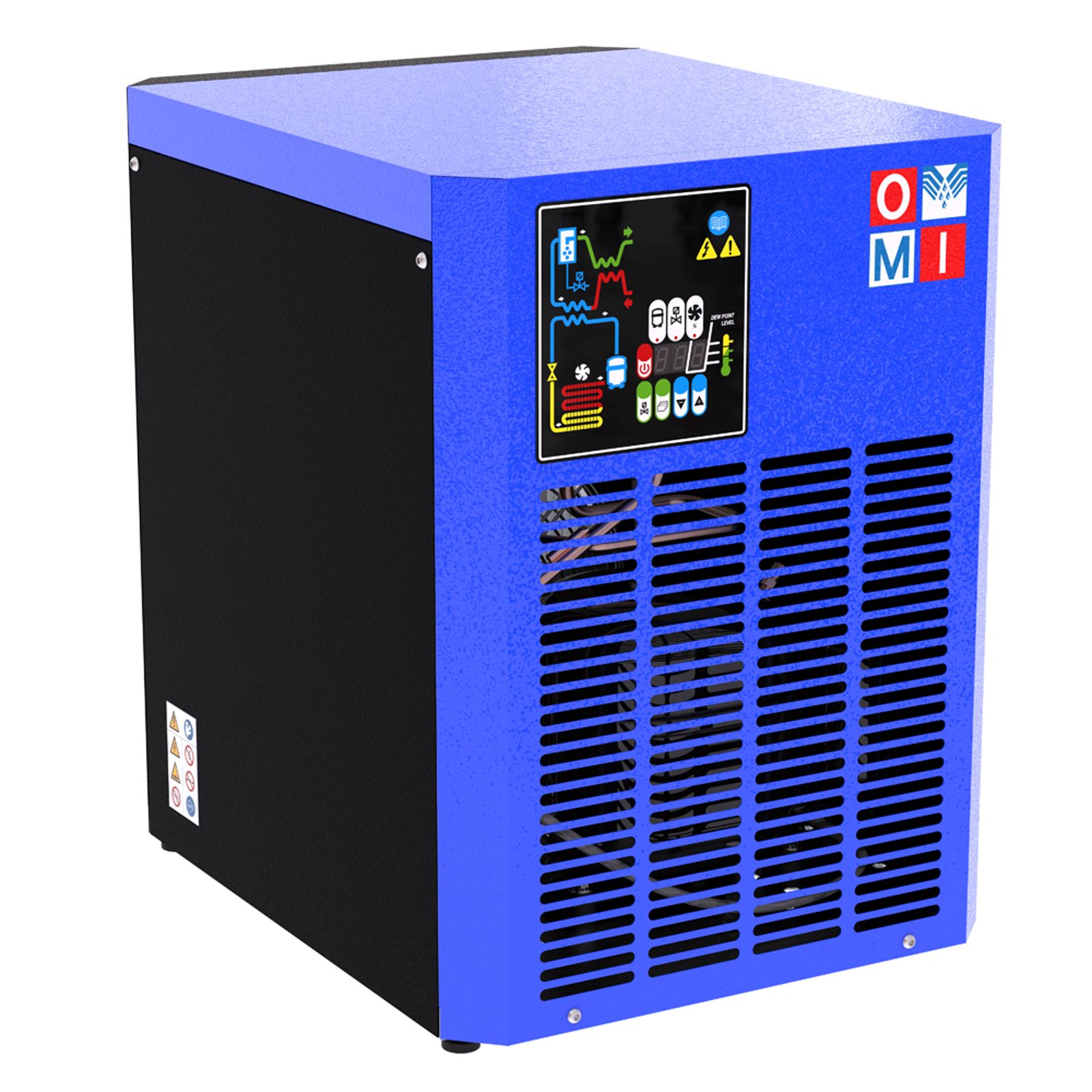

Refrigeration air dryers high pressure refrigeration dryers product image 2 on white background| compressed air treatment | OMI

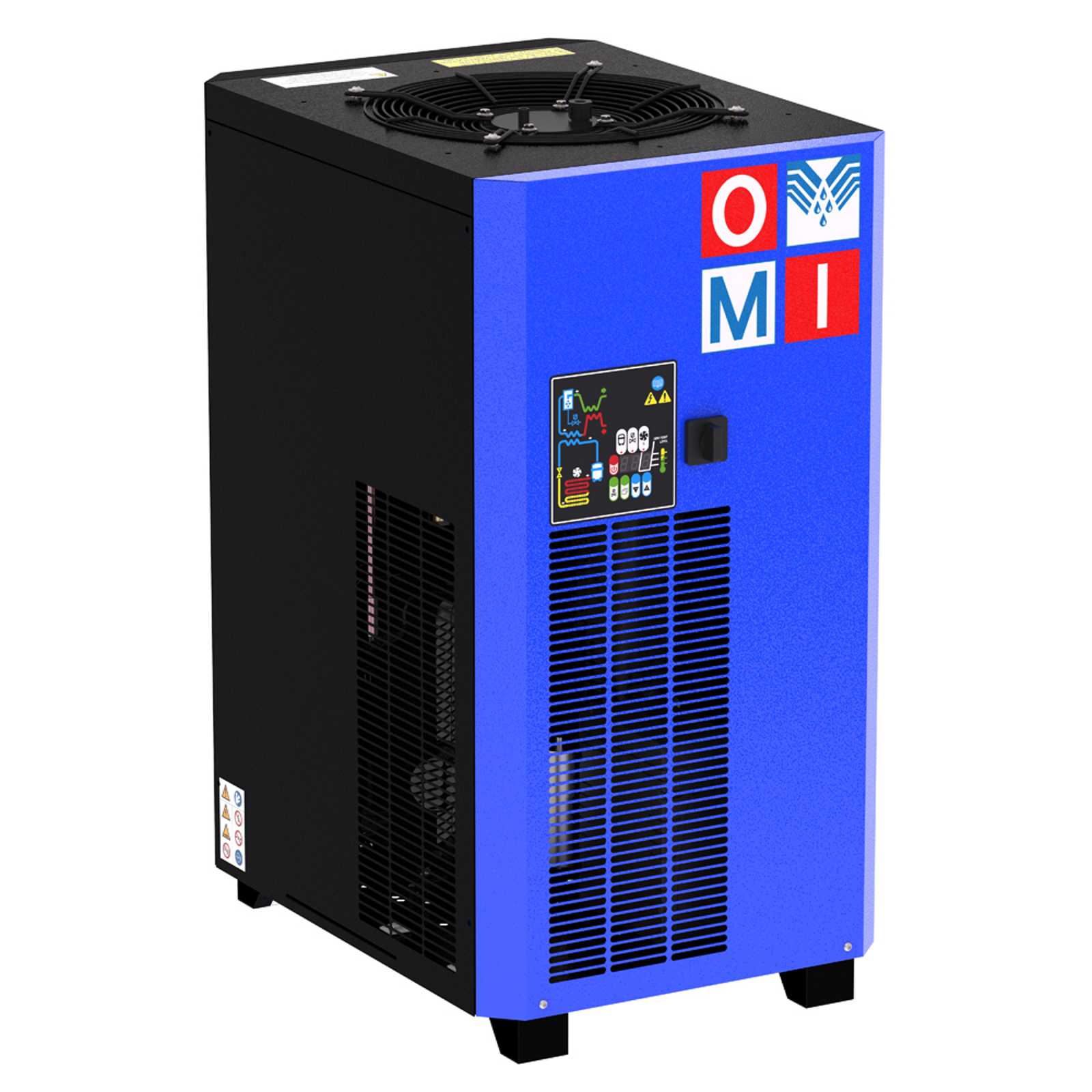

Refrigeration air dryers high pressure refrigeration dryers product image 3 on white background| compressed air treatment | OMI

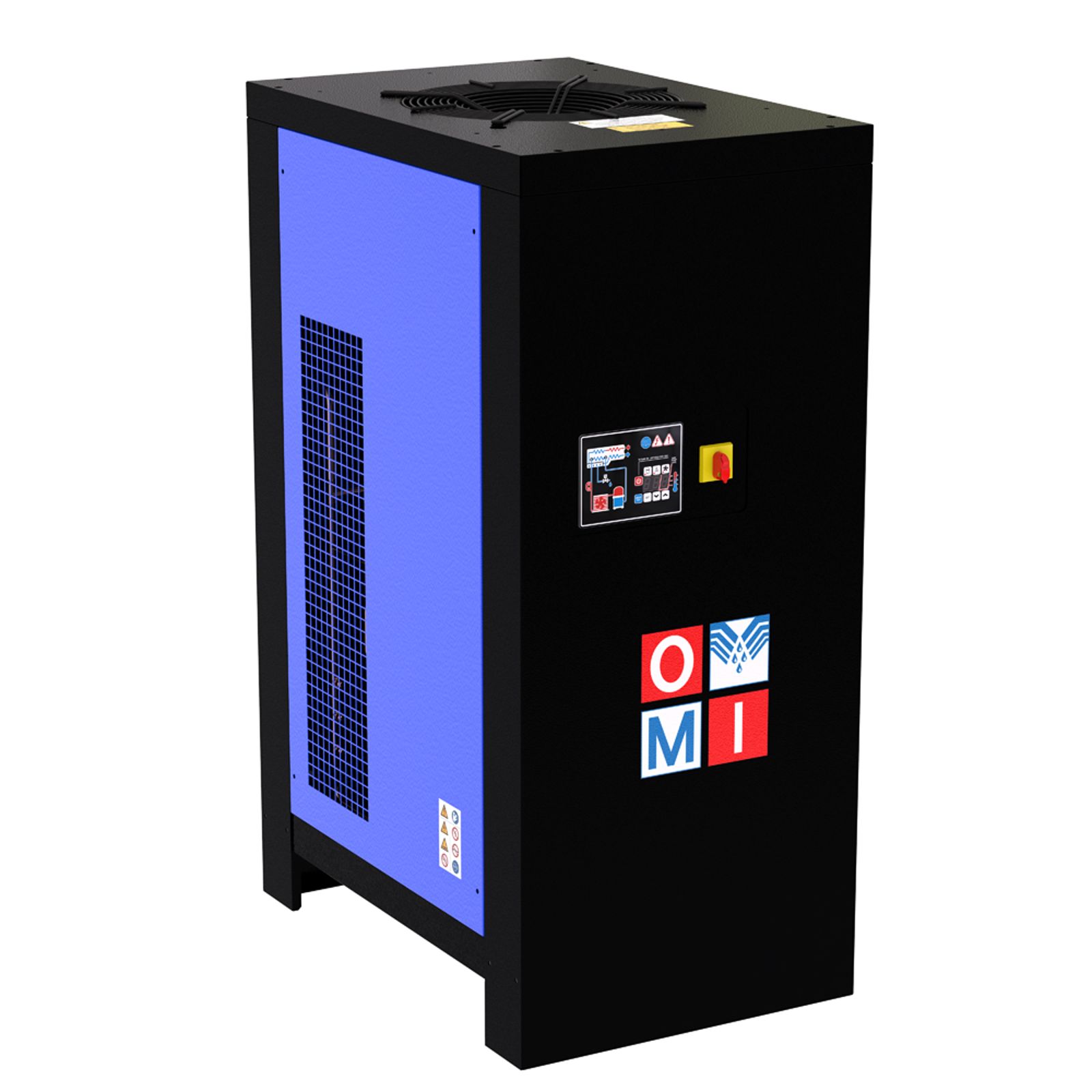

Refrigeration air dryers high pressure refrigeration dryers product image 4 on white background| compressed air treatment | OMI

Air flow rate up to 1200m3/h

OMI HP refrigeration dryers provide dry compressed air for applications up to 45 bar.HP series guarantees a +3°C dew point and maximum reliability thanks to a new heat exchanger design more compact and efficient than the previous models. The range of HP dryers consists of 10 models that allows to uniformly cover flow rates up to 1200 m³/h.

All models are equipped with a safety valve that activates in case of direct contamination between refrigerant gas and compressed air.

AVAILABLE OPTIONS:

ED 480-1200 HP are available with 230/1/60 power supply

The HP Dryers are especially useful for various applications requiring high pressure air flow such as blow molding for the production of PET containers and bottling, water jet cuts, aeronautical valves and other special applications.

Our HP Dryers feature a 3-in-1 heat exchanger - Include evaporator, separator, pre-cooler/heater.

Air compressor compresses hot and moist air to the pre-cooler of a 3-in-1 heat exchanger, then the hot & moist air exchanges heat with treated cold air.

This chilled moist air enters the evaporator, lower down temperature and condensate water out by evaporation. After, the air moves to the separator, with centrifugal force and gravity, the condensate water can be separated from air.

Finally, the cool & dry air goes back to preheater to be heated to the working temperature.

Evaporator:

Condense out moisture from air through our high efficiency heat exchanger.
High efficiency, low dew point, and low pressure drop.

Separator:

Centrifugal force and gravity separate moistures from air.
No mesh designed, clogging free, easy to maintain.

Pre-cooler/heater:

Save energy by exchanging heat from inlet and outlet air temperature.
Outlet air can be used directly. It is preheated to the working temperature.

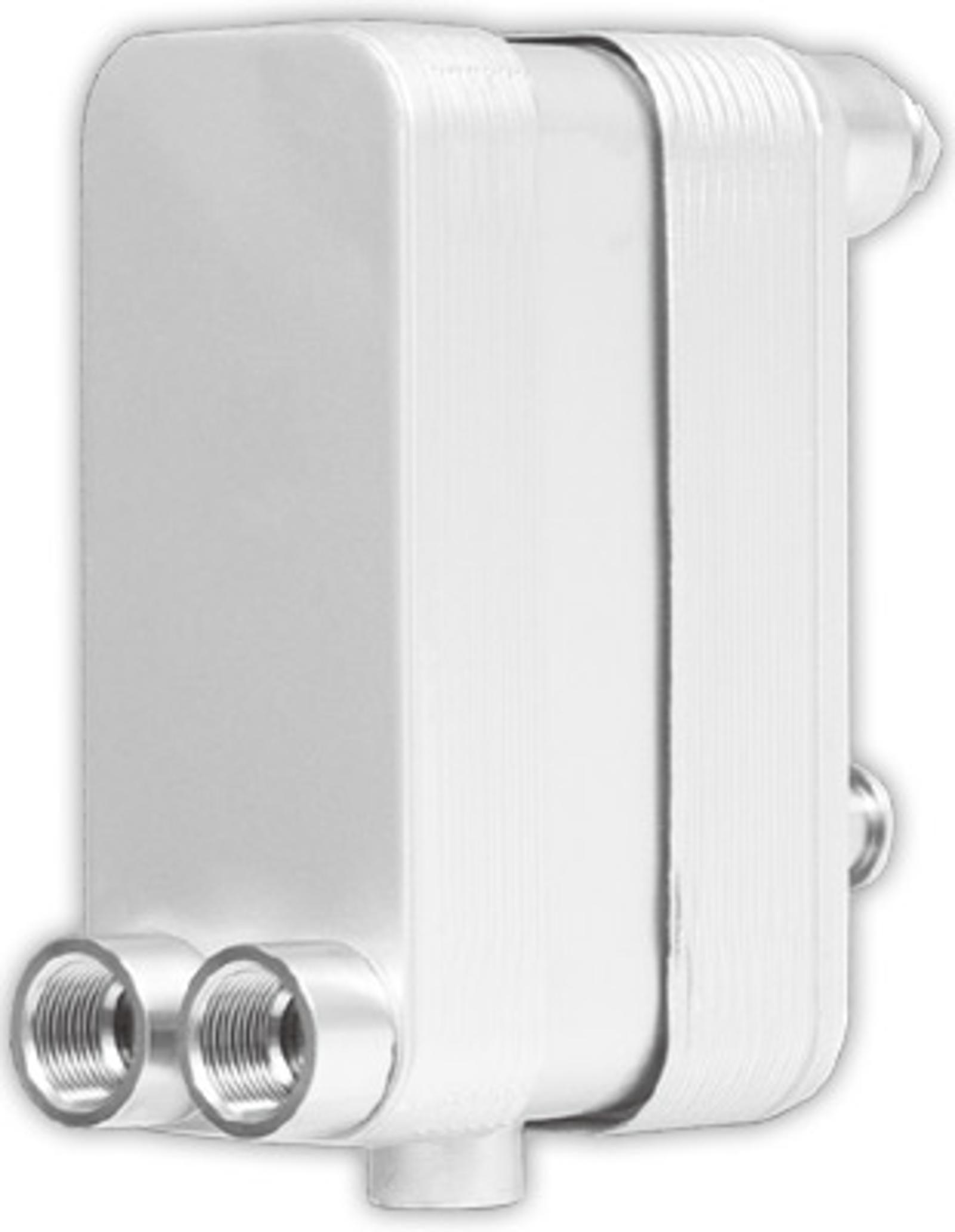

Refrigeration air dryers high pressure refrigeration dryers product image 5 on white background| compressed air treatment | OMI

Model	Code	Connections	Flow rate (m³/min)	Flow rate (l/min)	Flow rate (CFM)	Nominal power consumption (KW)	ISO8573-1:2010 Classification
ED 88 HP	08N.0088BGO	1/2"	88	1.470	52	0.17	Water content: Class 4, Dewpoint: 3°C / 37,4 °F
ED 108 HP	08N.0108BGO	1/2"	108	1.800	64	0.17	Water content: Class 4, Dewpoint: 3°C / 37,4 °F
ED 180 HP	08N.0180BGO	1/2"	180	3000	106	0.41	Water content: Class 4, Dewpoint: 3°C / 37,4 °F
ED 225 HP	08N.0225BGO	1/2"	225	3750	132	0.41	Water content: Class 4, Dewpoint: 3°C / 37,4 °F
ED 270 HP	08N.0270BGO	1/2"	270	4500	159	0.55	Water content: Class 4, Dewpoint: 3°C / 37,4 °F
ED 360 HP	08N.0360BGO	1/2"	360	6000	212	0.81	Water content: Class 4, Dewpoint: 3°C / 37,4 °F
ED 480 HP	08N.0480BGO	1" 1/4	480	8000	283	0.9	Water content: Class 4, Dewpoint: 3°C / 37,4 °F
ED 660 HP	08N.0660BGO	1" 1/4	660	11000	389	1.23	Water content: Class 4, Dewpoint: 3°C / 37,4 °F
ED 990 HP	08N.0990BGO	1" 1/4	990	16500	583	1.23	Water content: Class 4, Dewpoint: 3°C / 37,4 °F
ED 1200 HP	08N.1200BGO	1" 1/4	1200	20000	706	1.43	Water content: Class 4, Dewpoint: 3°C / 37,4 °F

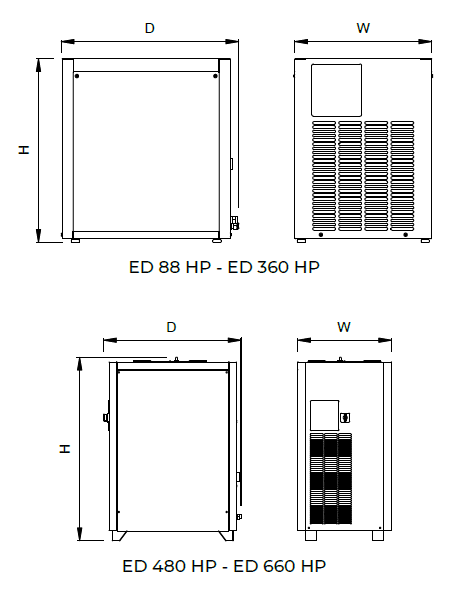

Refrigeration air dryers high pressure refrigeration dryers technical drawing 2| compressed air treatment | OMI

Model	Width - W (mm)	Depth - D (mm)	Height - H (mm)	Weight (kg)
ED 88 HP	390	458	454	27
ED 108 HP	390	458	454	28
ED 180 HP	420	543	563	31
ED 225 HP	420	543	563	33
ED 270 HP	420	543	563	36
ED 360 HP	420	543	563	40
ED 480 HP	500	734	980	80
ED 660 HP	500	734	980	83
ED 990 HP	520	819	1218	110
ED 1200 HP	520	819	1218	120
