Tee

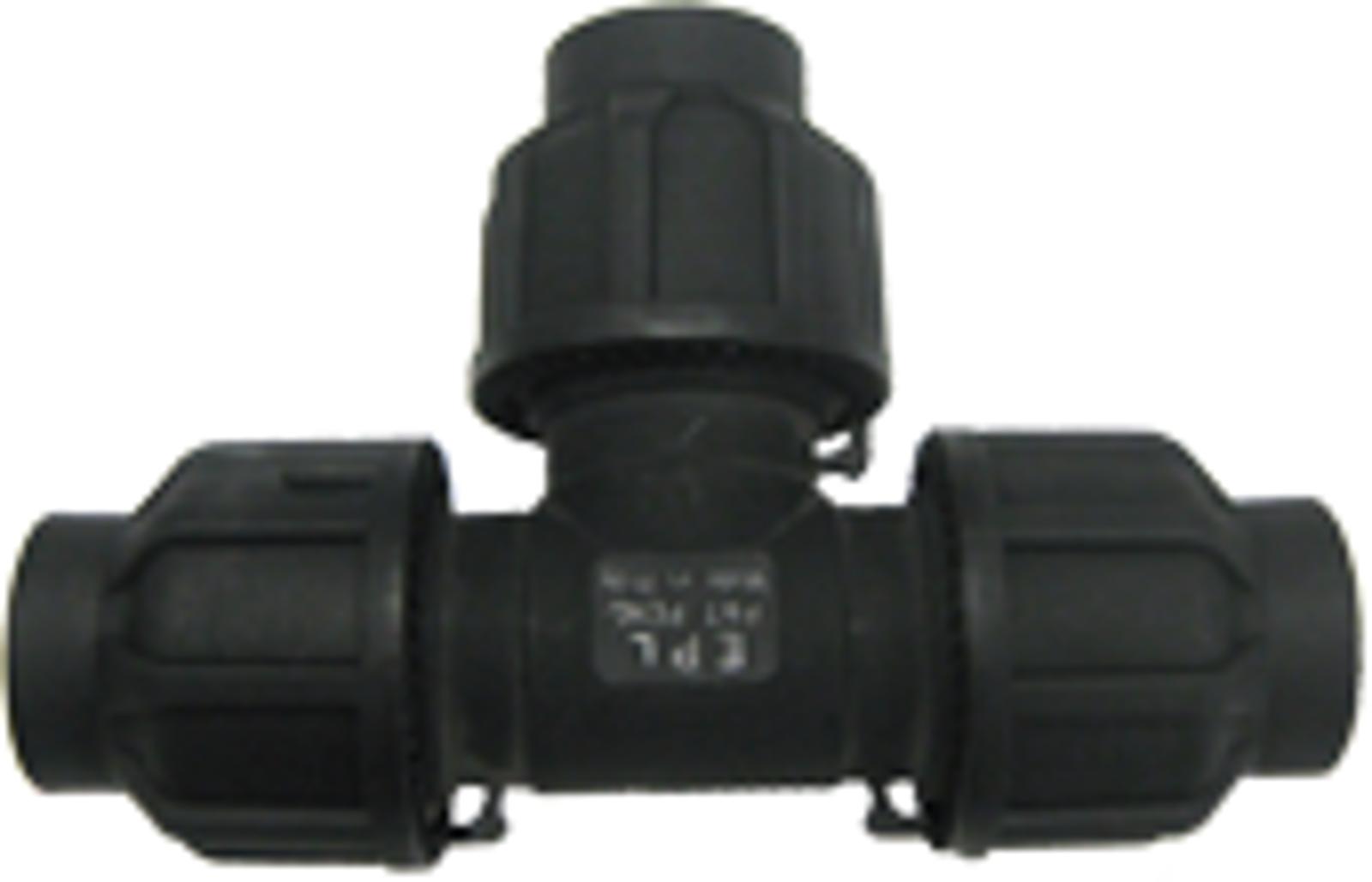

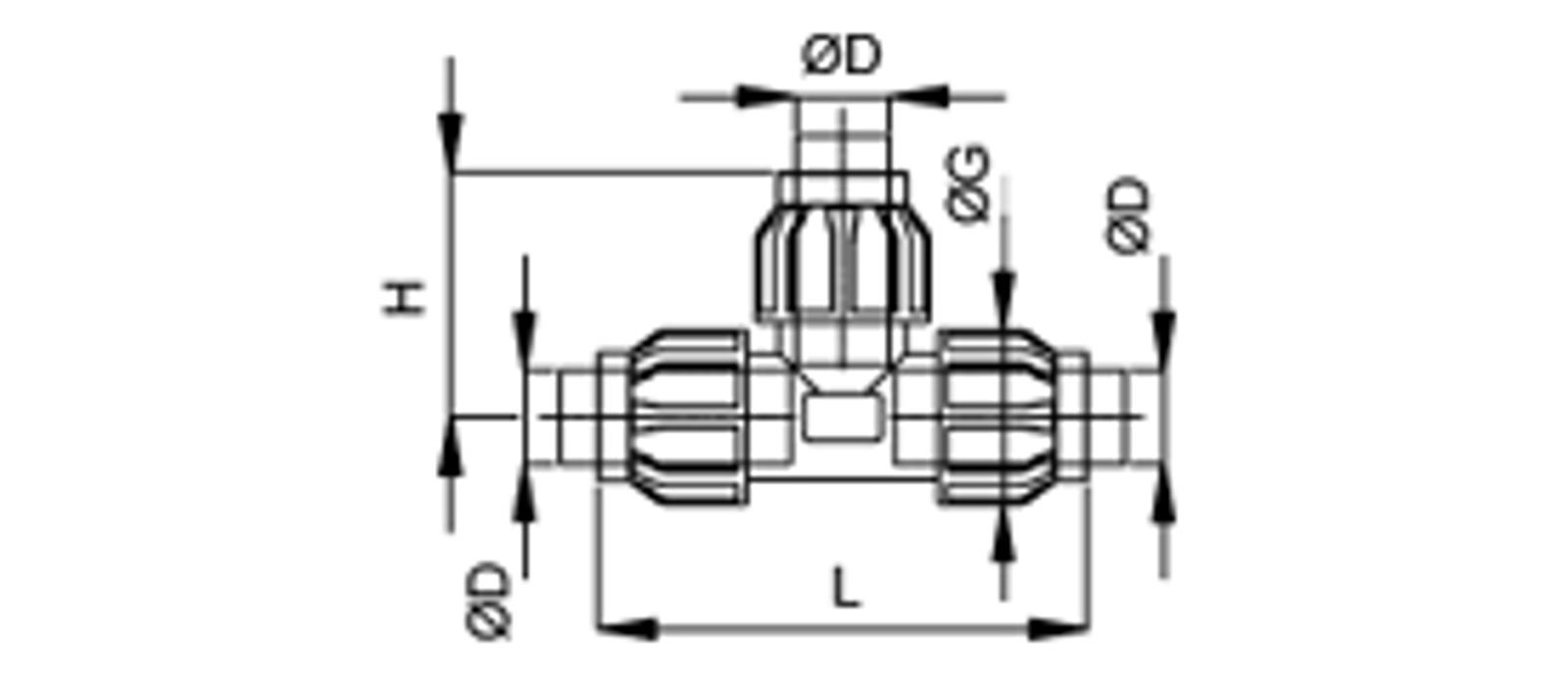

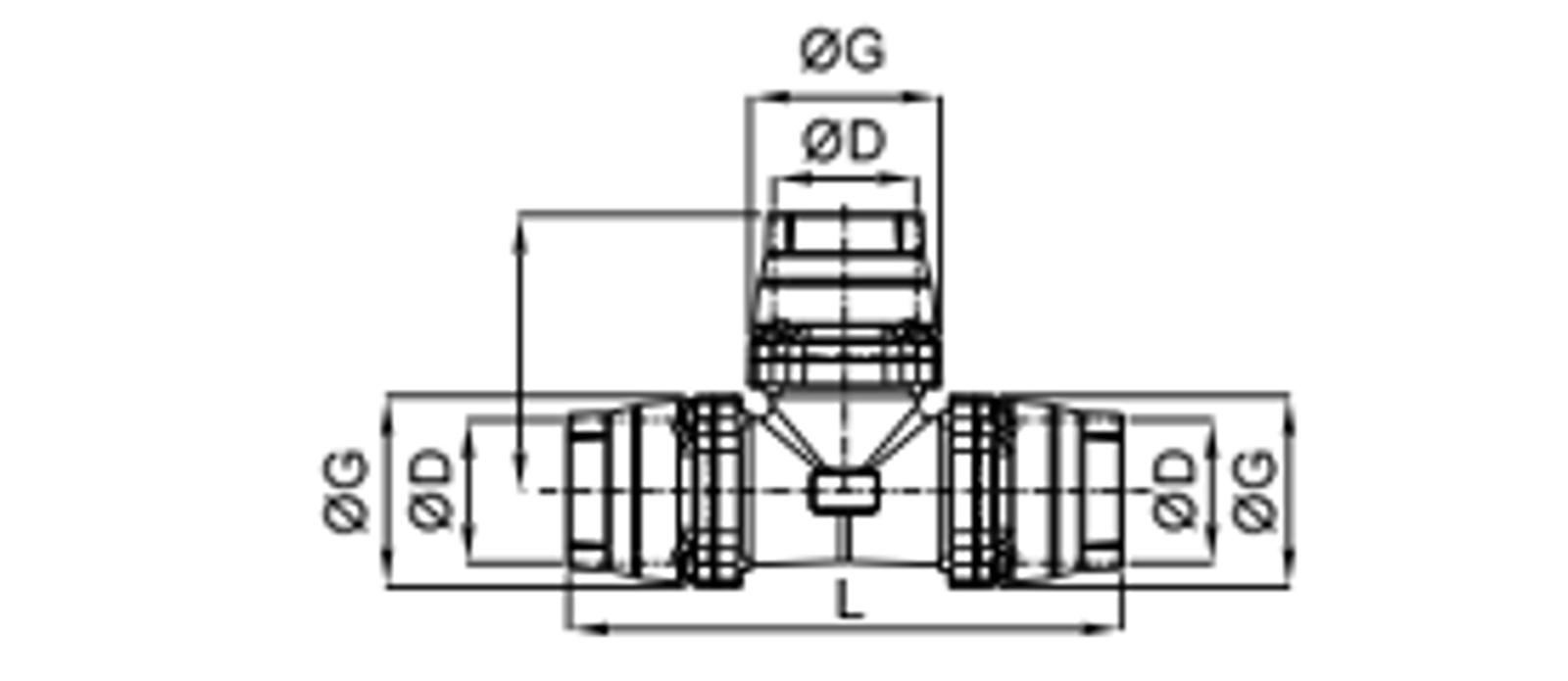

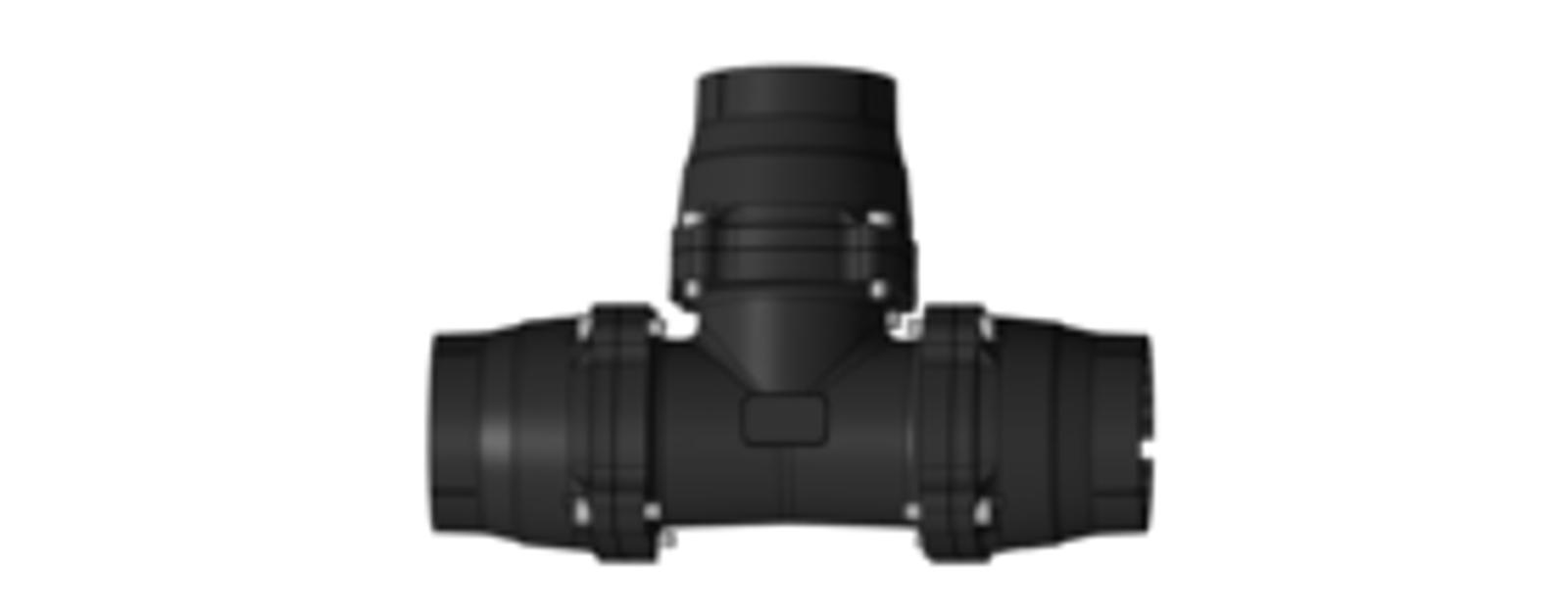

TEE

Code

ØD (mm)

H (mm)

ØG (mm)

L (mm)

09P.TEET.020

20

68

43

136

09P.TEET.025

25

77

51

154

09P.TEET.032

32

88

61

176

09P.TEET.040

40

105

75

210

09P.TEET.063

63*

127

105

255

09P.TEET.080

80**

191,5

140

383

09P.TEET.110

110**

212

176

425

09P.TEET.160

158**

278

235

556

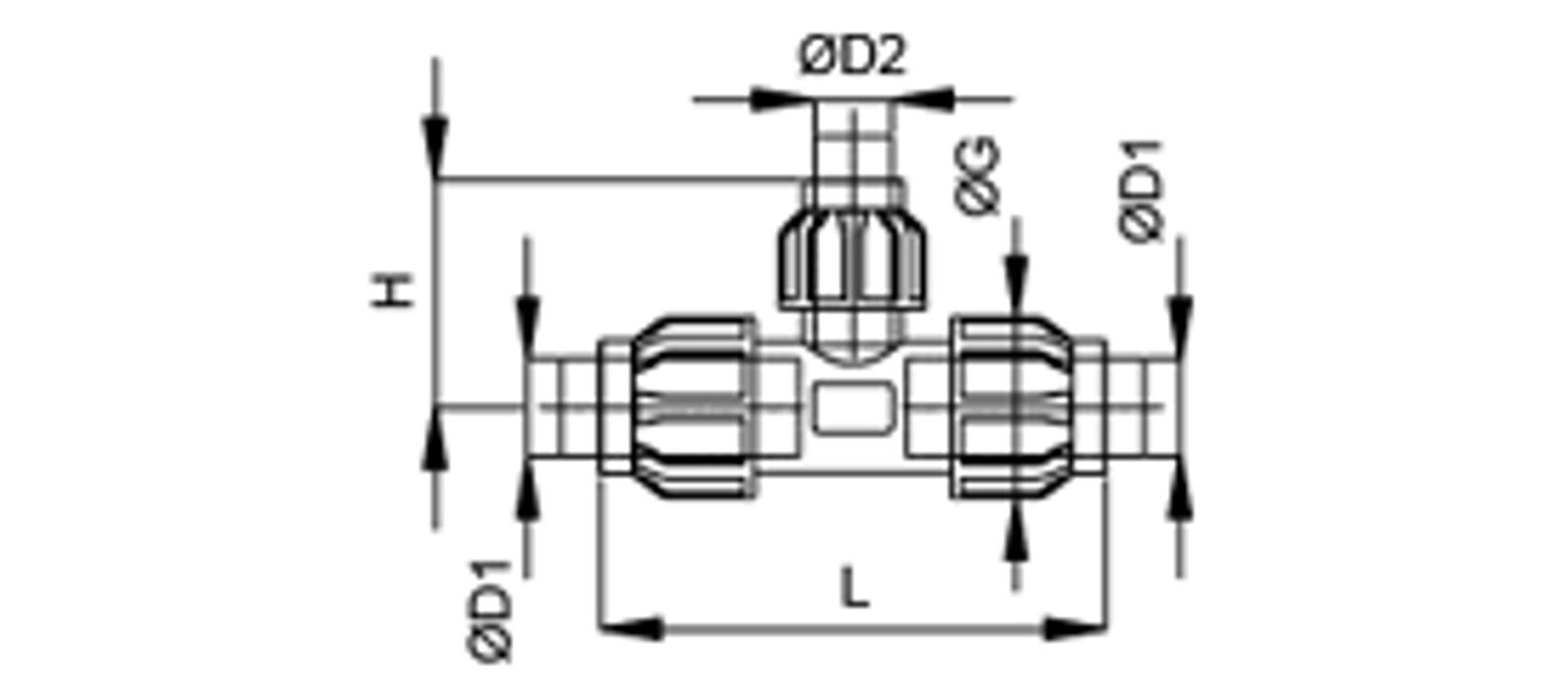

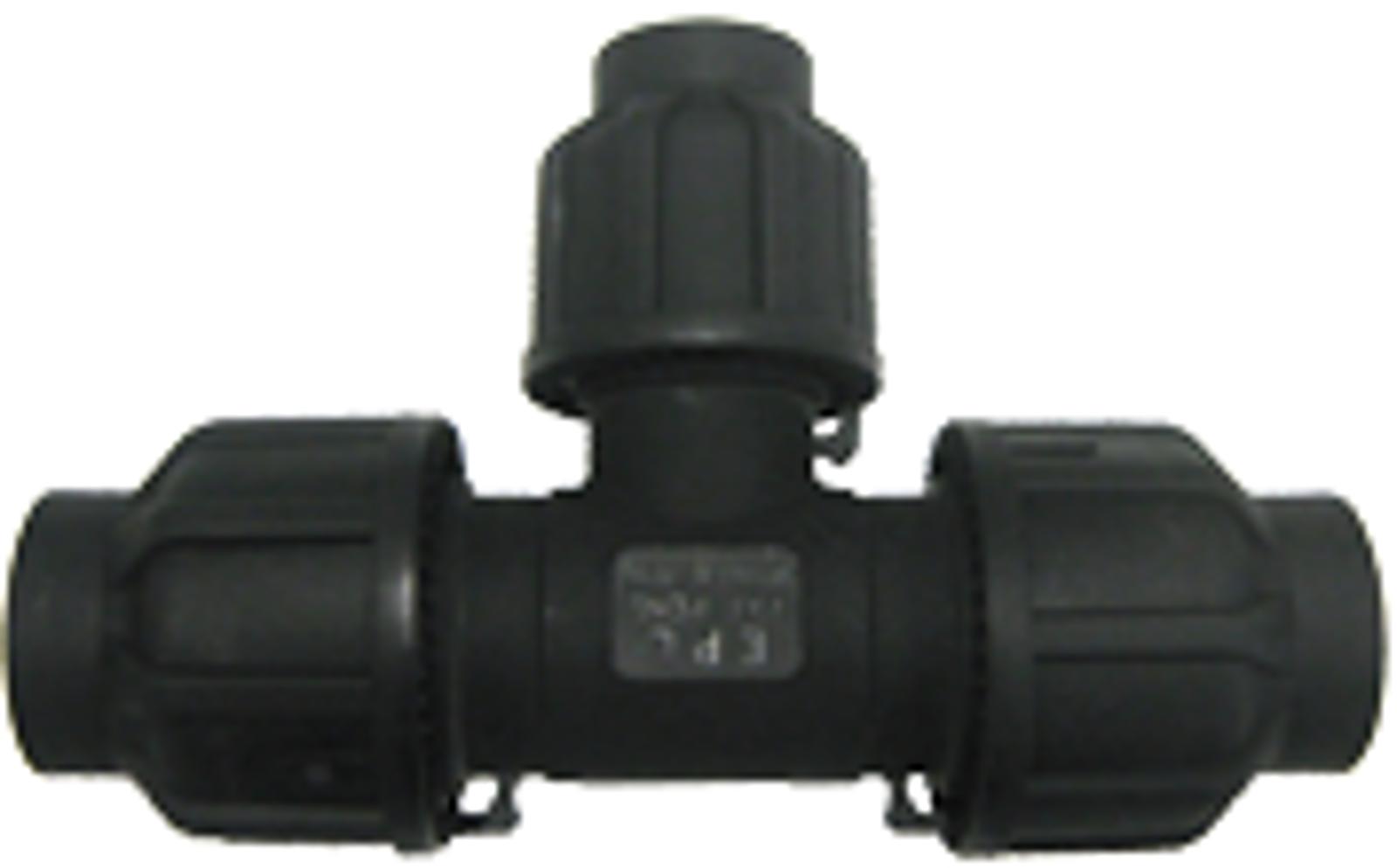

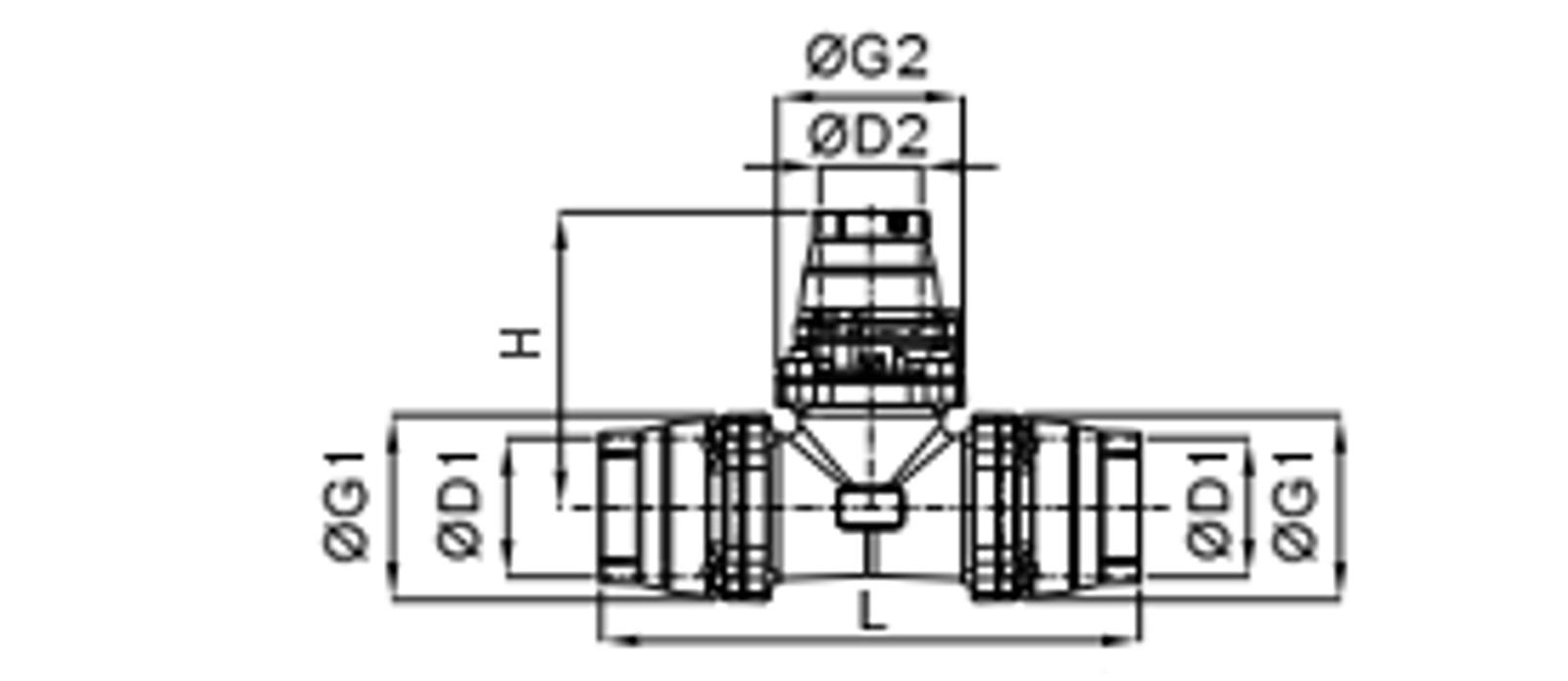

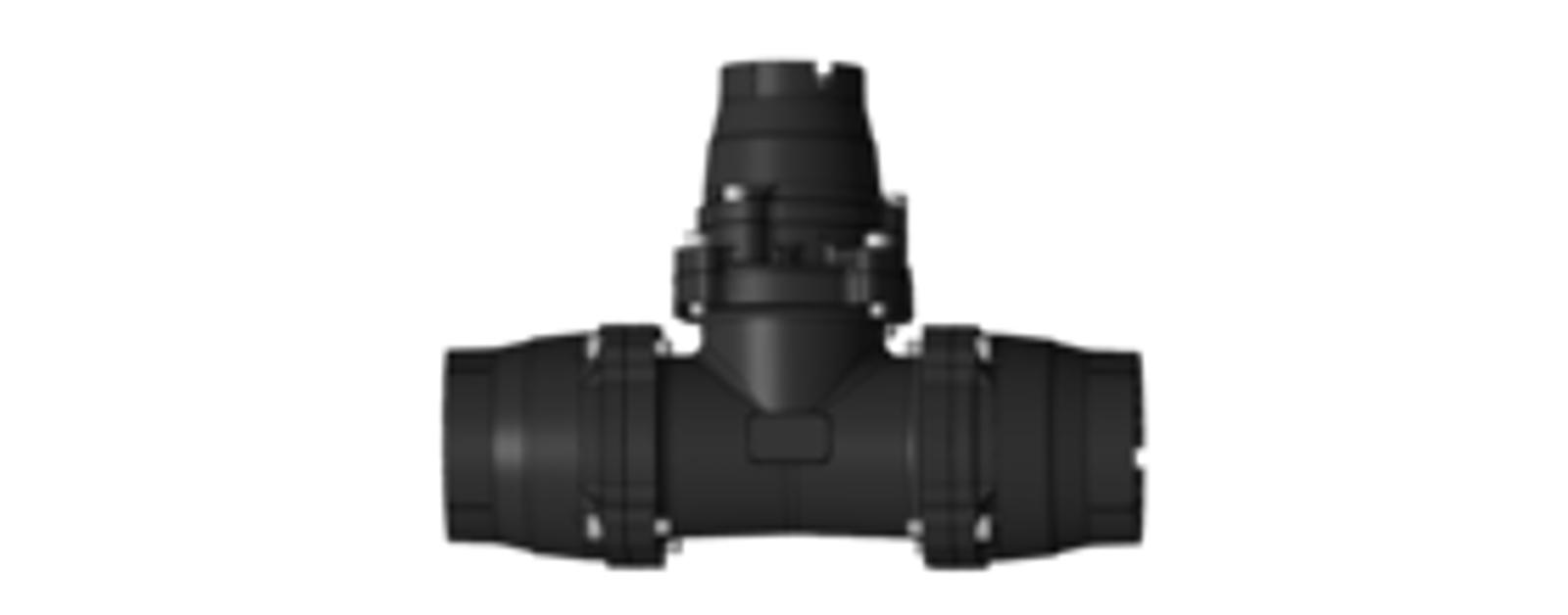

TEE RIDOTTO

Code

ØD1 (mm)

ØD2 (mm)

ØG1 (mm)

ØG2 (mm)

L (mm)

H (mm)

09P.TEER.025.020

25

20

51

43

154

74

09P.TEER.032.025

32

25

61

51

176

83

09P.TEER.040.032

40

32

75

61

210

94

09P.TEER.063.040

63*

40

105

75

255

123

09P.TEER.080.040

80**

40

140

105

383

196,5

09P.TEER.080.063

80**

63*

140

105

383

196,5

09P.TEER.110.040

110**

40

176

140

425

233,5

09P.TEER.110.063

110**

63*

176

140

425

233,5

09P.TEER.110.080

110**

80**

176

140

425

212

09P.TEER.160.110

158**

110**

235

176

556

286

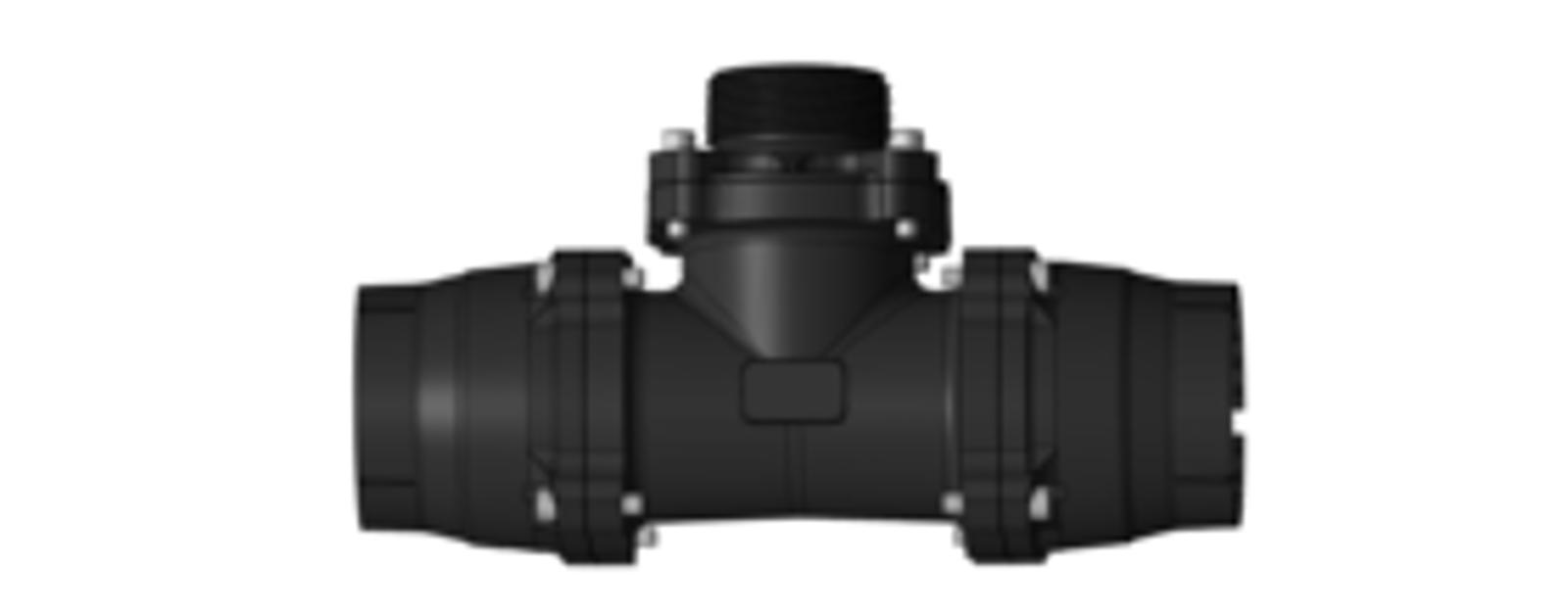

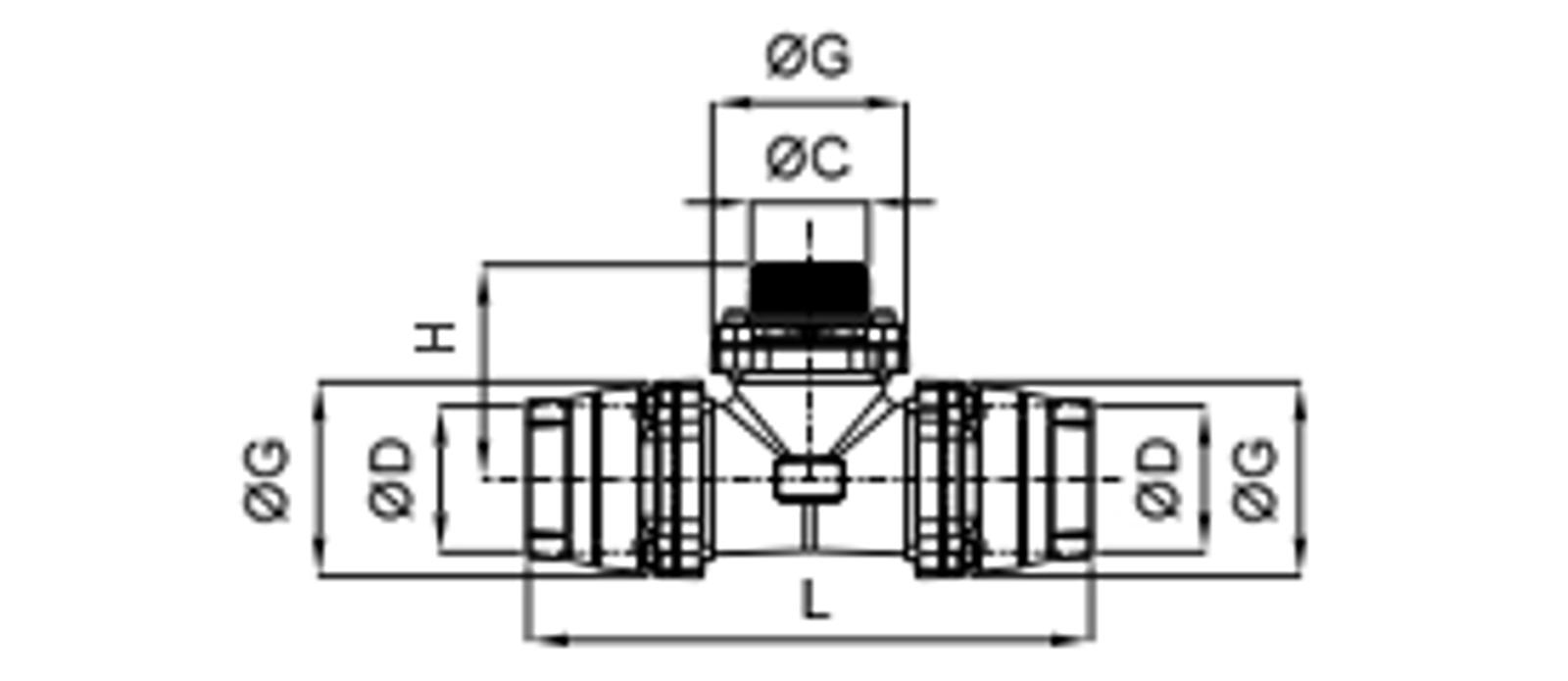

TEE FILETTATO MASCHIO

Code

ØD (mm)

ØC (BSP)

ØG (mm)

L (mm)

H (mm)

09P.TEEM.G12.080

80

3"

140

383

151

09P.TEEM.G12.110

110

3"

176

425

161
