Volver a la lista de productos

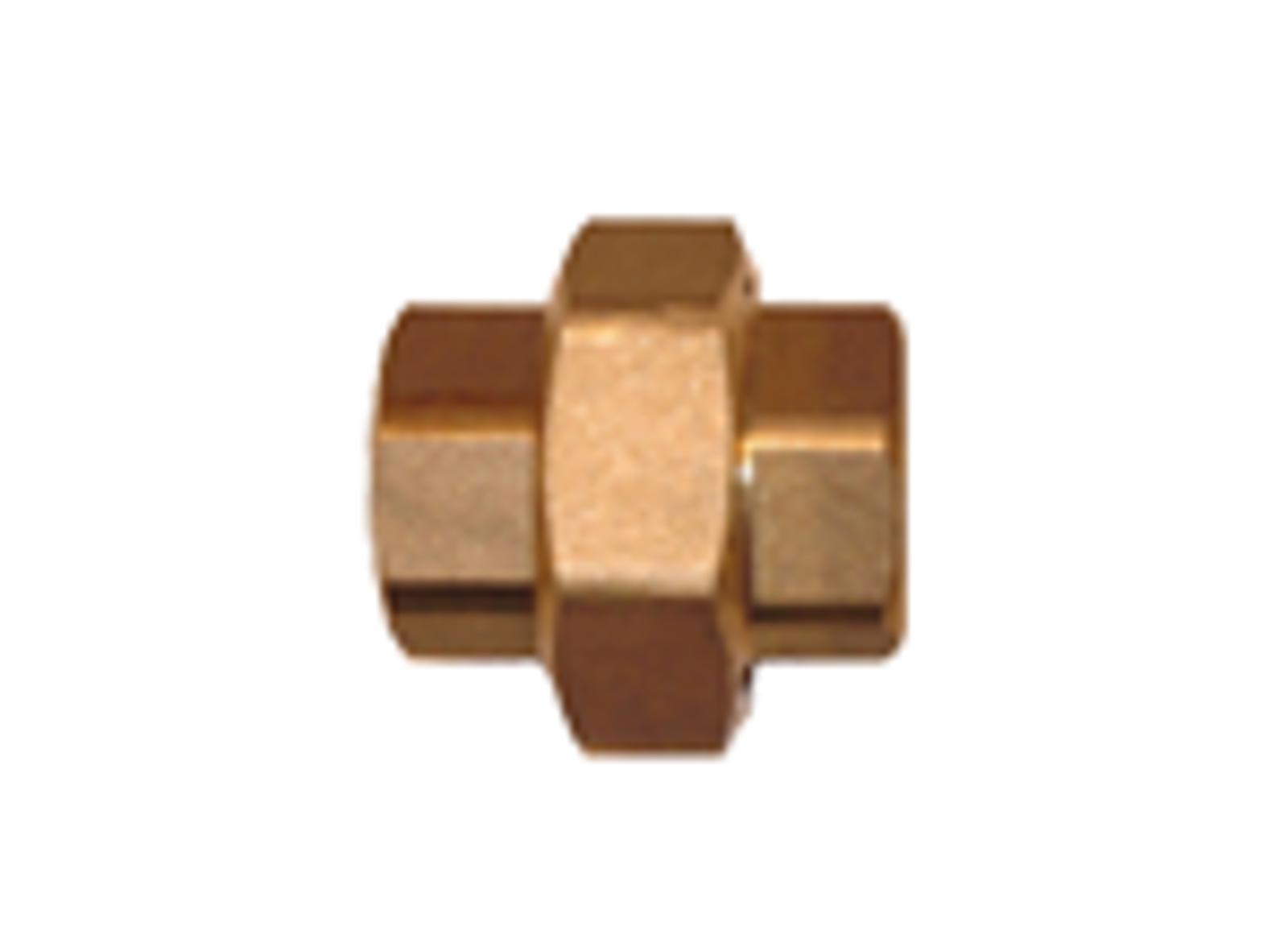

Racor de unión de latón


Código

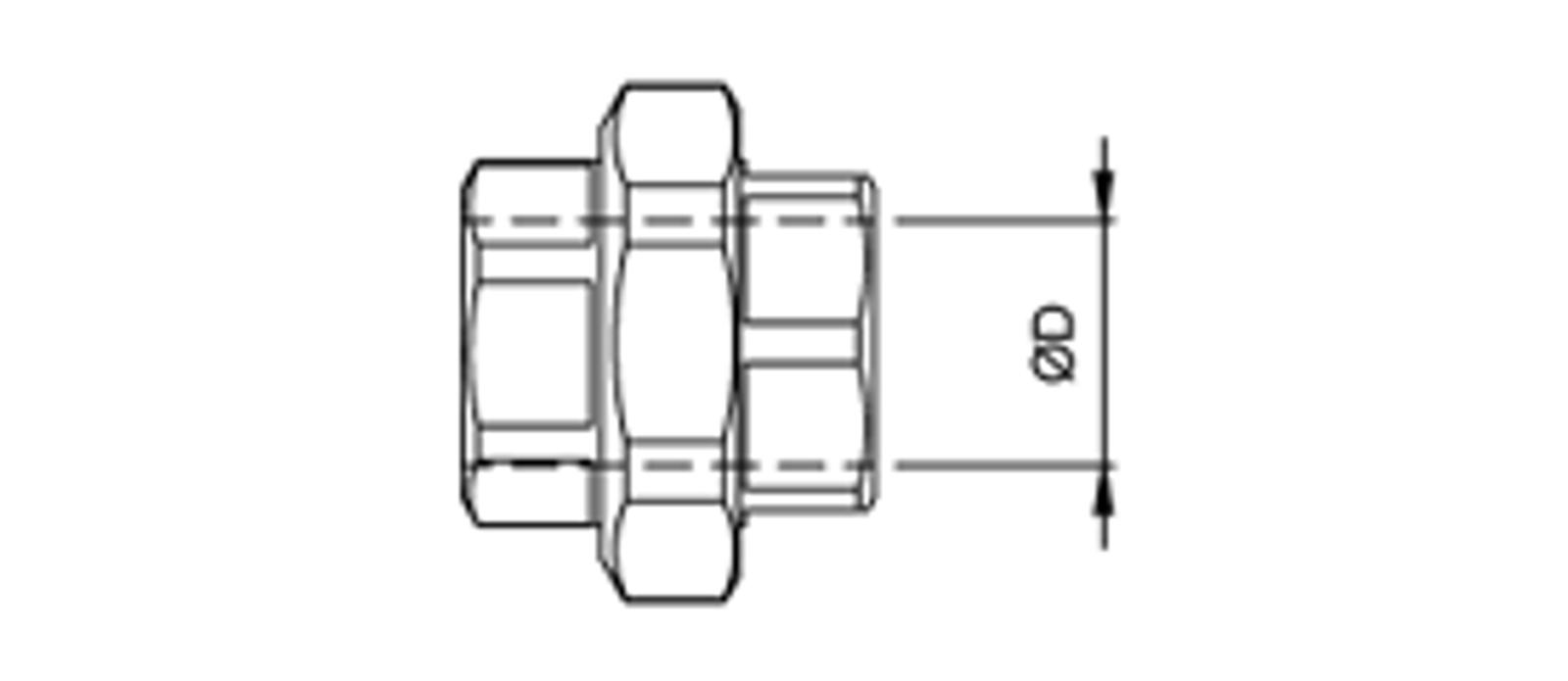

ØD (BSP)

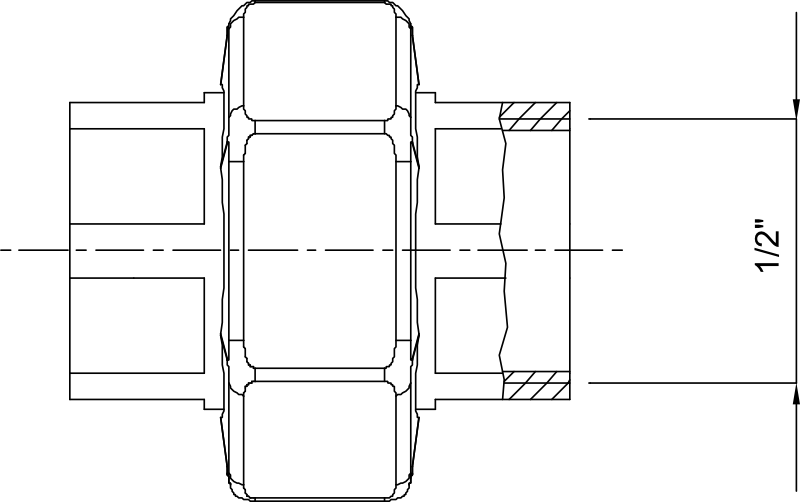

09B.UNIF.G04

½"

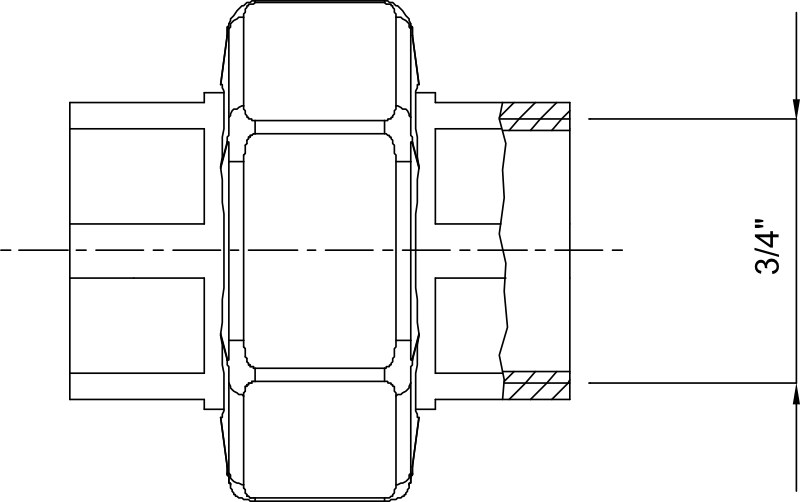

09B.UNIF.G05

¾"

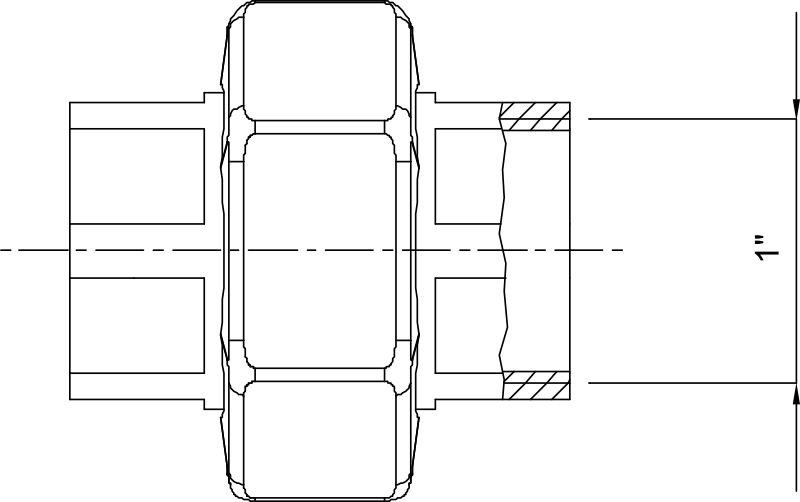

09B.UNIF.G06

1" (25,4 mm)

09B.UNIF.G07

1"¼

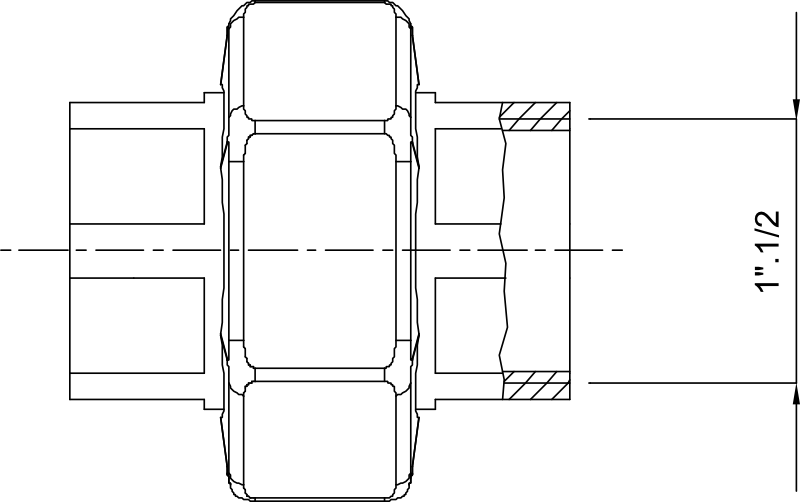

09B.UNIF.G08

1"½

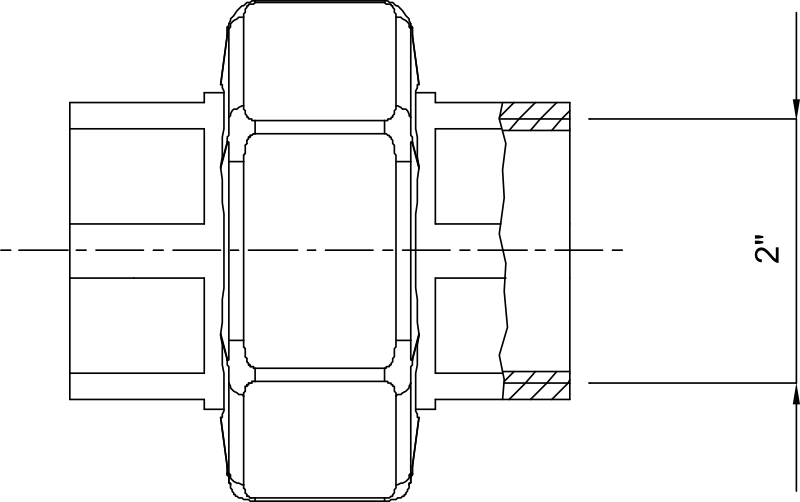

09B.UNIF.G10

2"
