Appliques

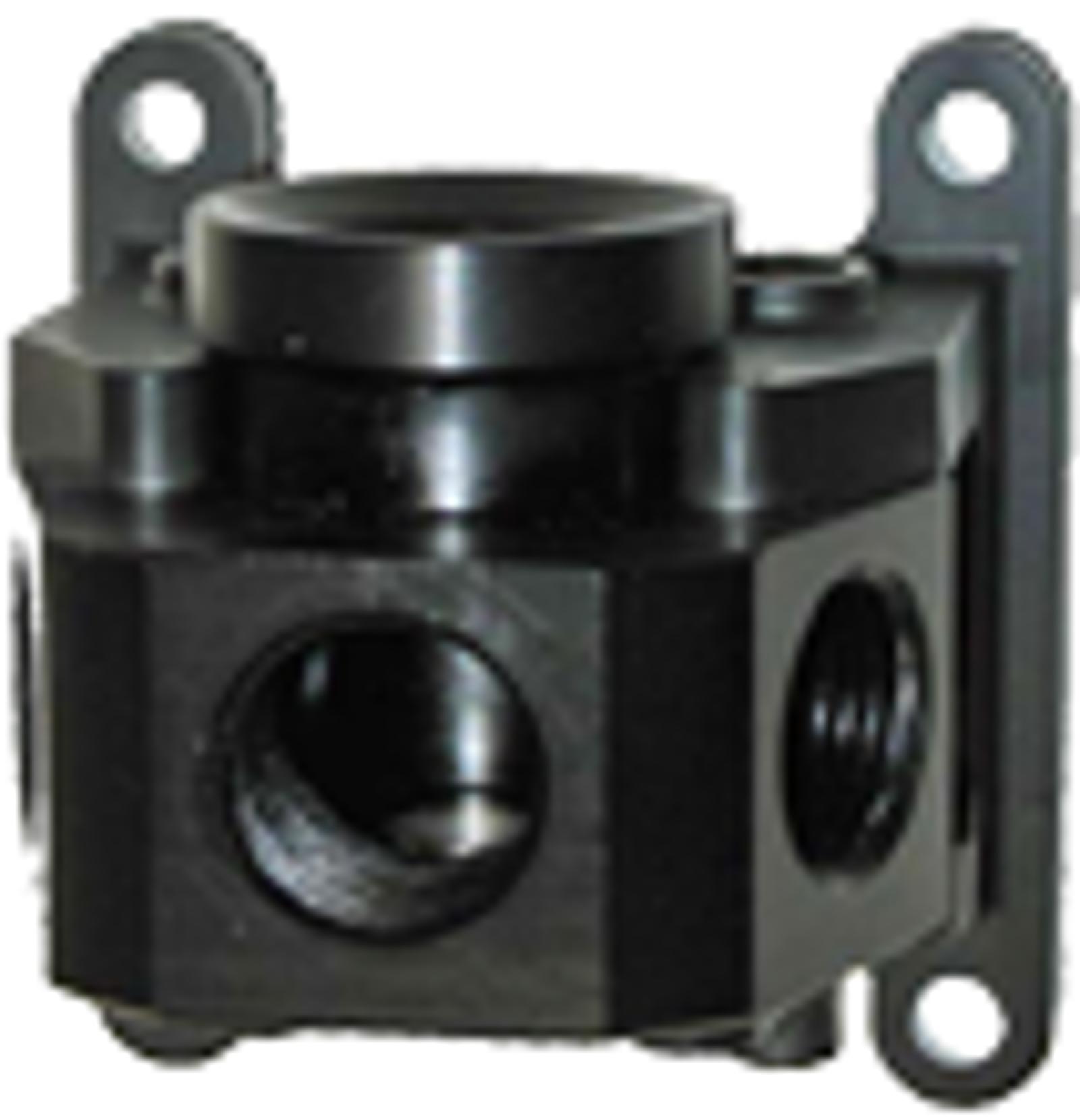

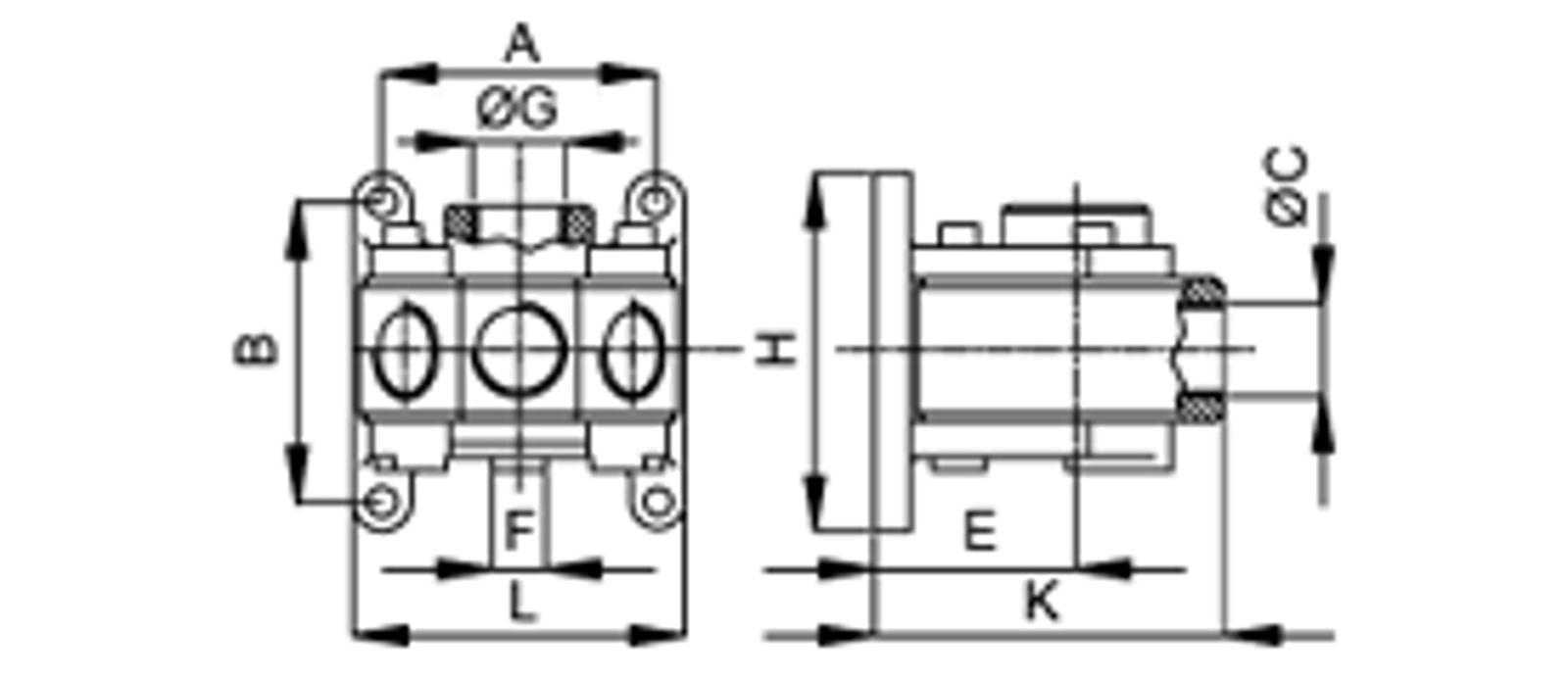

3PORTS APPLIQUE - FEMALE

Code

ØG (BSP)

ØC (BSP)

H (mm)

E (mm)

K (mm)

A (mm)

B (mm)

L (mm)

F (BSP)

09P.AP3F.G05.G04

¾"

½"

81

45

75

60

67

74

¼"

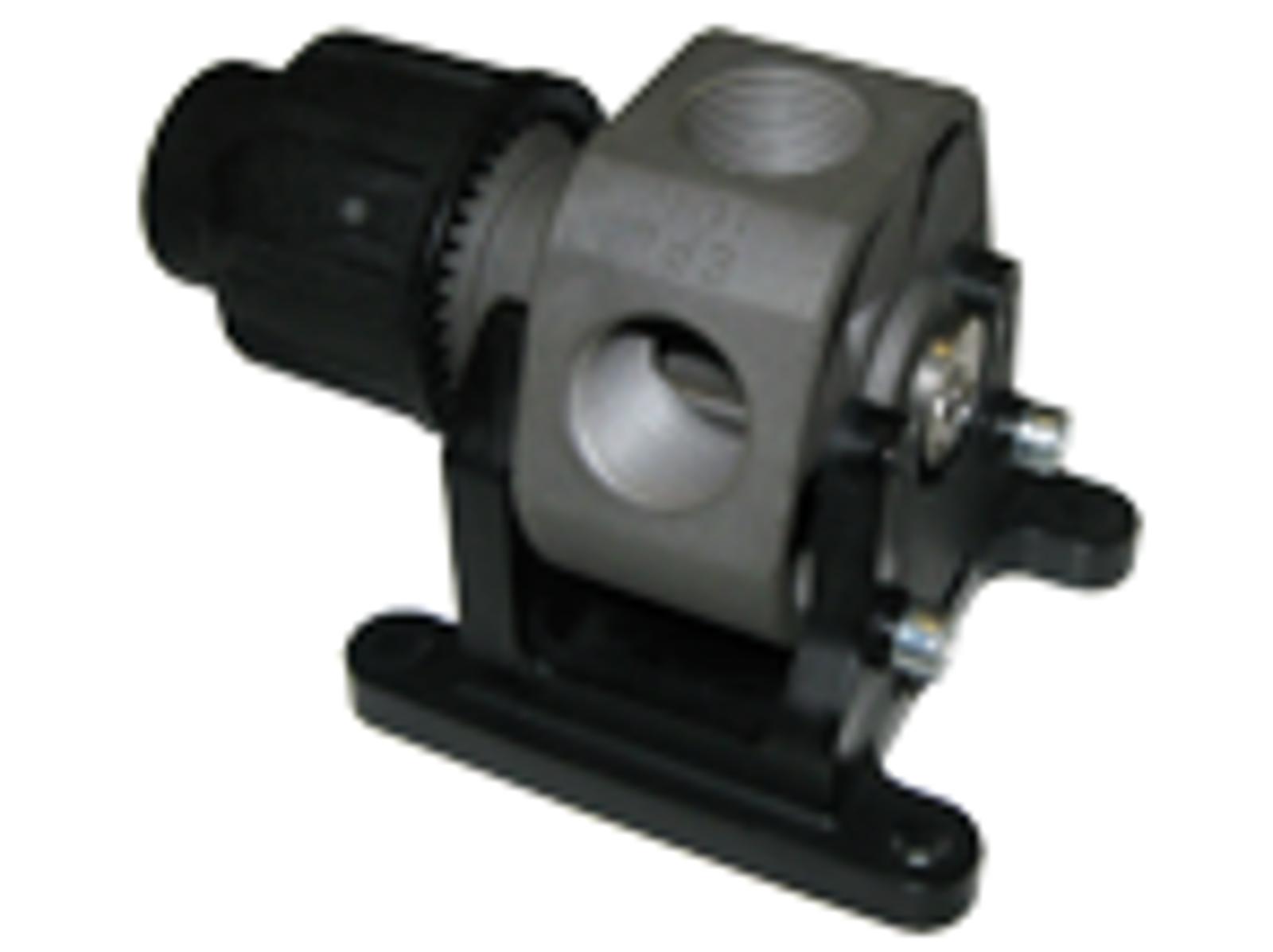

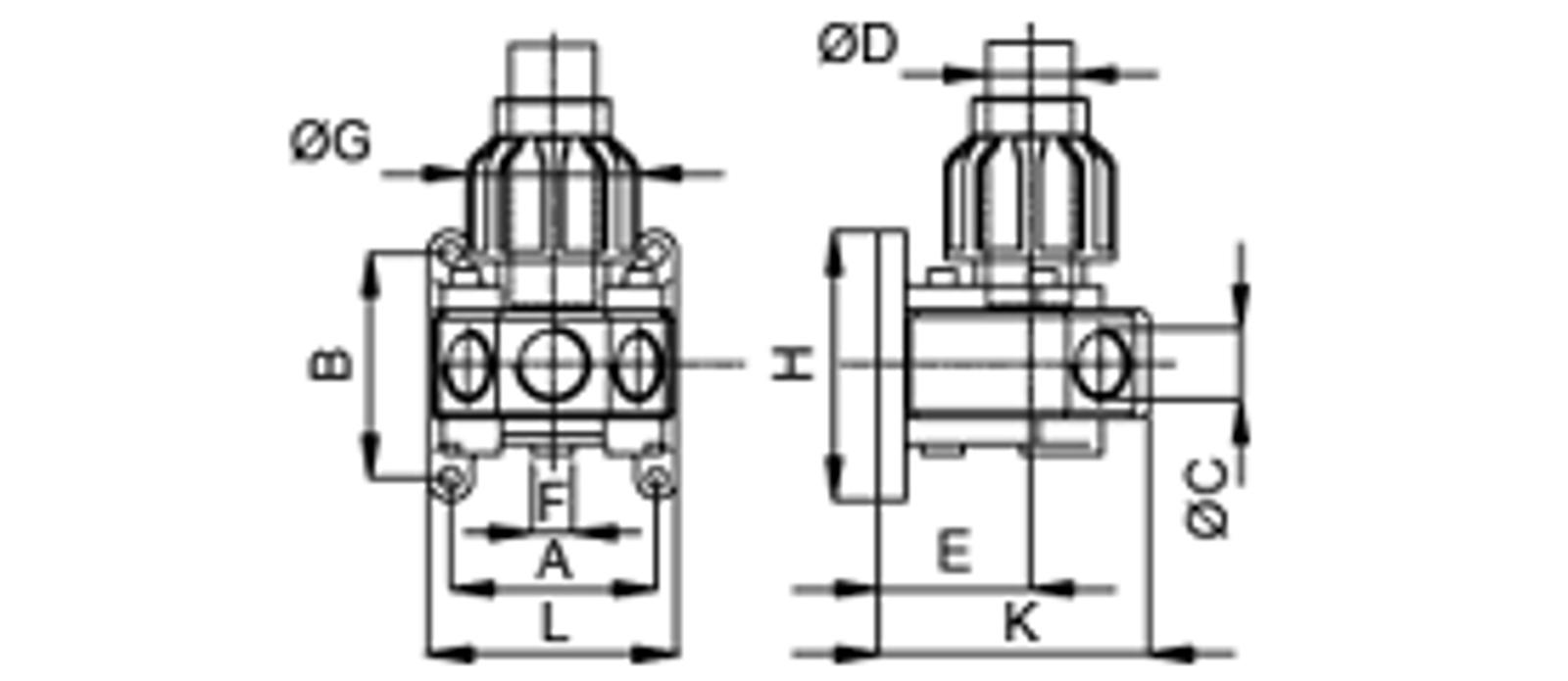

3PORTS APPLIQUE

Code

ØG (mm)

ØD (mm)

ØC (BSP)

H (mm)

E (mm)

E (mm)

A (mm)

B (mm)

L (mm)

F (BSP)

09P.AP3T.020.G04

43

20

½"

81

45

75

60

67

74

¼"

09P.AP3T.025.G04

52

25

½"

81

45

75

60

67

74

¼"

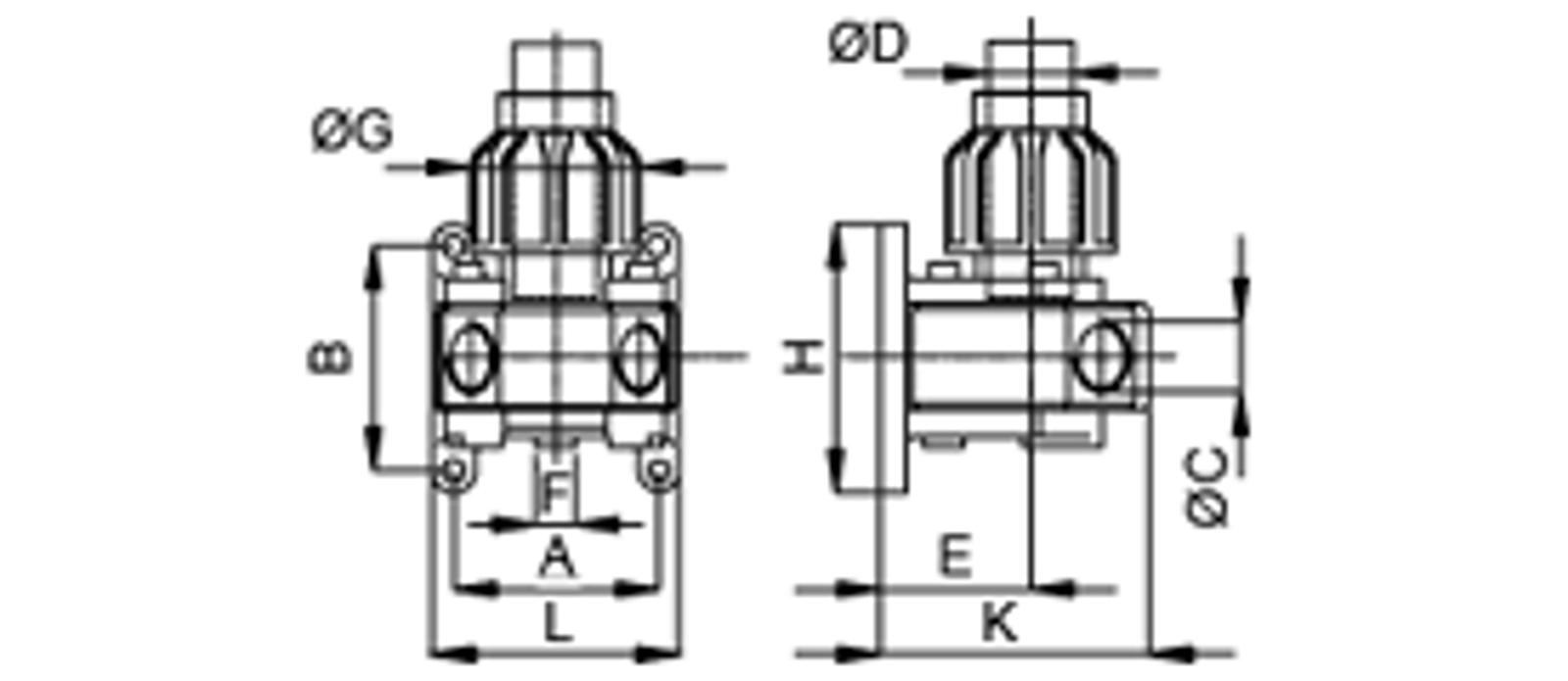

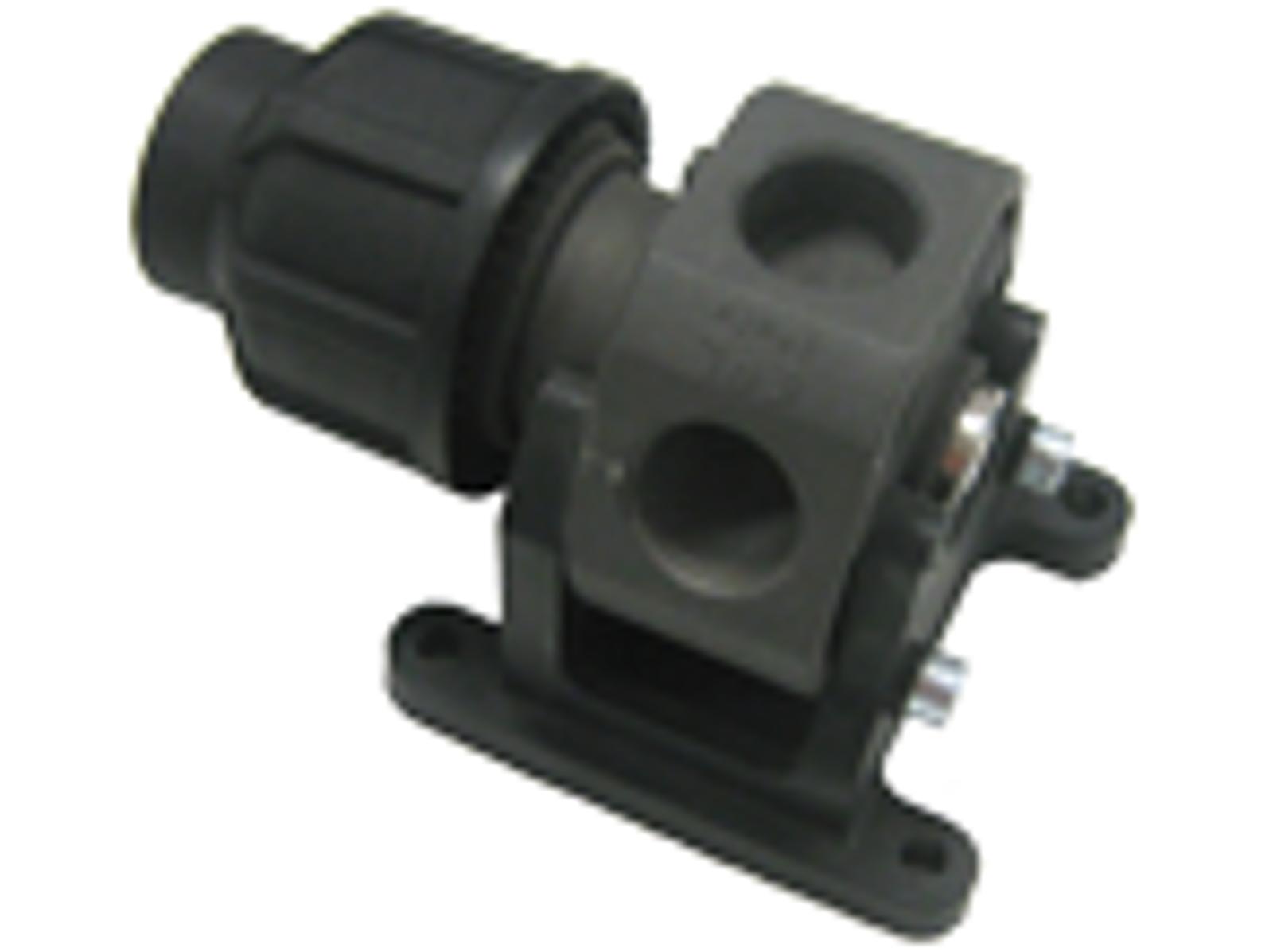

2PORTS APPLIQUE

Code

ØD (mm)

ØG (mm)

(BSP)

H (mm)

E (mm)

E (mm)

A (mm)

B (mm)

L (mm)

F (BSP)

09P.AP2T.020.G04

20

43

½"

81

45

75

60

67

74

¼"
