Back to the product list

Elbows

Compressed air tubes fittings and valves elbows technical drawing 20| piping system | OMI
Compressed air tubes fittings and valves elbows technical drawing 21| piping system | OMI
Compressed air tubes fittings and valves elbows technical drawing 22| piping system | OMI
Compressed air tubes fittings and valves elbows technical drawing 23| piping system | OMI

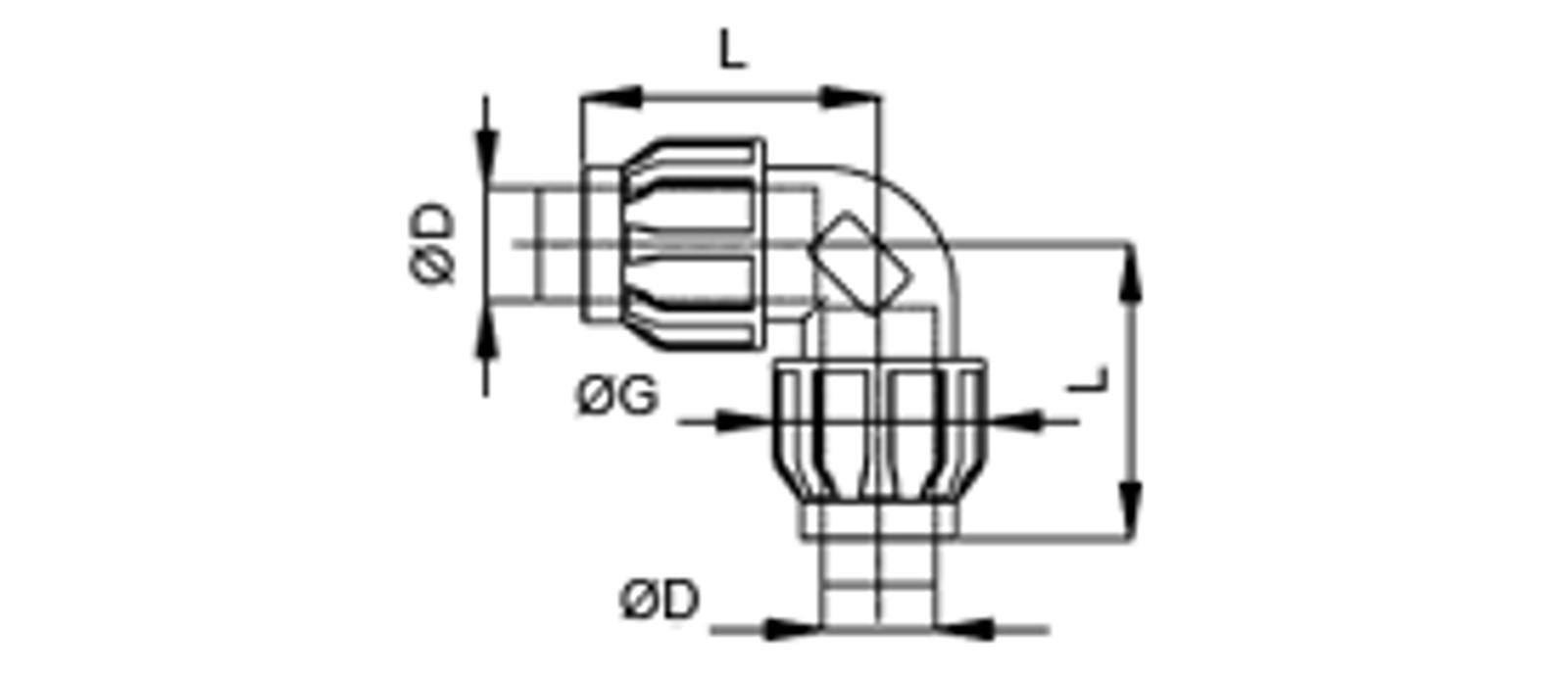

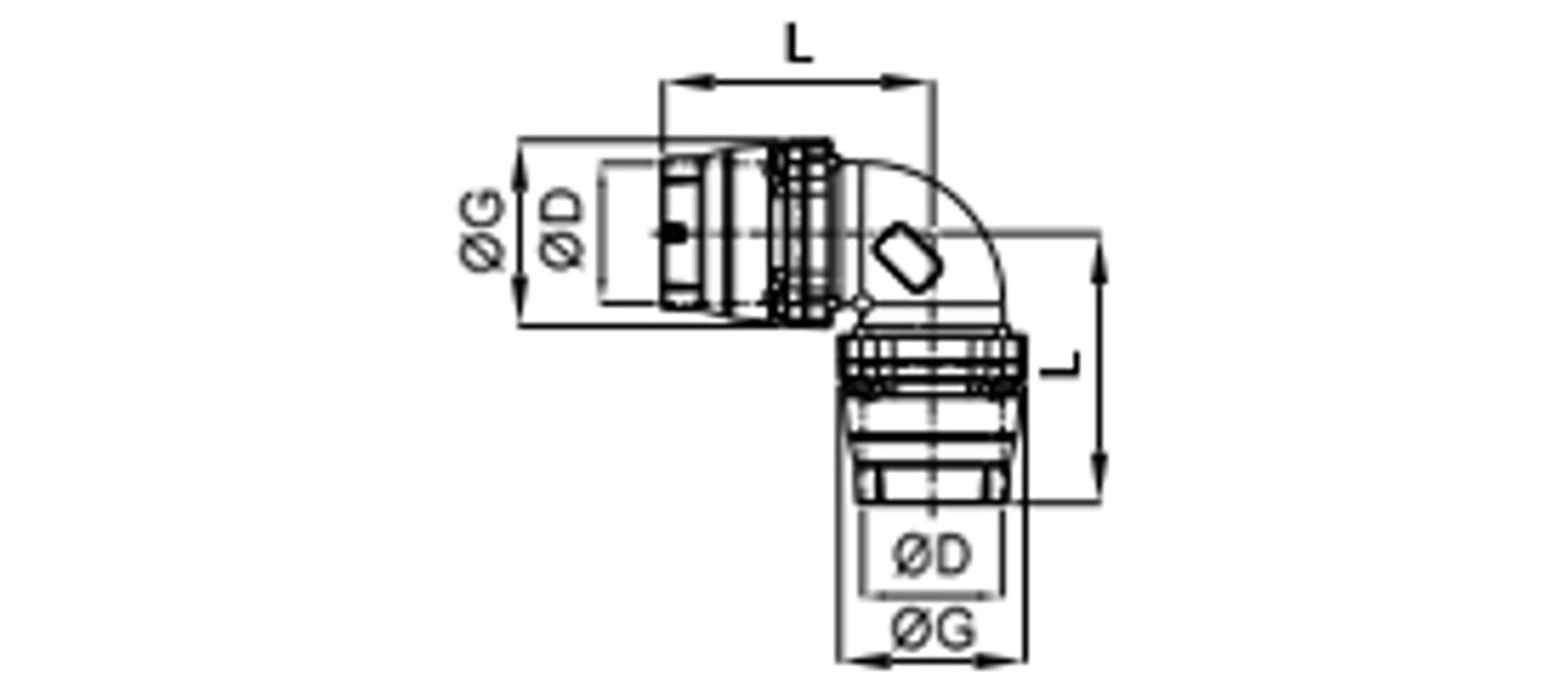

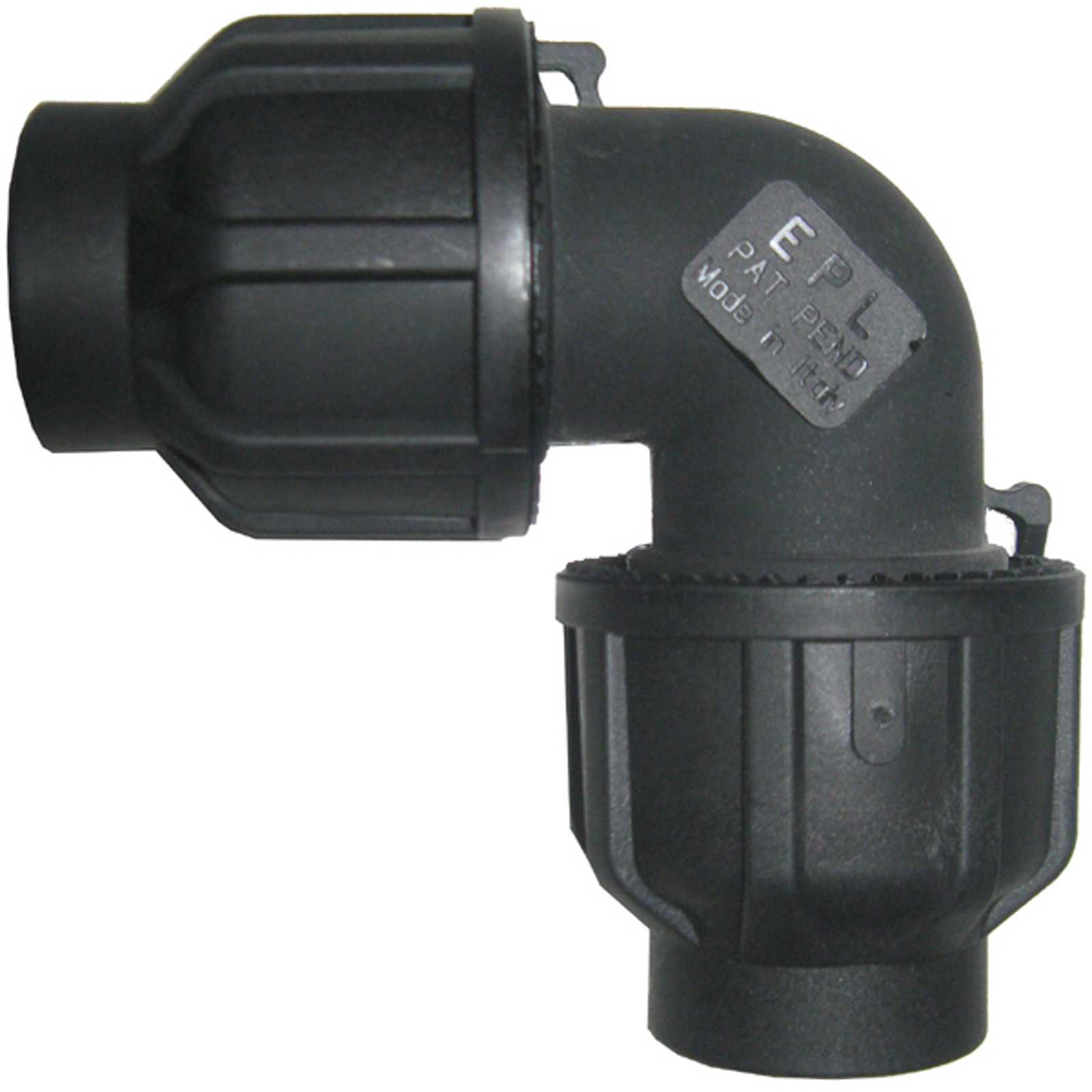

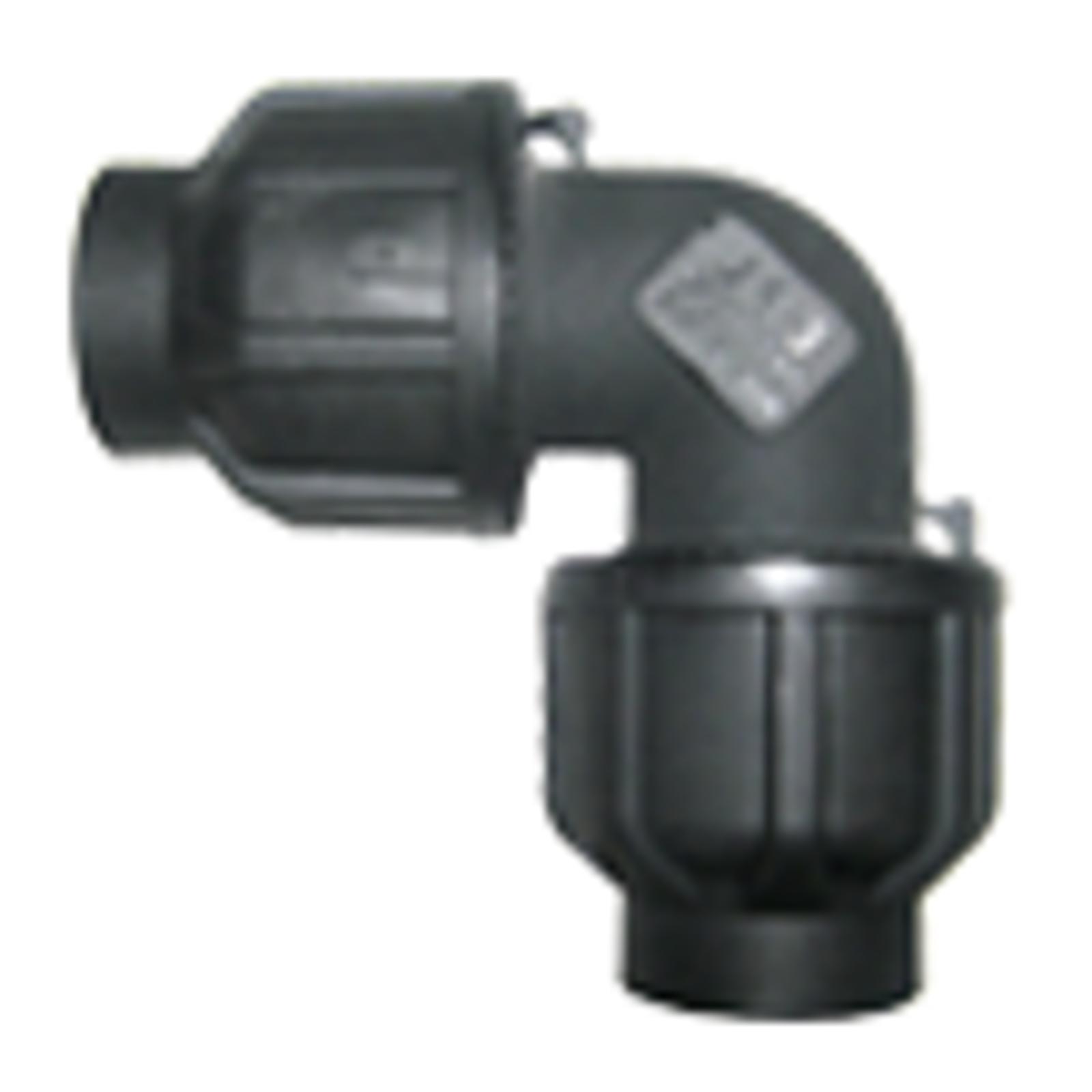

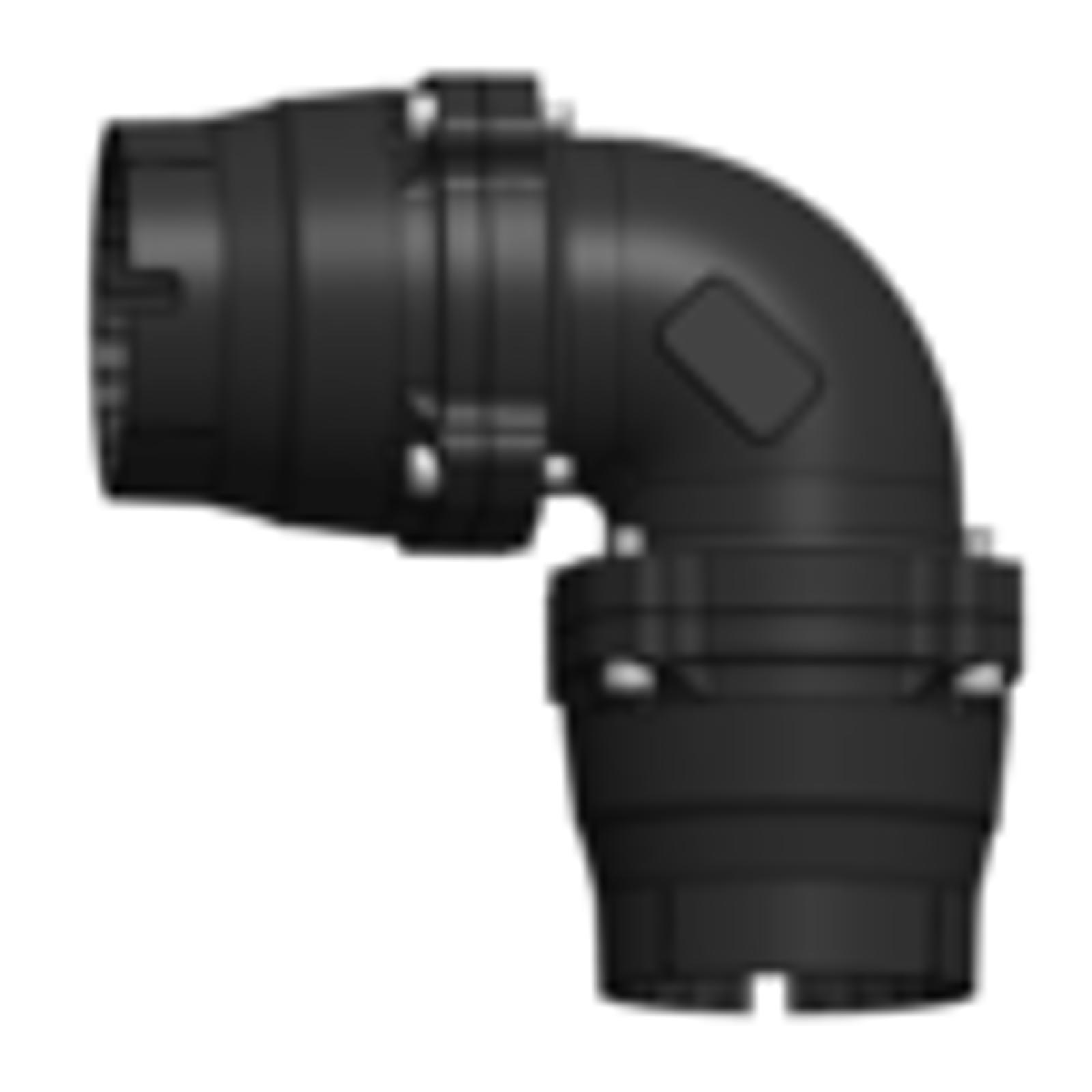

90° ELBOW

Code

ØD (mm)

ØG (mm)

L (mm)







09P.ELBD.020

20

43

77







09P.ELBD.025

25

51

77







09P.ELBD.032

32

61

88







09P.ELBD.040

40

75

105







09P.ELBD.063

63*

105

138







09P.ELBD.080

80**

140

191,5







09P.ELBD.110

110**

176

212,5







09P.ELBD.160

158**

235

278

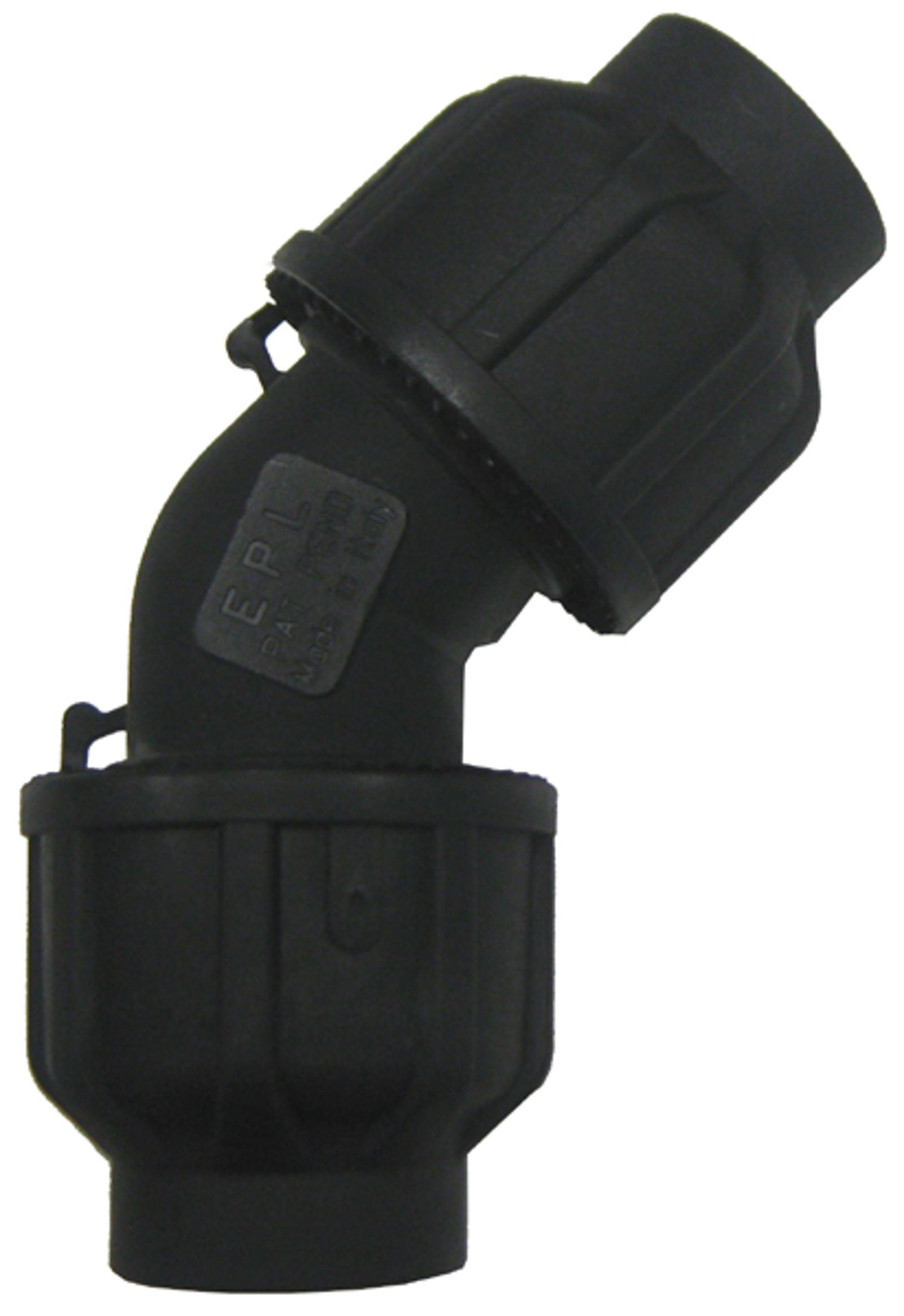

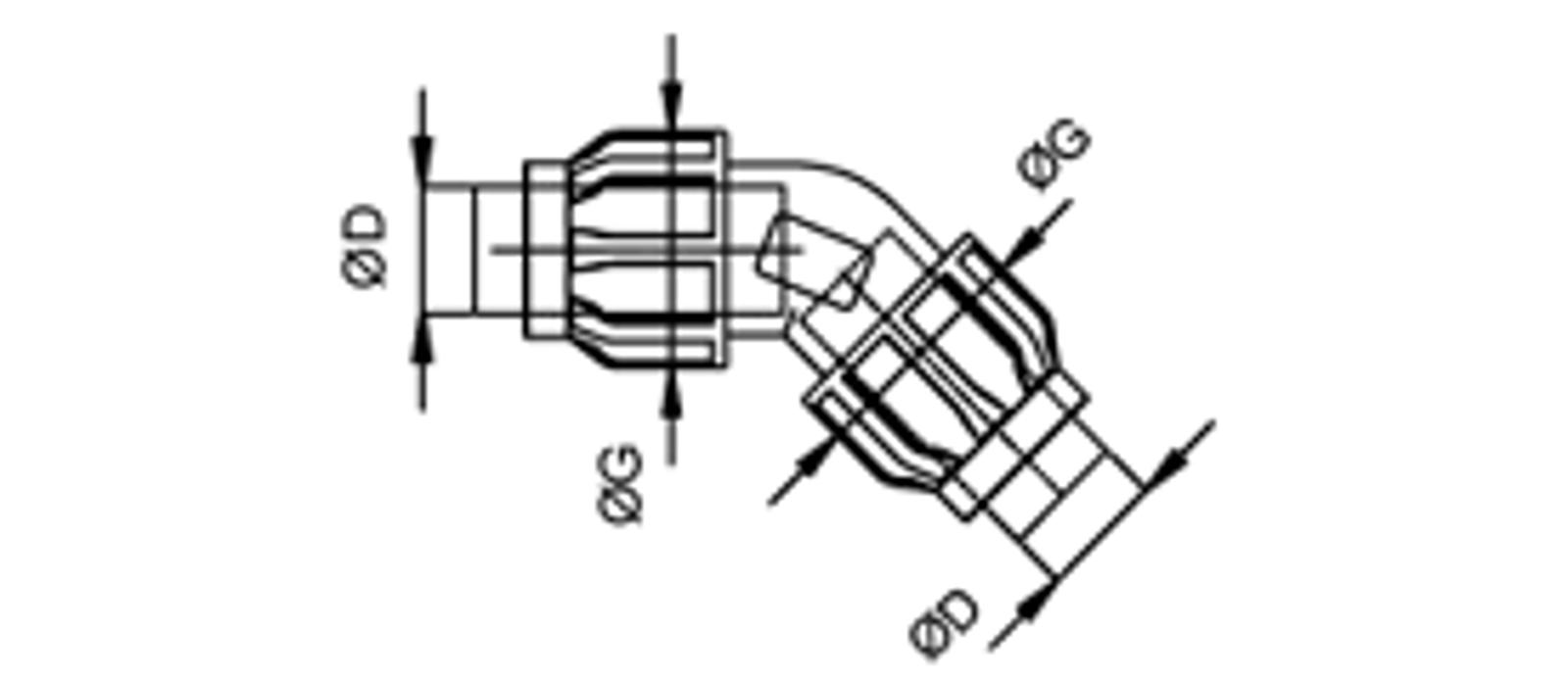

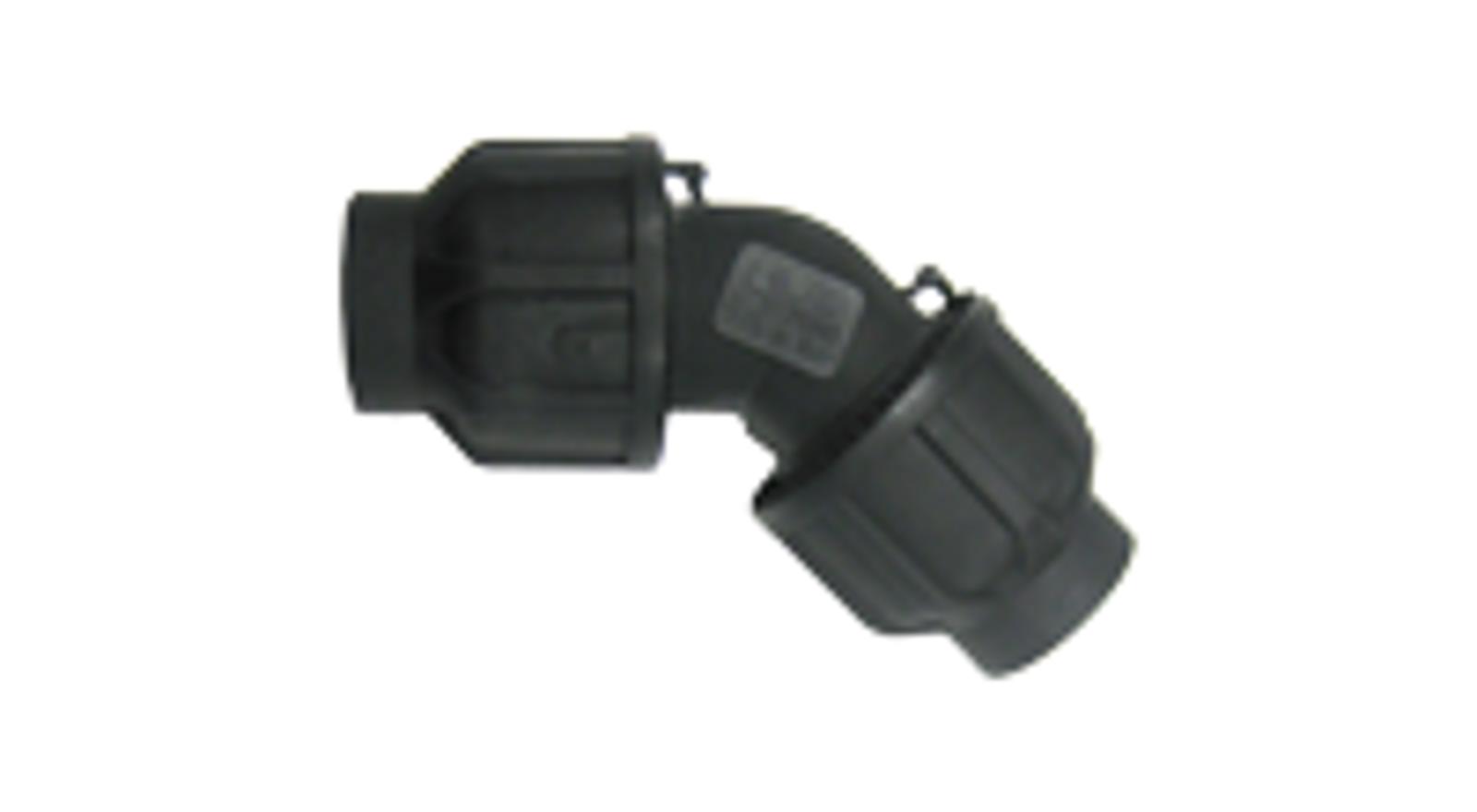

45° ELBOW

Code

ØD (mm)

ØG (mm)









09P.ELBH.020

20

43









09P.ELBH.025

25

51









09P.ELBH.032

32

61









09P.ELBH.040

40

75









09P.ELBH.063

63*

105

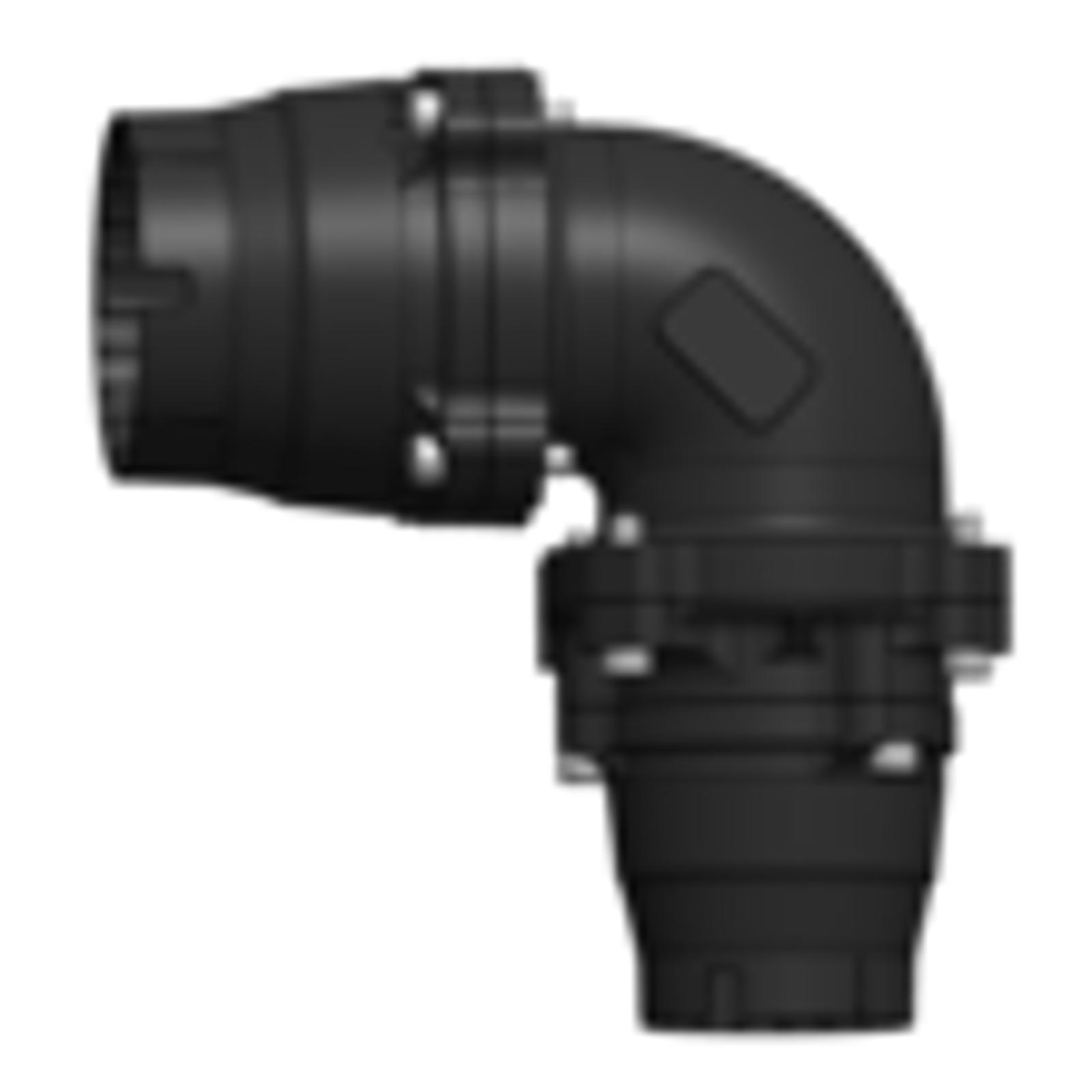

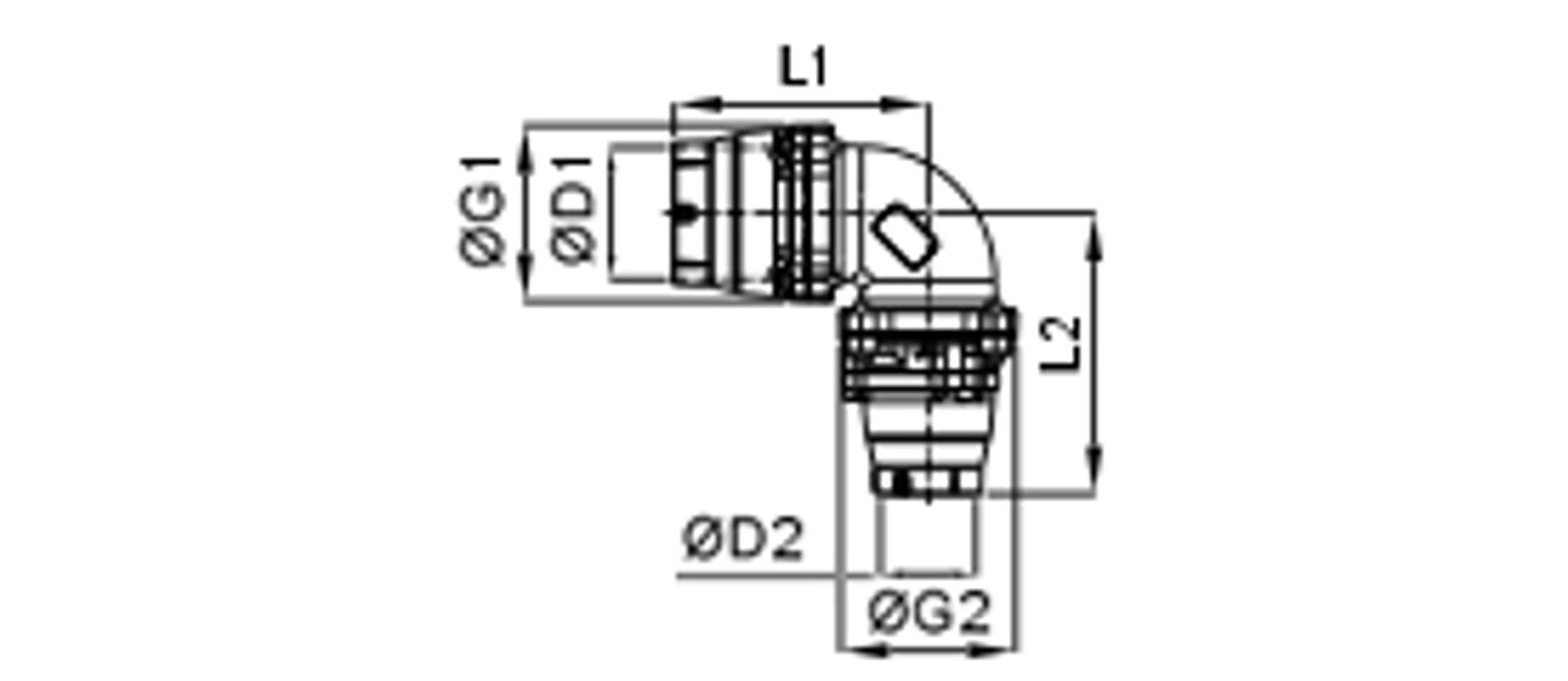

REDUCING 90° ELBOW







Code

ØD1 (mm)

 ØD2 (mm)

 ØD2 (mm)

ØG2 (mm)

L1 (mm)

L2 (mm)

09B.ELBR.080.040

80

40

140

105

191,5

196,5

09B.ELBR.080.063

80

63*

140

105

191,5

197

09B.ELBR.110.040

110

40

176

140

212,5

233,5

09B.ELBR.110.063

110

63*

176

140

212,5

233,5

09B.ELBR.110.080

110

80

176

140

212,5

212,5

09B.ELBR.160.110

158

110

235

176

278

286,5

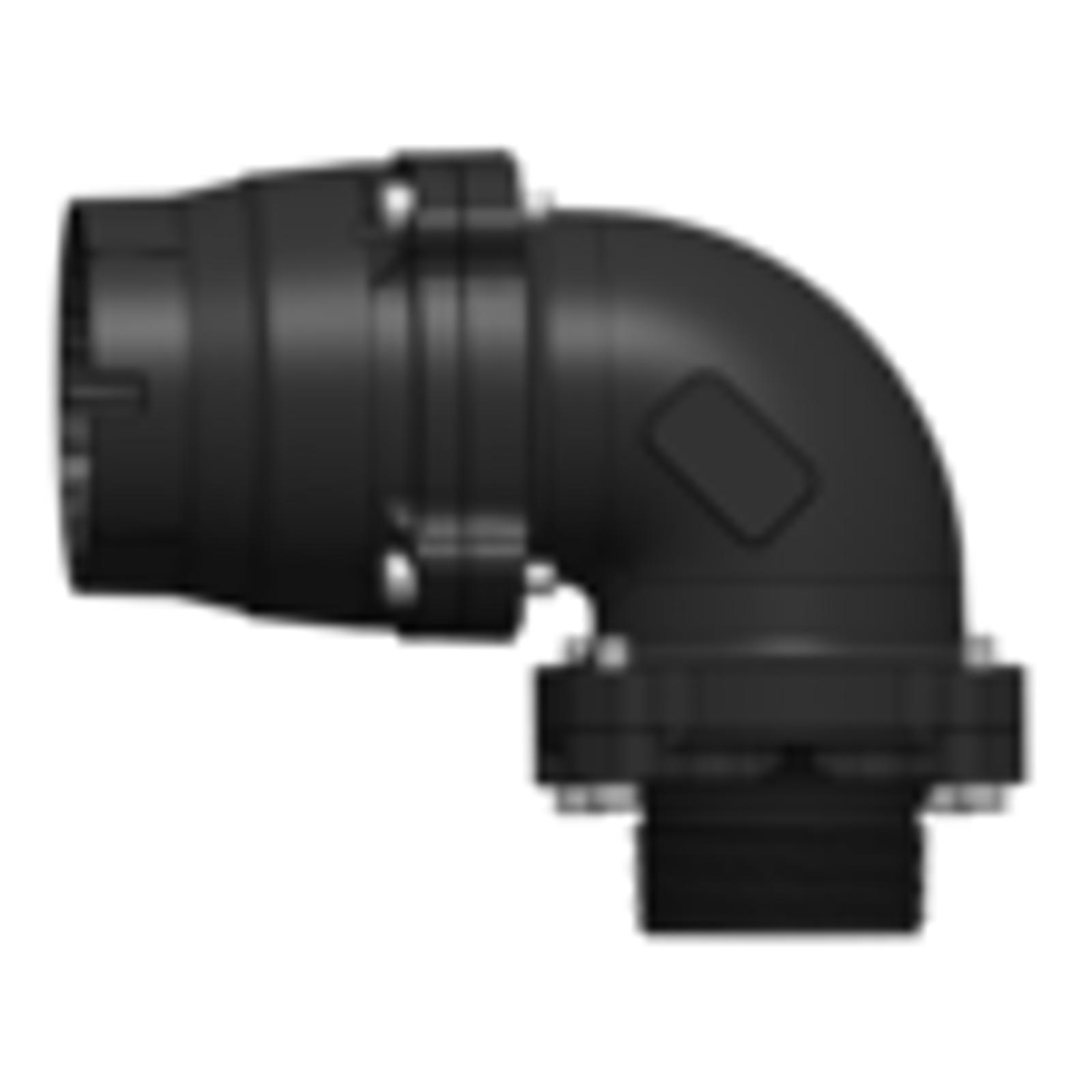

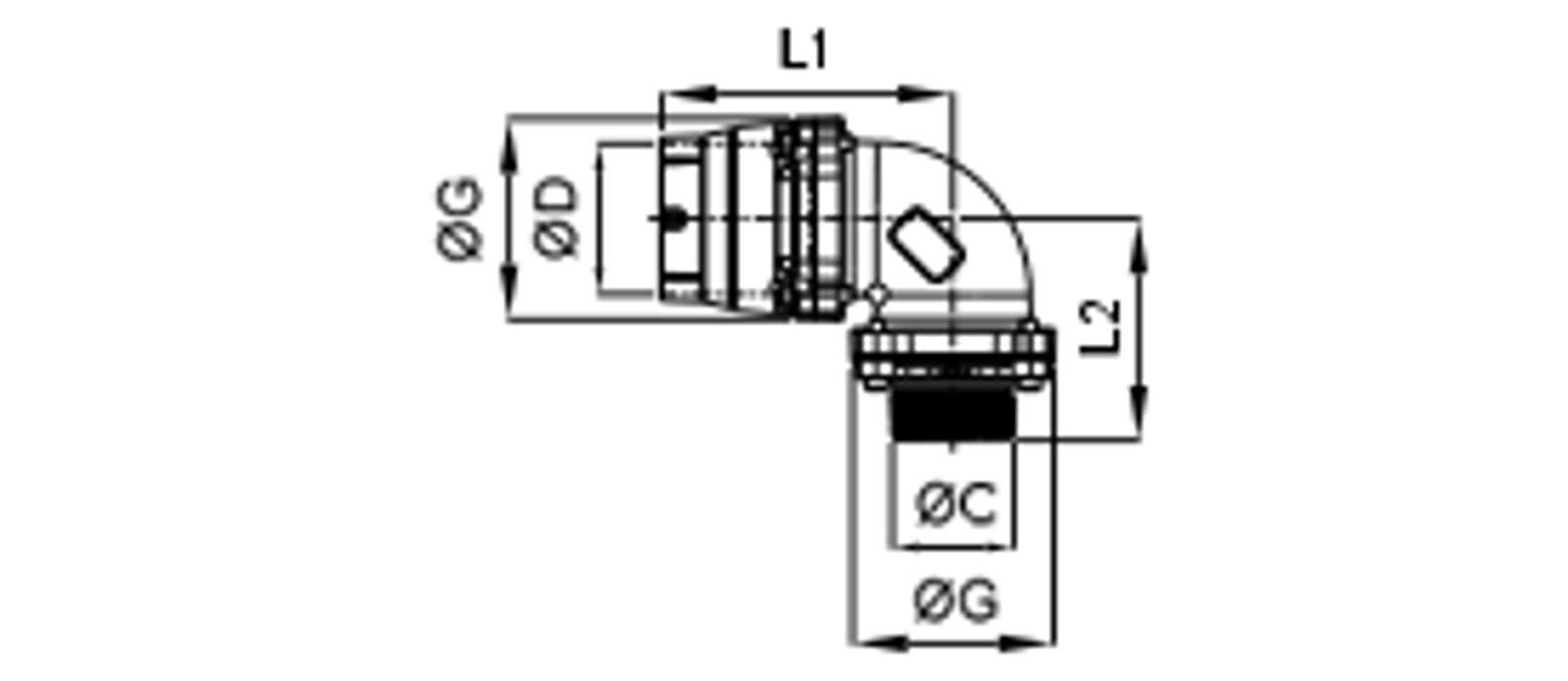

MALE THREAD 90° ELBOW

Code

ØD (mm)

ØC (BSP)

ØG (mm)

L1 (mm)

L2 (mm)



09B.ELBT.080.G12

80

3"

140

191,5

151



09B.ELBT.110.G12

110

3"

176

212,5

161



09B.ELBT.160.G12

158

3"

235

278

210
