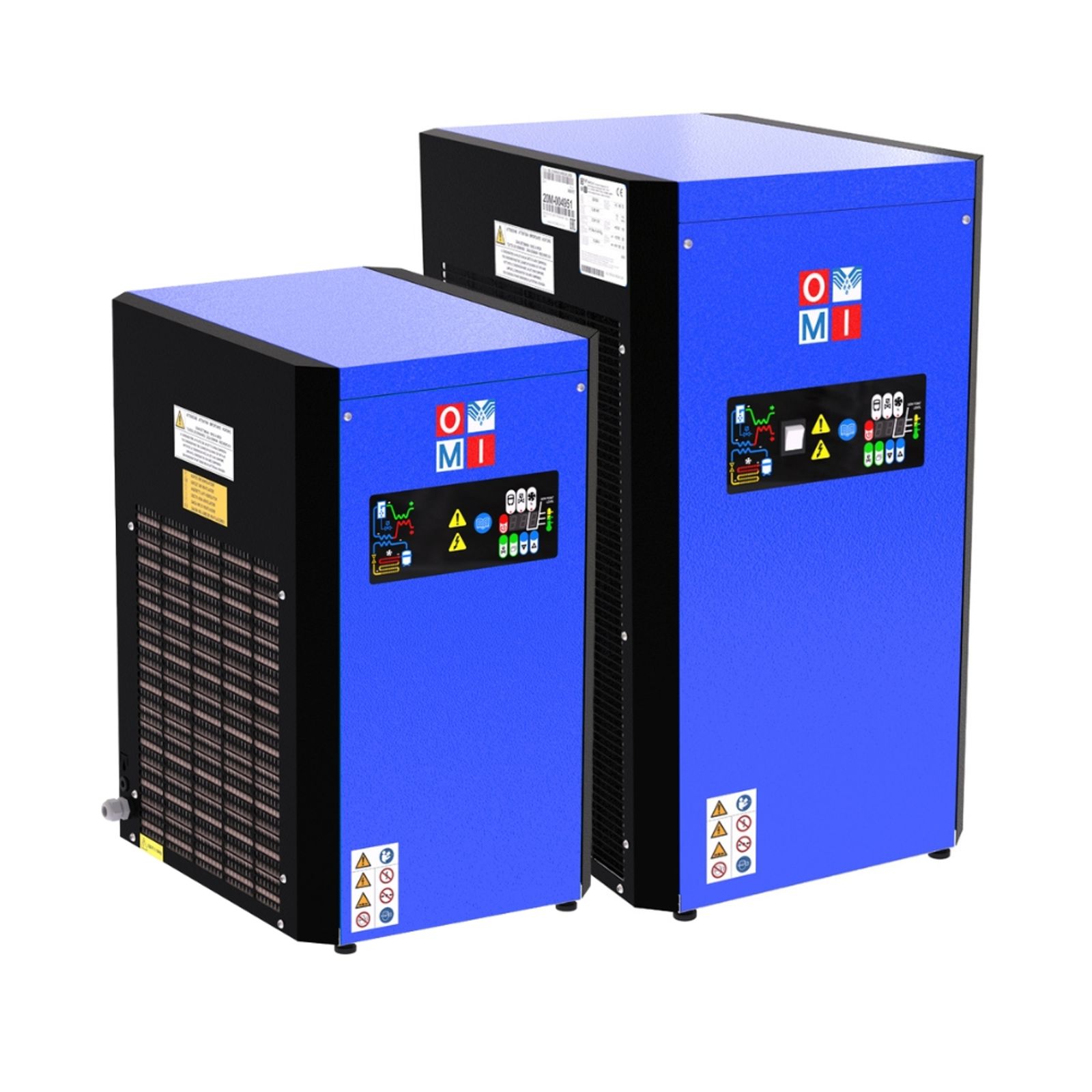

“refrigerated air dryers HTD high temperature

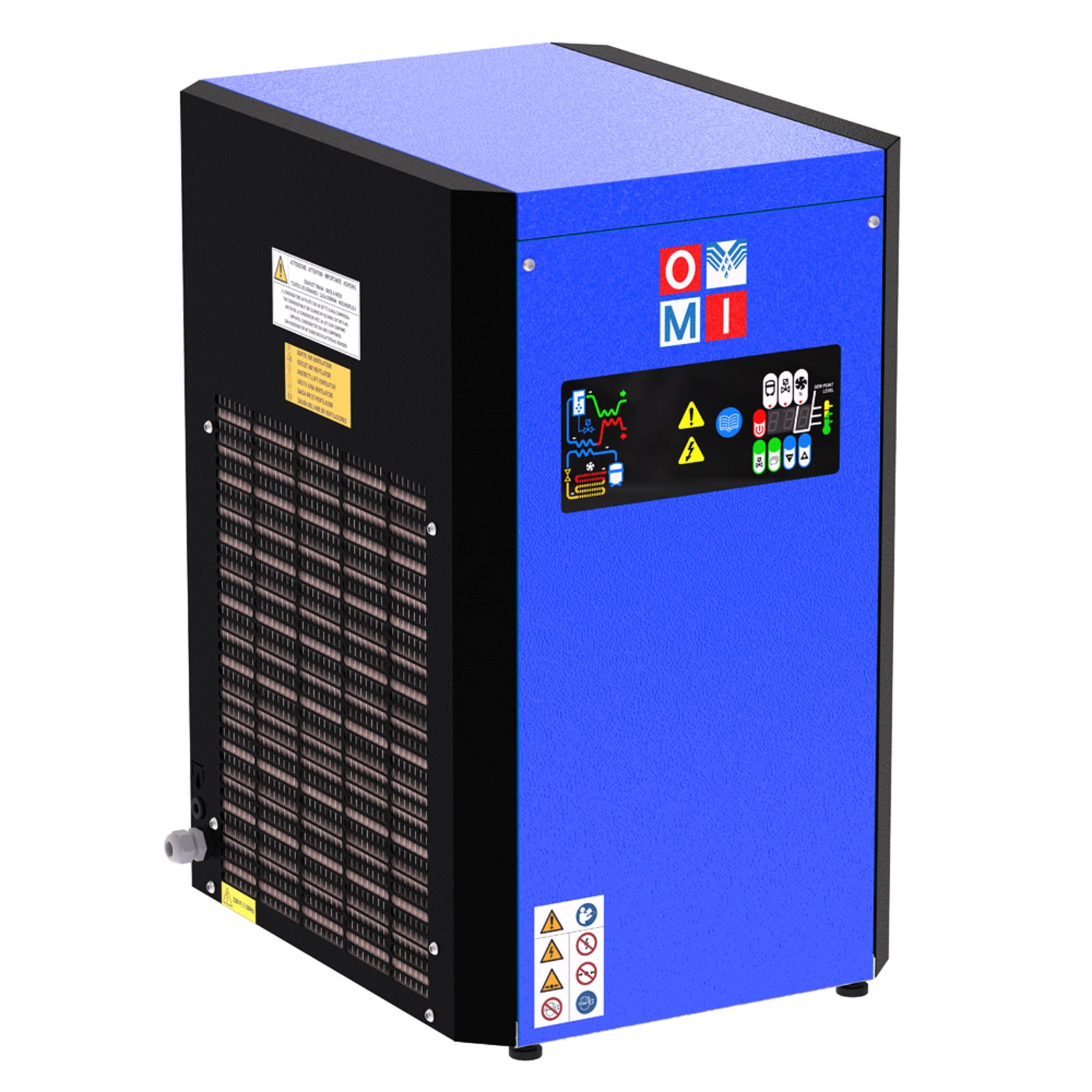

Refrigeration air dryers high temperature refrigeration dryers product image 2 on white background| compressed air treatment | OMI

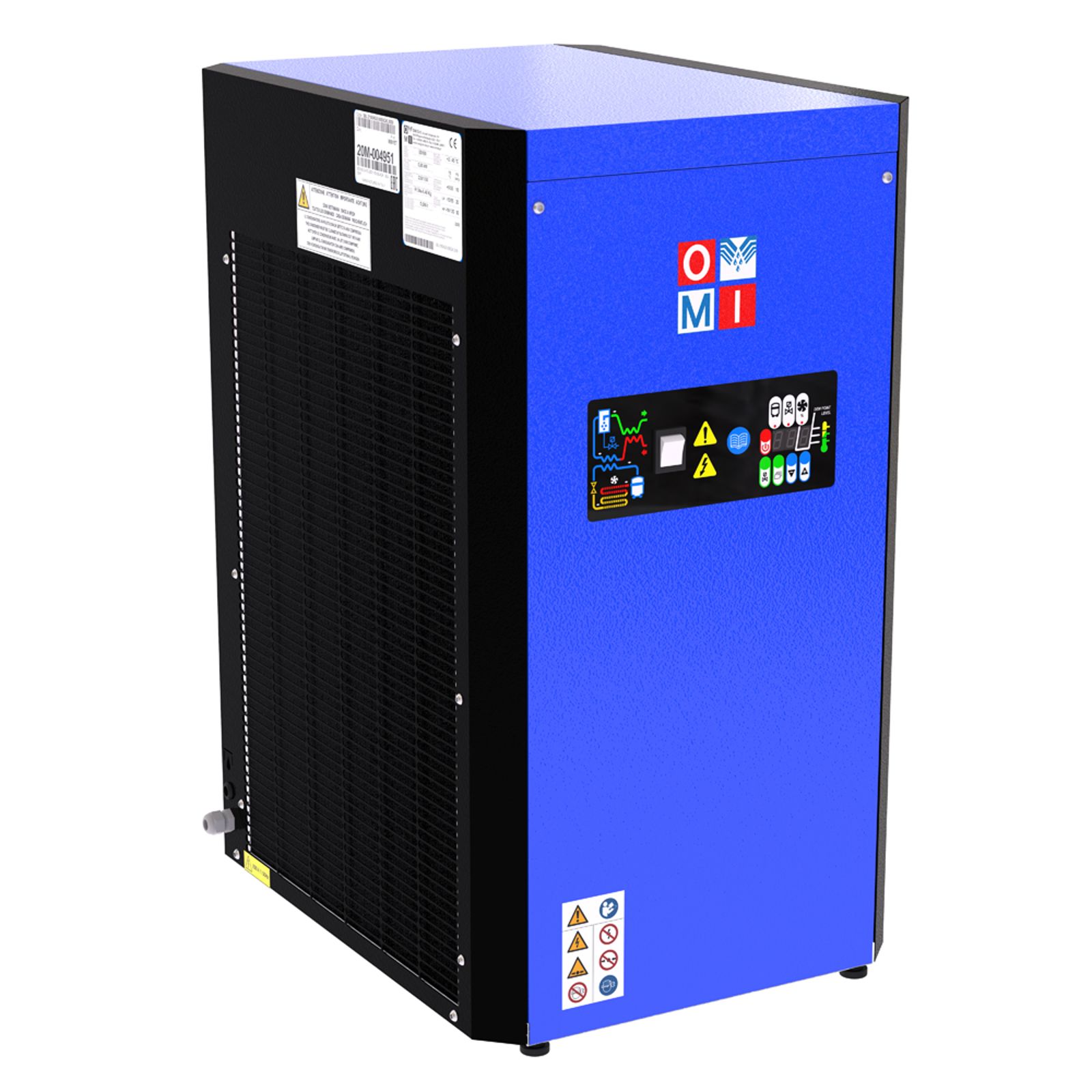

Refrigeration air dryers high temperature refrigeration dryers product image 3 on white background| compressed air treatment | OMI
“refrigerated air dryers HTD high temperature
Refrigeration air dryers high temperature refrigeration dryers product image 2 on white background| compressed air treatment | OMI
Refrigeration air dryers high temperature refrigeration dryers product image 3 on white background| compressed air treatment | OMI
Back to the product list

HTD High Temperature Air Dryers

AVAILABLE OPTIONS:
  • All models - 230V/1ph/60Hz
  • All models - 115V/1ph/60Hz
  • All models - NPT connections
  • All models - UL and CSA certified
  • Optional drain: "intelligent" no-loss (Standard: timed drain)

High-temperature inlet air dryer (up to 82°C). This special dryers enclose an after cooler and a filter/ceramic separator. In this way we achieve remarkable space saving and lower the overall pressure drop, without mentioning the time saving for the assembly.

On OMI HTD series all single component’s operations are combined in a package suitable to pre-cool, separate carried liquids and solids, dry, separate and drain condensation contained in the compressed air with a result of higher quality free air.

A single condensate drain is used for the entire package.

Model

Code

Connection
(BSP)

Flow Rate
(m³/h)

Flow Rate
(l/min)

Flow Rate
(CFM)

Nominal Power
Consumption (kW)

ISO8573-1:2010
Classification

HTD 35

08C.0035CGO

1/2"

35

583

21

0.16

Water content: class 4,
Dew point: 3°C / 27°F

HTD 50

08C.0050CG0

1/2"

50

833

29

0.28

Water content: class 4,
Dew point: 3°C / 27°F

HTD 70

08C.0070CGO

1/2"

70

1167

41

0.41

Water content: class 4,
Dew point: 3°C / 27°F

HTD 102

08C.0102CG0

3/4"

102

1700

60

0.41

Water content: class 4,
Dew point: 3°C / 27°F

HTD 140

08C.0140CG0

3/4"

140

2333

82

0.5

Water content: class 4,
Dew point: 3°C / 27°F

HTD 170

08C.0170CGO

3/4"

170

2833

100

0.61

Water content: class 4,
Dew point: 3°C / 27°F



STANDARD REFERENCE CONDITIONS

  • Ambient temperature: 25°C (50°C max)
  • Working pressure: 7 bar
  • Inlet air temperature: 60°C (82°C max)
  • Dew point: 3°C

STANDARD VOLTAGE

Models

Electrical supply

Refrigerant gas

Noise level

Standard / Standard

Optional / Opzionale

V/ ph / Hz

V / ph / Hz

dB(A)

All models

230 / 1 / 50

115/1/60 - 230/1/60

R513A

<70

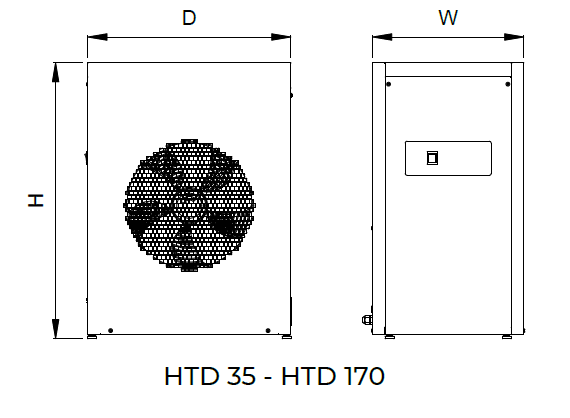

HTD 1 Dimensions Technical drawing.PNG



Model

Width - W (mm)

Depth - D (mm)

Height - H (mm)

Weight (kg)

HTD 35

385

500

661

32

HTD 50

385

500

661

34

HTD 70

385

500

661

34

HTD 102

423

567

771

54

HTD 140

423

567

771

55

HTD 170

423

567

771

62
