- Suitable from 0 to 6000 m3/h (compressor capacity)
- Rapid pay-back period thanks to the air zero feature and energy saving features
- 50bar option available (Zero 60A HP)
- Protection rating: IP65 (NEMA4)
- Side inlet adaptor for restrictive height heigh connections (optional)
- Corrosion resistant aluminium with EP coating
- Test feature button
- Visul alarm (LED indication)

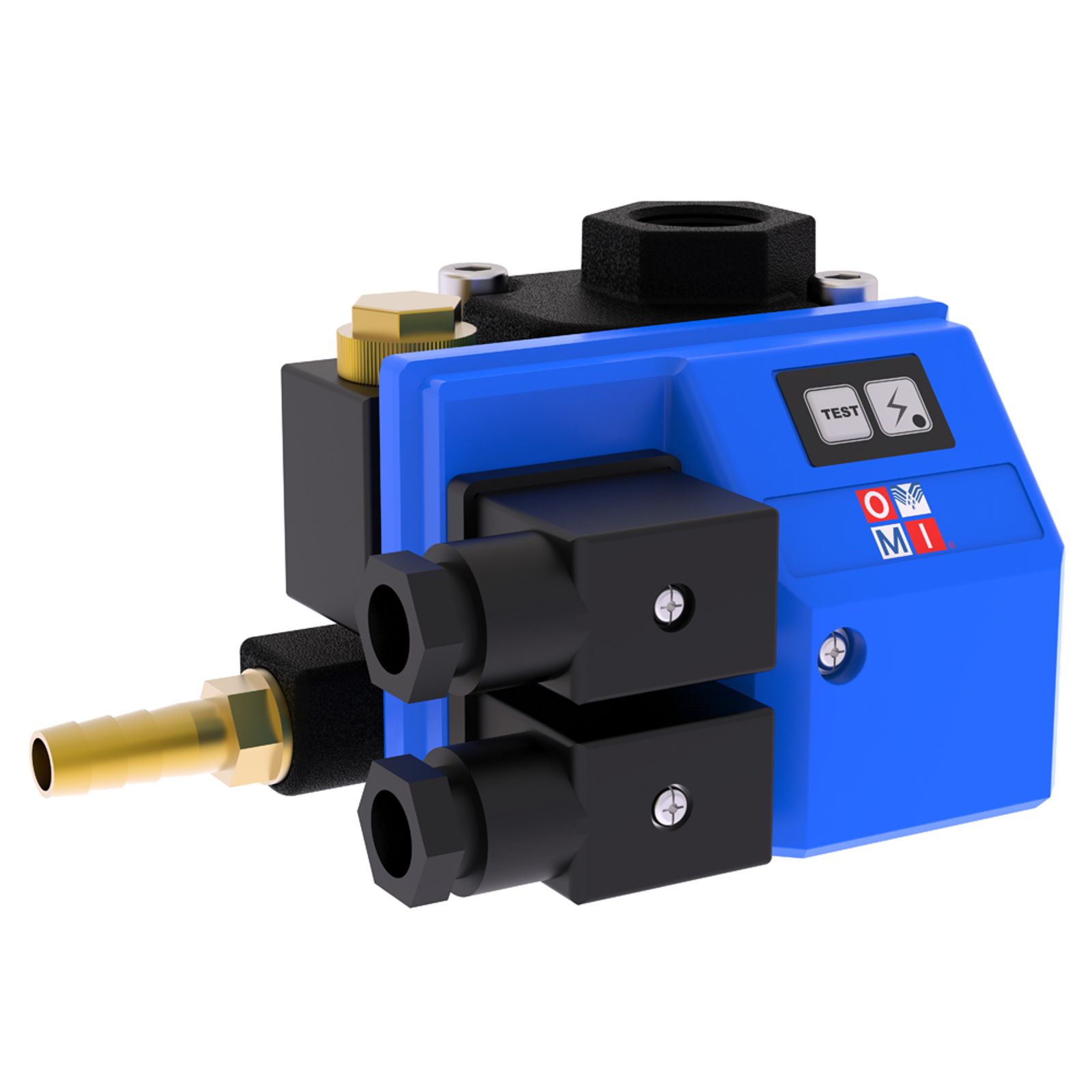

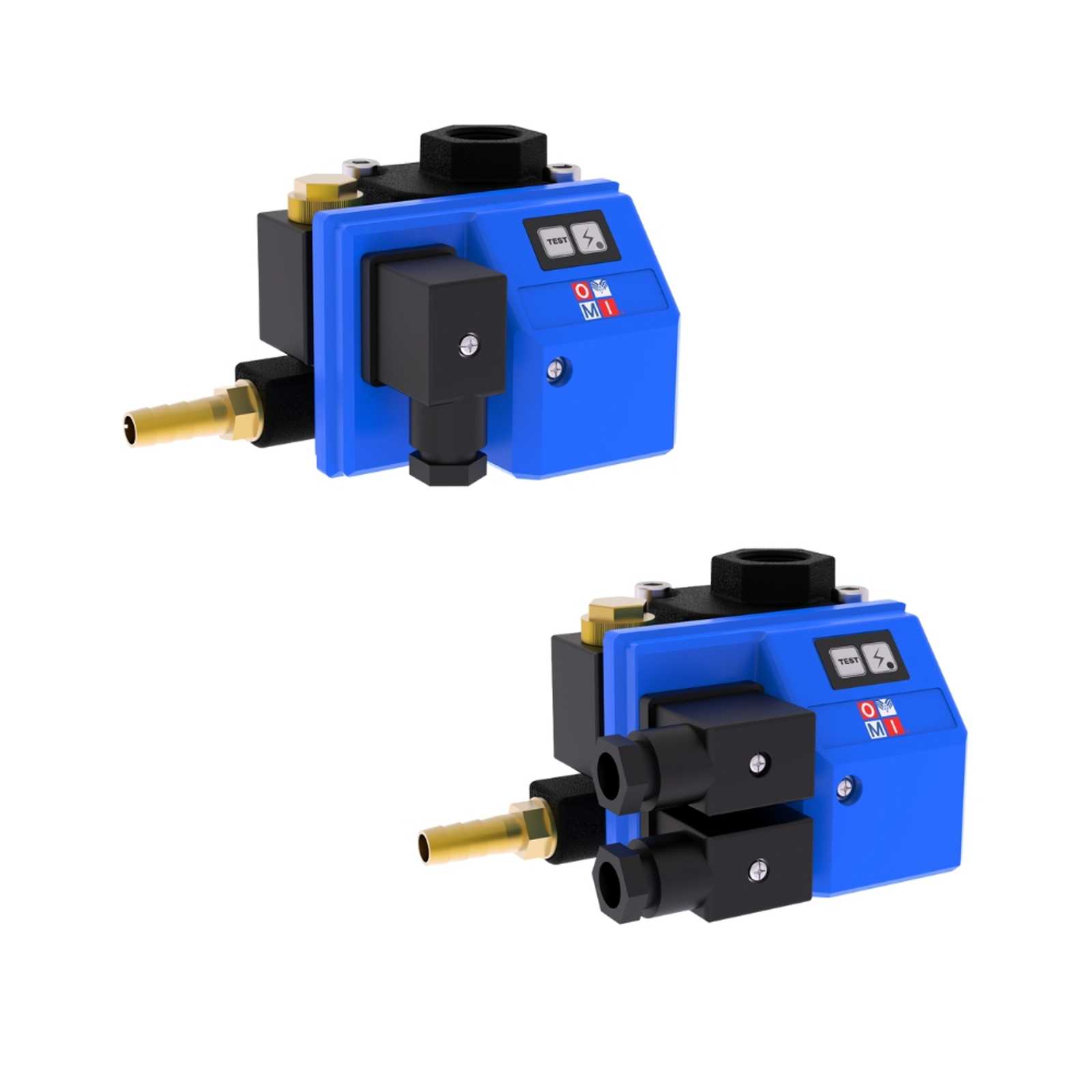

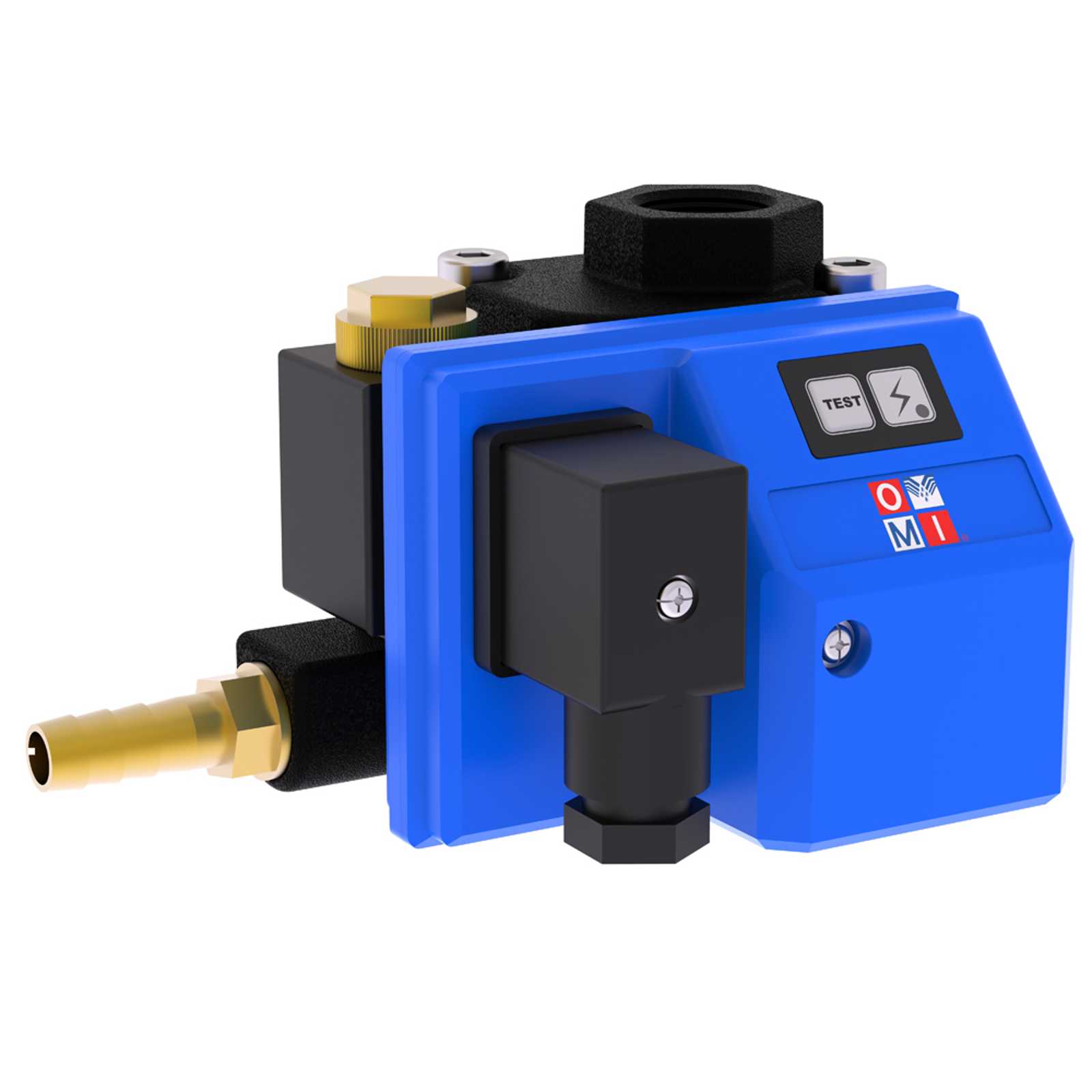

Model | ZERO 6/6A | ZERO 60A | ZERO 60A HP |
|---|---|---|---|
Max. compressor capacity | 600 m3/h | 6000 m3/h | |
Max. dryer capacity | 1200 m3/h | 12000 m3/h | |
Max. post filter capacity | 6000 m3/h | 60000 m3/h | |
Max. drainage capacity | 45 l/h @ 16 bar | 120 I/h @ 50 bar | 665 l/h @ 16 bar |
Min./max. system pressure | 0 -16 bar (0 - 230 psi) | 0 - 50 bar (0 - 725 psi) | |
Min./max. medium temp. | +1 - +50°C (34 - 122°F) | ||
Min./max. ambient temp. | +1 - +50°C (34 - 122°F) | ||
Supply voltage options | 115VAC / 230VAC | ||
Enclosure protection rating | IP65 (NEMA4) | ||
Connector type (power) | DIN 43650-B | ||
Inlet connection (BSP) | 1/2" | 1/2" 3 inlet options | |
Inlet height | 74mm | 110mm (top) and / e 75 & 15mm (side) | |
Side inlet adapter | Yes, optional | ||
Outlet connection | 1/4" BSP, with brass hose barb adapter | ||
Valve type | 2/2 way, direct acting | ||
Valve orifice | 2mm | 18mm | 4mm |
Valve seals | FPM | ||
Serviceable valve | Yes | ||
Integrated mesh strainer | Yes | ||
Housing material | Corrosion resistant aluminium, EP coating | ||
Test feature | Yes | ||
Visual alarm | Yes, LED indication | ||
Alarm feature (N/O) | Normally open alarm output contact | ||
