Easy Dryers Premium | Refrigeration Air Dryers

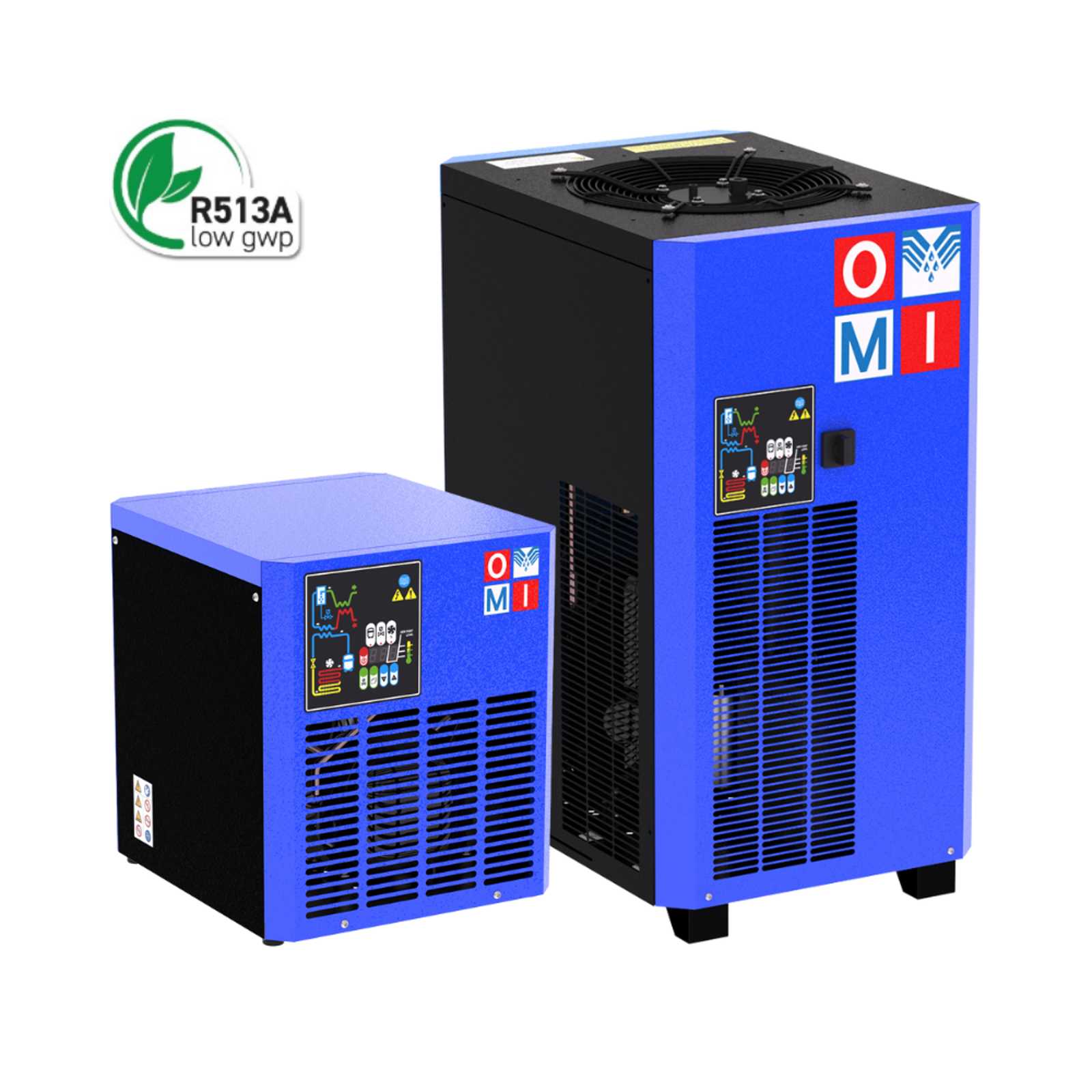

refrigerated air dryers ED Easy Dry series

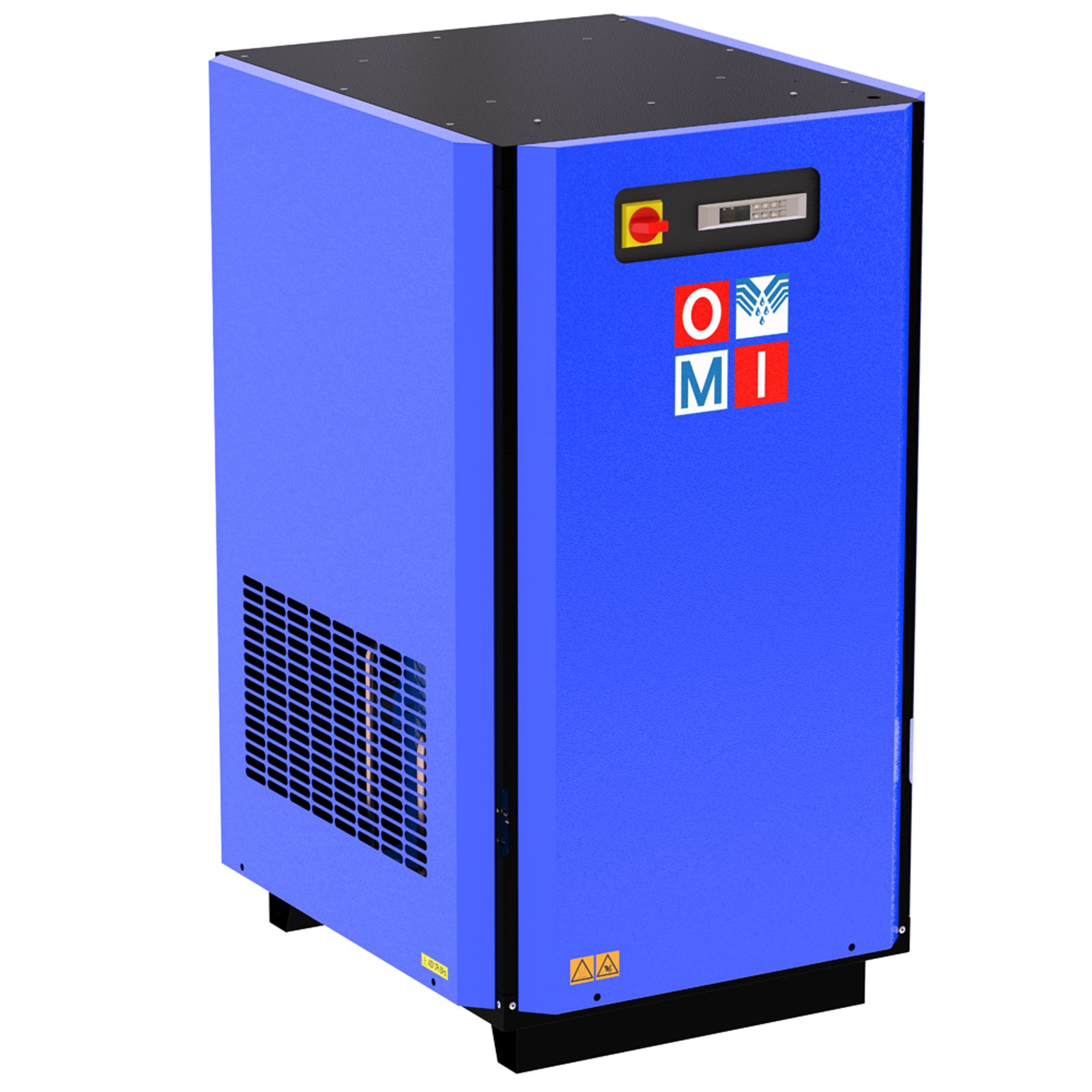

Refrigeration air dryers easy dryers product image 2 on white background| compressed air treatment | OMI

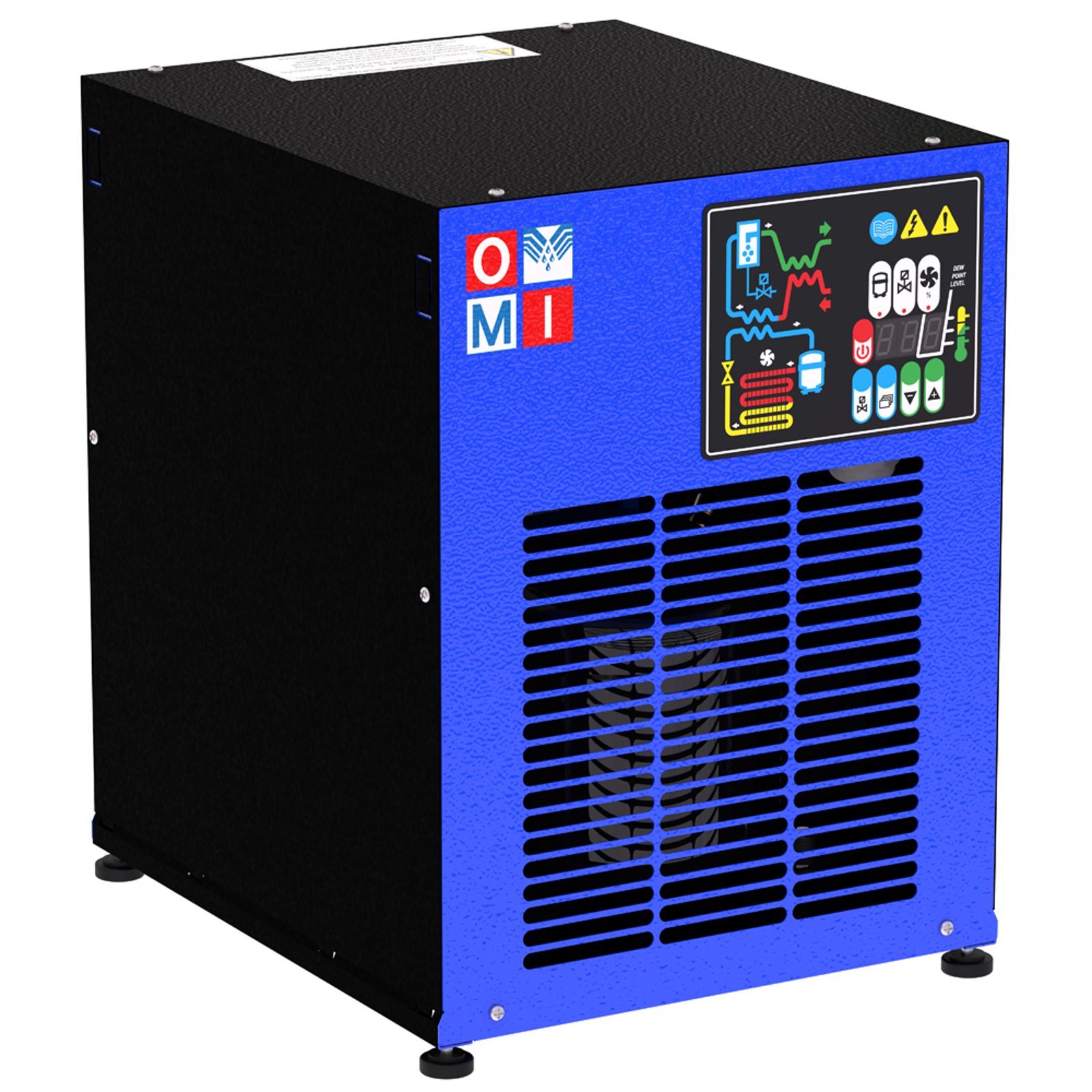

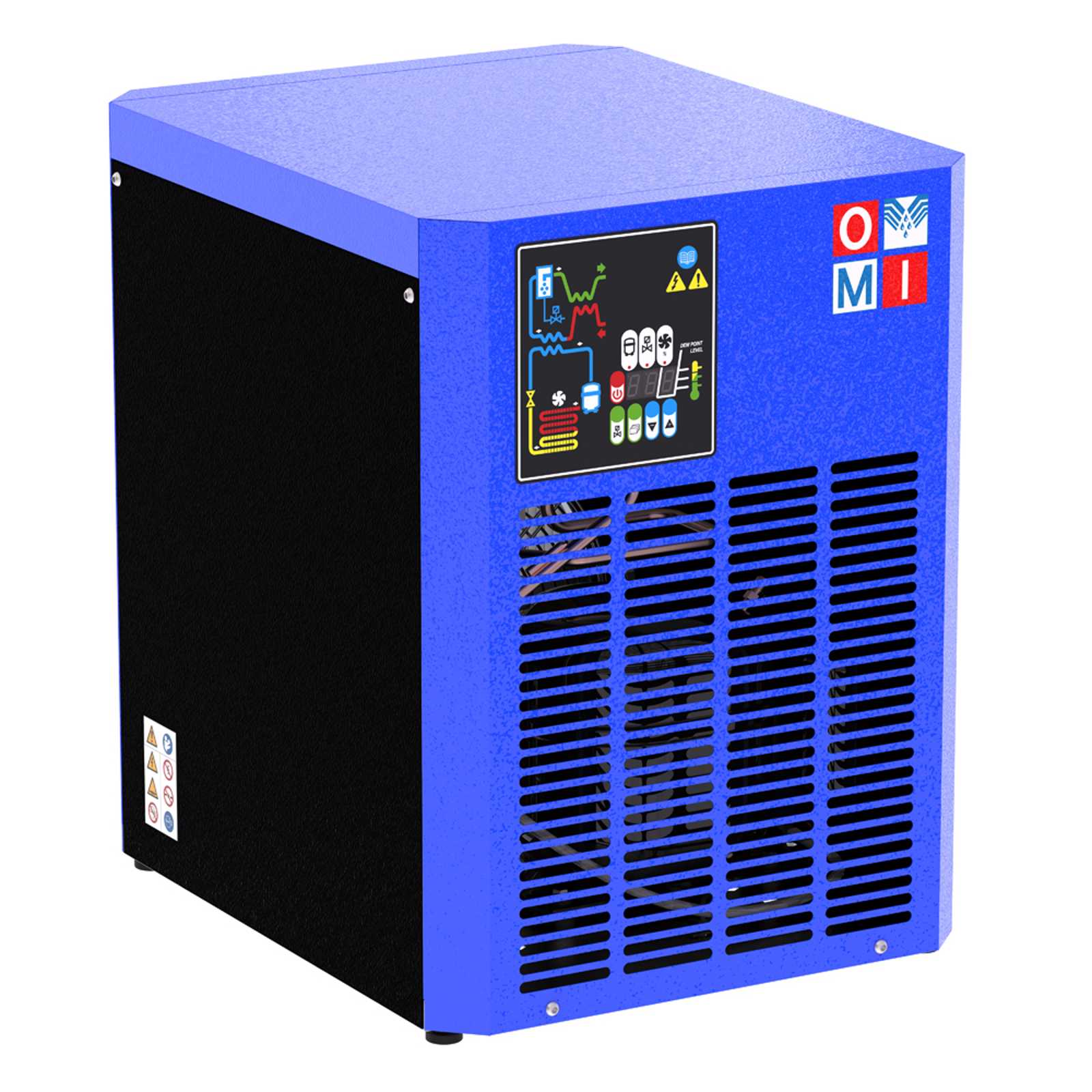

Refrigeration air dryers easy dryers product image 3 on white background| compressed air treatment | OMI

Refrigeration air dryers easy dryers product image 4 on white background| compressed air treatment | OMI

Refrigeration air dryers easy dryers product image 5 on white background| compressed air treatment | OMI

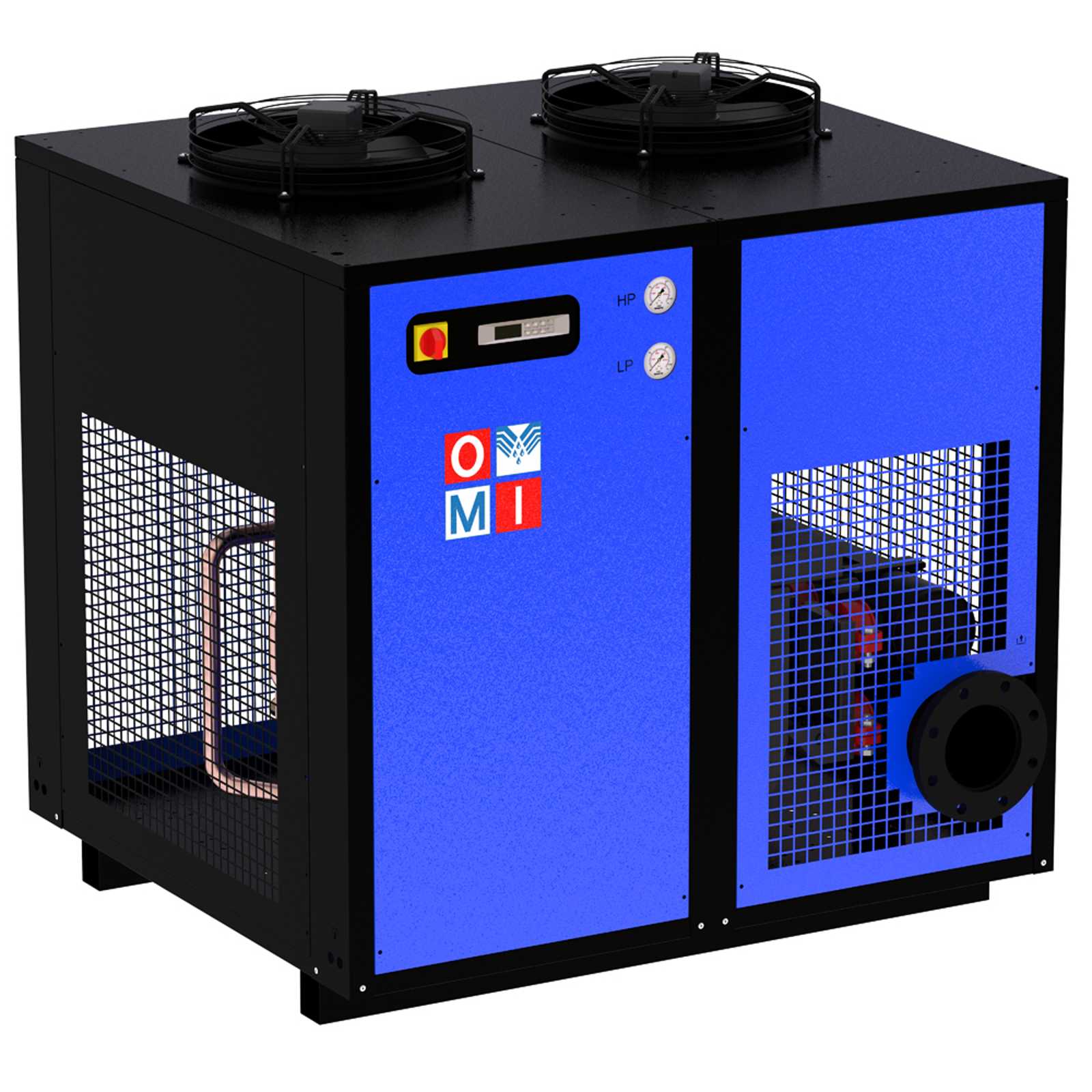

Refrigeration air dryers easy dryers product image 6 on white background| compressed air treatment | OMI

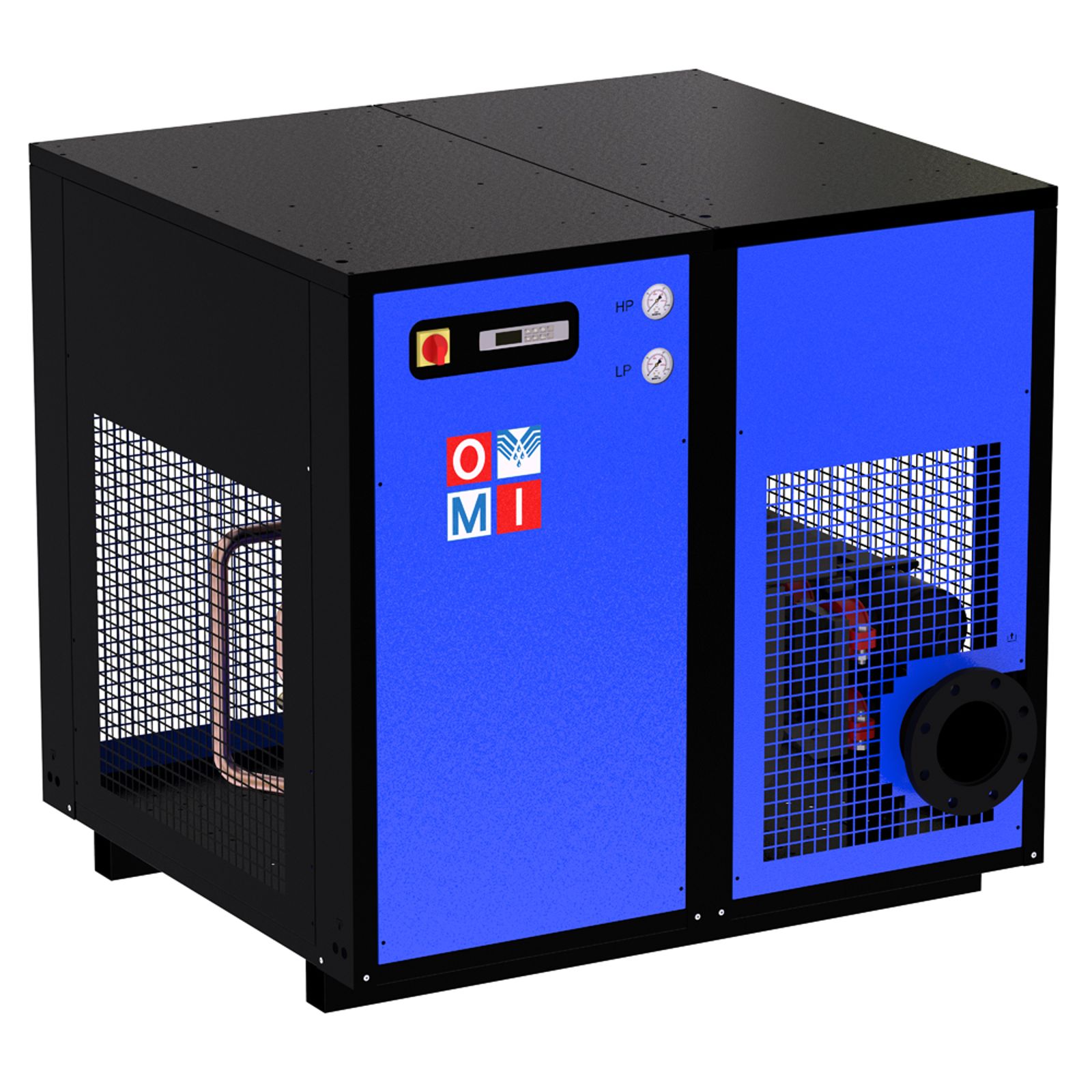

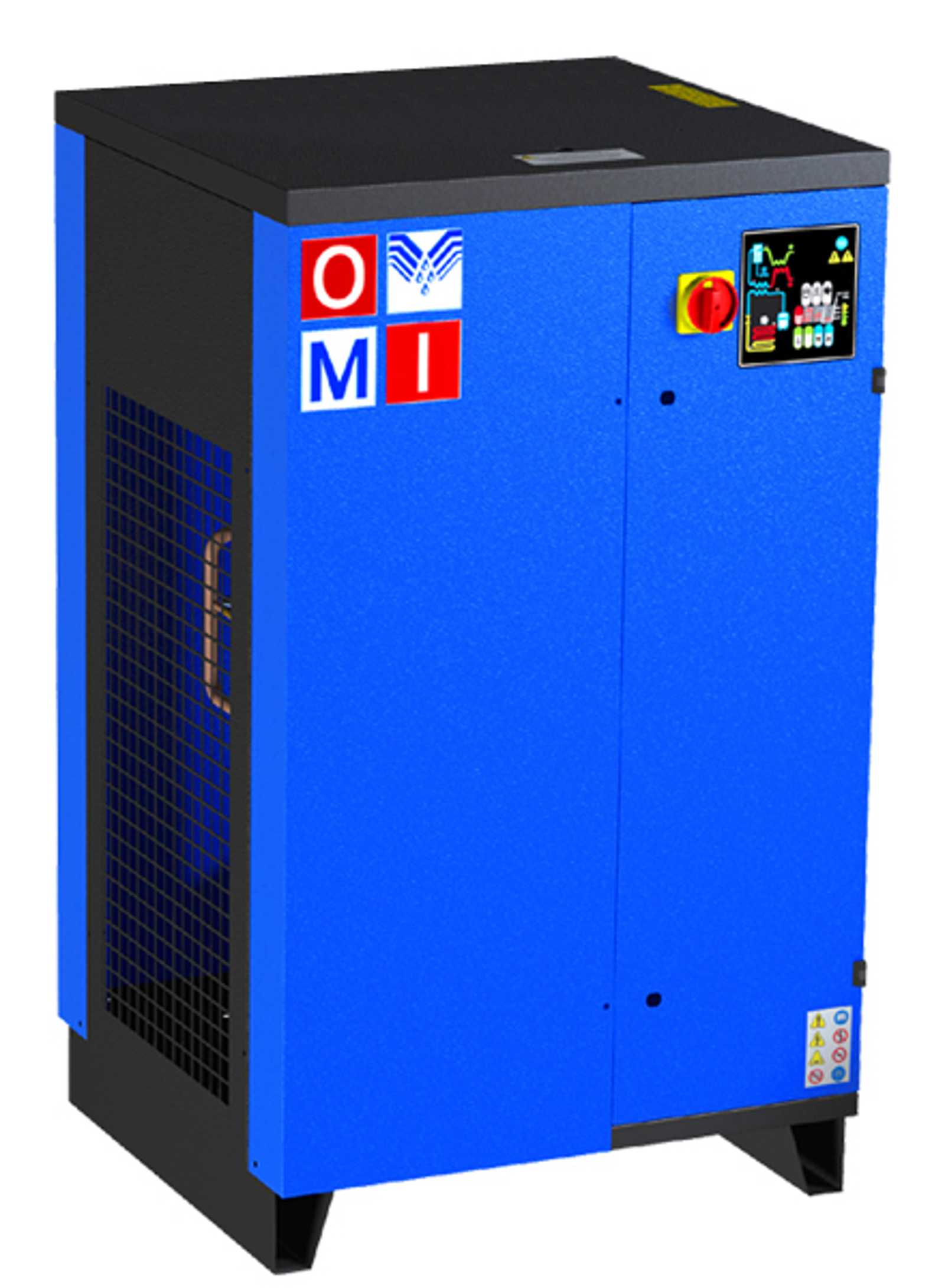

Refrigeration air dryers easy dryers product image 7 on white background| compressed air treatment | OMI

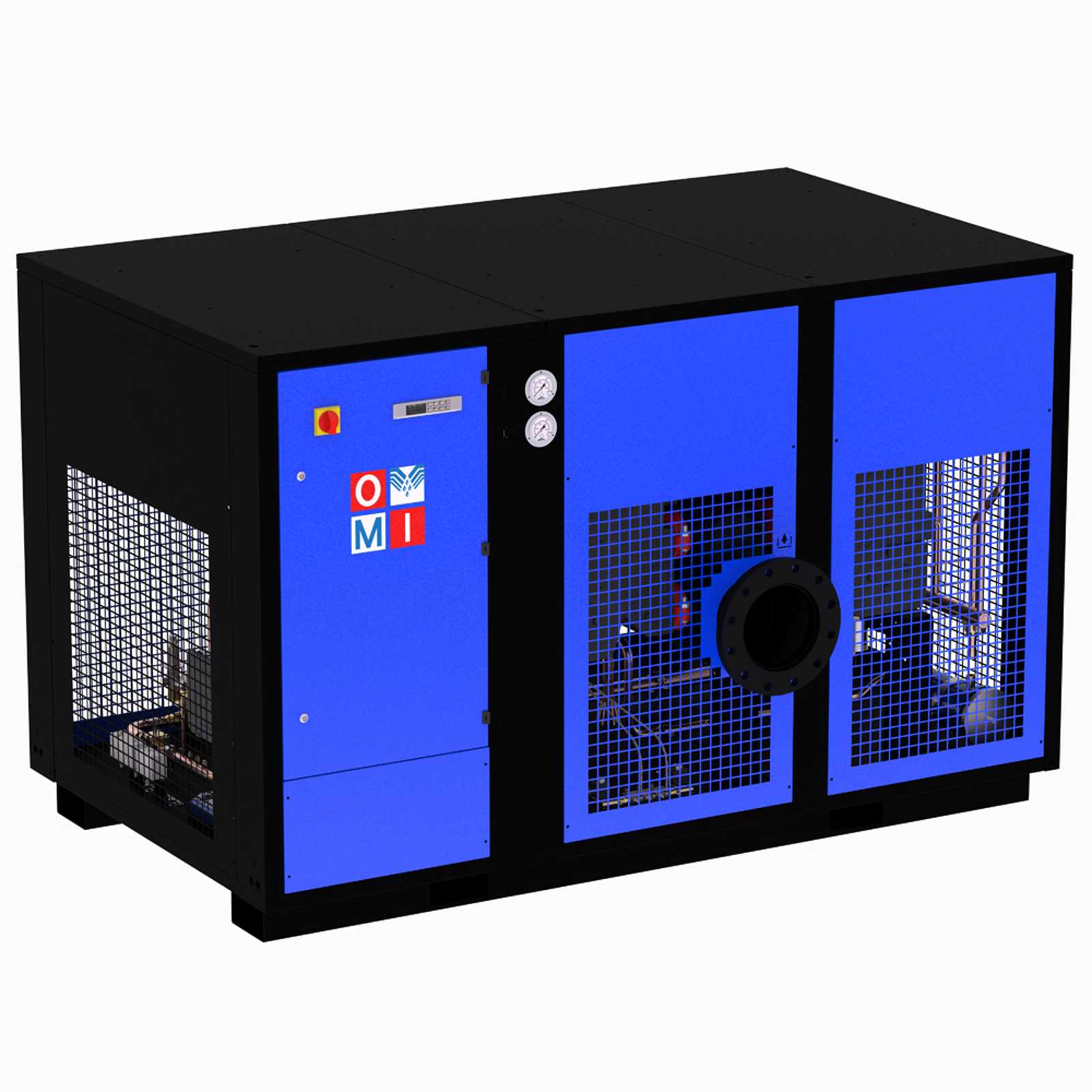

Refrigeration air dryers easy dryers product image 8 on white background| compressed air treatment | OMI

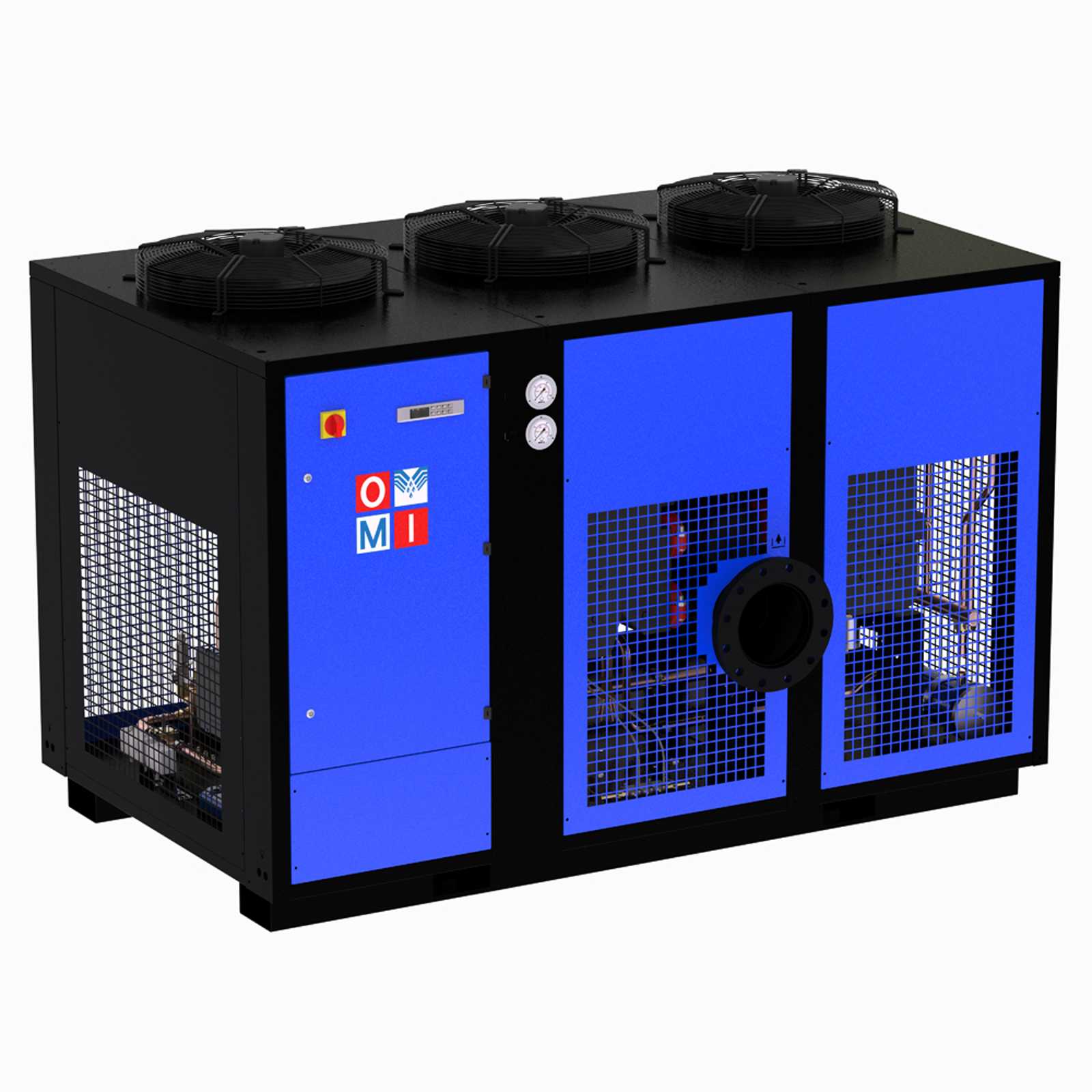

Refrigeration air dryers easy dryers product image 9 on white background| compressed air treatment | OMI

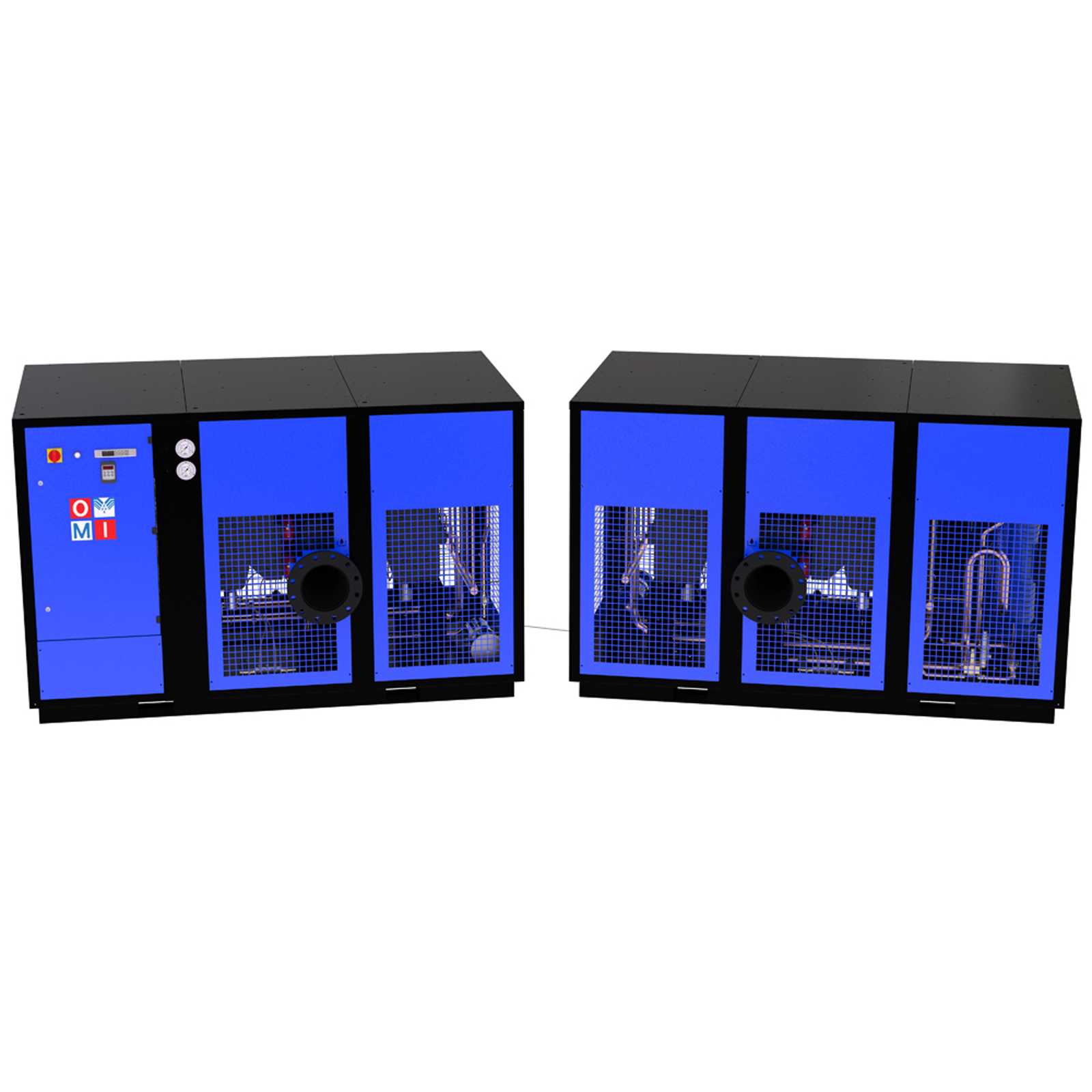

Refrigeration air dryers easy dryers product image 10 on white background| compressed air treatment | OMI

Refrigeration air dryers easy dryers product image 11 on white background| compressed air treatment | OMI

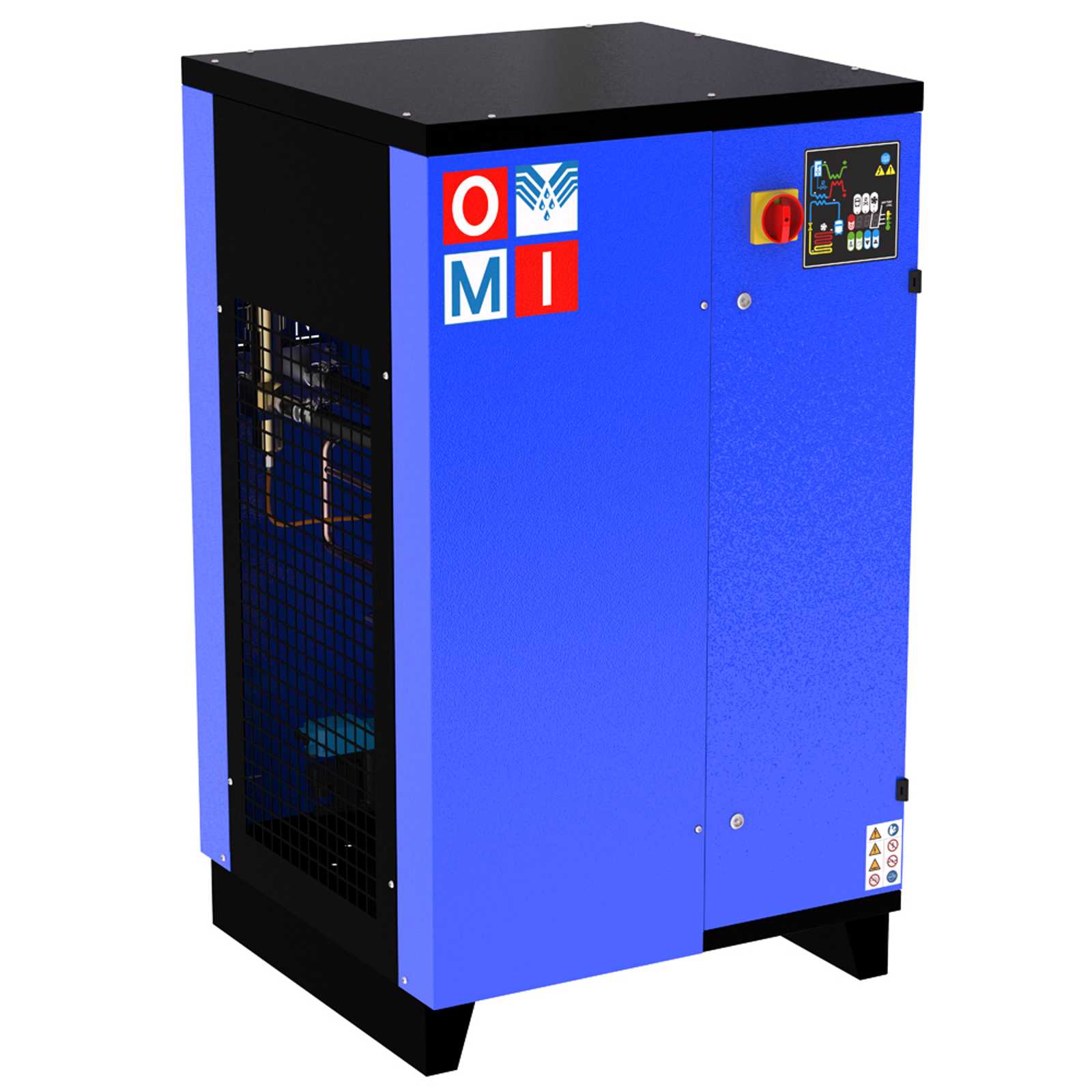

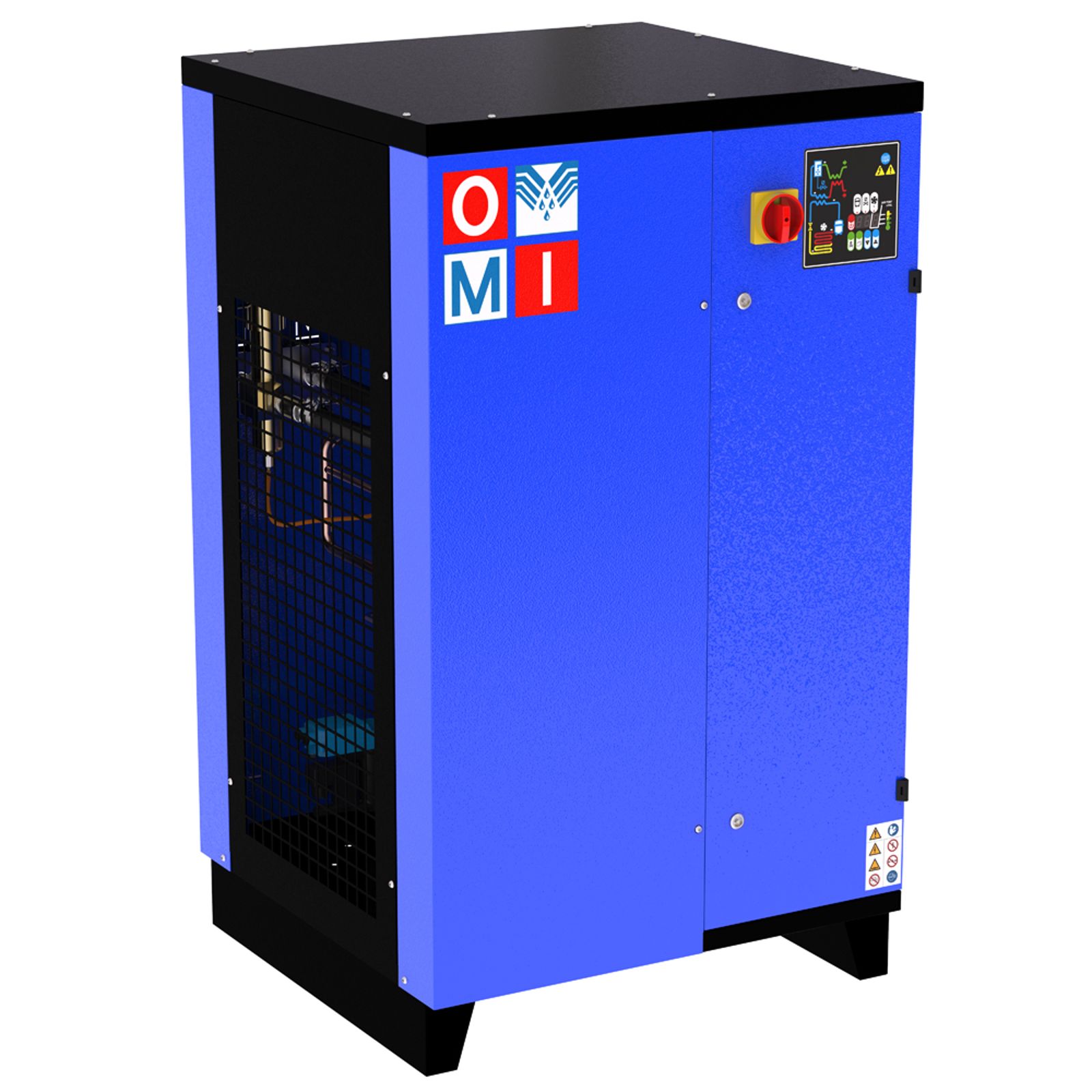

Refrigeration air dryers easy dryers product image 12 on white background| compressed air treatment | OMI

Refrigeration air dryers easy dryers product image 13 on white background| compressed air treatment | OMI

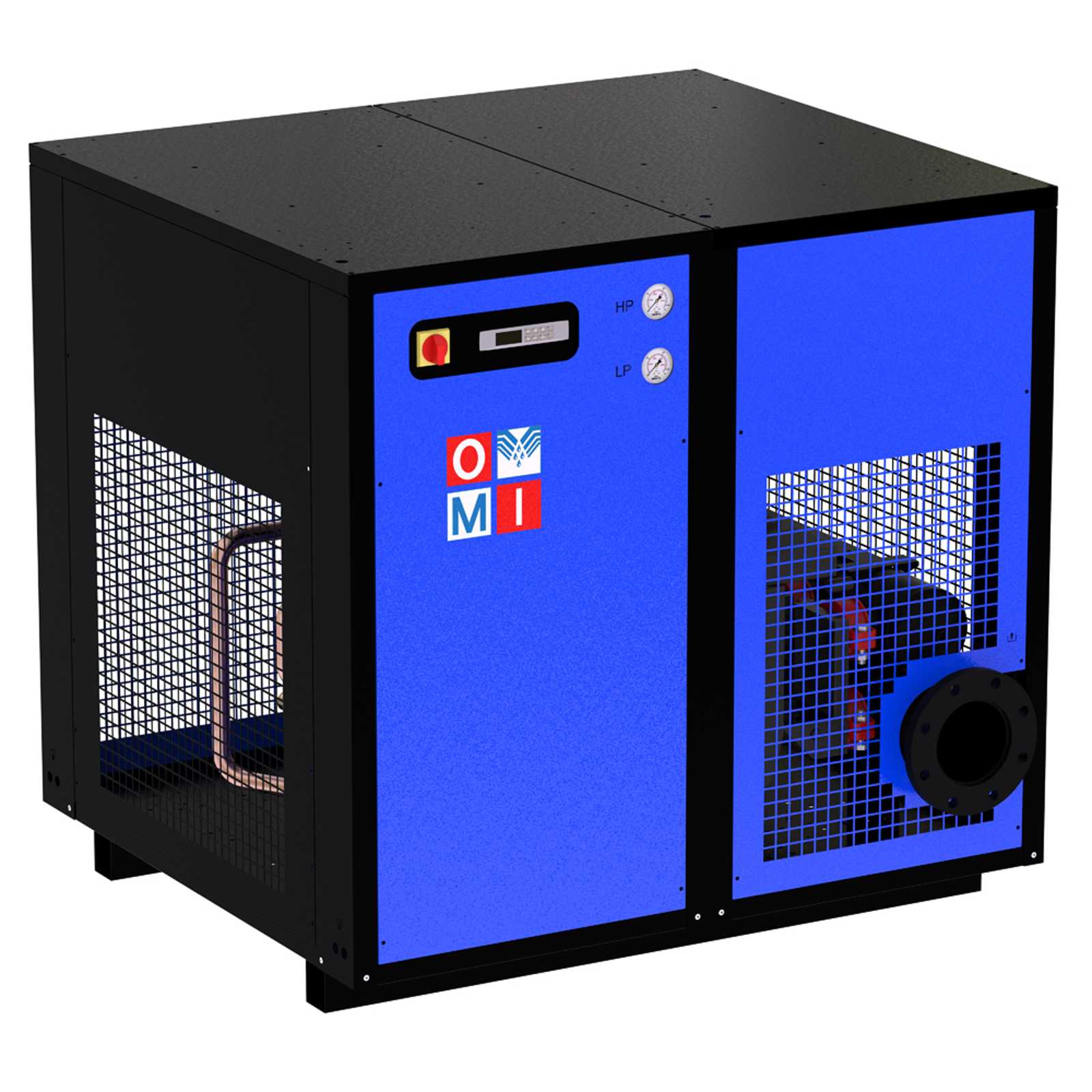

Refrigeration air dryers easy dryers product image 14 on white background| compressed air treatment | OMI

Refrigeration air dryers easy dryers product image 15 on white background| compressed air treatment | OMI

Refrigeration air dryers easy dryers product image 16 on white background| compressed air treatment | OMI

Refrigeration air dryers easy dryers product image 17 on white background| compressed air treatment | OMI

Refrigeration air dryers easy dryers product image 18 on white background| compressed air treatment | OMI

Air flow rate from 18 m³/h to 24000 m³/h

The ED dryers use scroll compressors with corrosion resistant materials, featuring fewer moving parts that make them more reliable. They also feature and innovative control panel including Anti-freeze mode, alarm display and more useful functionalities. The ED dryers are available in Air-cooled (ED) and Water-cooled versions (ED-W)

AVAILABLE OPTIONS:

ED 18-180 - 25 bar max pressure; 115V/1ph/60Hz
ED 18-660 - 230V/1ph/60Hz
ED 3200-24000 - ANSI connections
ED 18-360 - UL and CSA certified
ED 780-24000 - 460V/3ph/60Hz
ED 3600-24000 - ANSI connections
No Loss drain standard scope of supply from model ED600
Sea water versions available

A new range of air dryers completely redesigned in order to obtain the best possible combination of high efficiency, low pressure drop and reduced dimensions, with a consequent reduction in management costs and installation time.

In particular, operation has been simplified and the number of circuits and electronic controllers have been rationalized to increase the ease of use and ease of access for maintenance.

On the water-cooled versions the shell and tube water condensers will guarantee extremely low pressure drop on water side circuits and require little or no maintenance. Essential for those applications where cool air flow is not achievable.

Air-cooled

Model	Code	Connections	Flow rate	Flow rate	Flow rate	Nominal power	ISO8573-1:2010
		(BSP)	(m³/h)	(I/min)	(CFM)	consumption (kW)	Classification
ED18	08L.0018BG0.00B0QK.0000	3/8"	18	300	11	0.06	Water content: Class 4,
ED18	08L.0018BG0.00B0QK.0000	3/8"	18	300	11	0.06	Dewpoint: 3°C (37,4°F)
ED24	08L.0024BG0.00B0QK.0000	3/8"	24	400	14	0.12	Water content: Class 4,
ED24	08L.0024BG0.00B0QK.0000	3/8"	24	400	14	0.12	Dewpoint: 3°C (37,4°F)
ED54	08L.0054BG0.00B0QK.0000	1/2"	54	900	32	0.13	Water content: Class 4,
ED54	08L.0054BG0.00B0QK.0000	1/2"	54	900	32	0.13	Dewpoint: 3°C (37,4°F)
ED72	08L.0072BG0.00B0QK.0000	1/2"	72	1,200	42	0.17	Water content: Class 4,
ED72	08L.0072BG0.00B0QK.0000	1/2"	72	1,200	42	0.17	Dewpoint: 3°C (37,4°F)
ED108	08L.0108BG0.00B0QK.0000	3/4"	108	1,800	64	0.31	Water content: Class 4,
ED108	08L.0108BG0.00B0QK.0000	3/4"	108	1,800	64	0.31	Dewpoint: 3°C (37,4°F)
ED144	08L.0144BG0.00B0QK.0000	3/4"	144	2,400	85	0.41	Water content: Class 4,
ED144	08L.0144BG0.00B0QK.0000	3/4"	144	2,400	85	0.41	Dewpoint: 3°C (37,4°F)
ED180	08L.0180BG0.00B0QK.0000	3/4"	180	3,000	106	0.5	Water content: Class 4,
ED180	08L.0180BG0.00B0QK.0000	3/4"	180	3,000	106	0.5	Dewpoint: 3°C (37,4°F)
ED225	08L.0225DG0.00B0QK.0000	1"	225	3,750	132	0.7	Water content: Class 4,
ED225	08L.0225DG0.00B0QK.0000	1"	225	3,750	132	0.7	Dewpoint: 3°C (37,4°F)
ED260	08L.0260DG0.00B0QK.0000	1"	260	4,333	153	0.81	Water content: Class 4,
ED260	08L.0260DG0.00B0QK.0000	1"	260	4,333	153	0.81	Dewpoint: 3°C (37,4°F)
ED300	08L.0300DG0.00B0QK.0000	1-1/2"	300	5,000	177	0.61	Water content: Class 4,
ED300	08L.0300DG0.00B0QK.0000	1-1/2"	300	5,000	177	0.61	Dewpoint: 3°C (37,4°F)
ED360	08L.0360DG0.00B0QK.0000	1-1/2"	360	6,000	212	0.74	Water content: Class 4,
ED360	08L.0360DG0.00B0QK.0000	1-1/2"	360	6,000	212	0.74	Dewpoint: 3°C (37,4°F)
ED480	08L.0480DG0.00B0QK.0000	1-1/2"	480	8,000	283	0.81	Water content: Class 4,
ED480	08L.0480DG0.00B0QK.0000	1-1/2"	480	8,000	283	0.81	Dewpoint: 3°C (37,4°F)
ED600	08L.0600DG0.00B1QK.0000	2"	600	10,000	353	1.01	Water content: Class 4,
ED600	08L.0600DG0.00B1QK.0000	2"	600	10,000	353	1.01	Dewpoint: 3°C (37,4°F)
ED780	08L.0780DG0.00B1QK.0000	2"	780	13,000	459	1.67	Water content: Class 4,
ED780	08L.0780DG0.00B1QK.0000	2"	780	13,000	459	1.67	Dewpoint: 3°C (37,4°F)
ED1000	08L.1000DG0.00B1QK.0000	2"	1,000	16,667	589	2.03	Water content: Class 4,
ED1000	08L.1000DG0.00B1QK.0000	2"	1,000	16,667	589	2.03	Dewpoint: 3°C (37,4°F)
ED1300	08L.1300DG0.00BGQK.0000	3"	1,300	21,667	765	2.236	Water content: Class 4,
ED1300	08L.1300DG0.00BGQK.0000	3"	1,300	21,667	765	2.236	Dewpoint: 3°C (37,4°F)
ED1500	08L.1500DG0.00BGQK.0000	3"	1,500	25,000	883	2.58	Water content: Class 4,
ED1500	08L.1500DG0.00BGQK.0000	3"	1,500	25,000	883	2.58	Dewpoint: 3°C (37,4°F)
ED1800	08L.1800DG0.00BGQK.0000	3"	1,800	30,000	1,059	3.1	Water content: Class 4,
ED1800	08L.1800DG0.00BGQK.0000	3"	1,800	30,000	1,059	3.1	Dewpoint: 3°C (37,4°F)
ED2250	08L.2250DG0.00BGQK.0000	3"	2,250	37,500	1,324	3.65	Water content: Class 4,
ED2250	08L.2250DG0.00BGQK.0000	3"	2,250	37,500	1,324	3.65	Dewpoint: 3°C (37,4°F)
ED2600	08L.2600DG0.00BGQK.0000	3"	2,600	43,333	1,530	4.22	Water content: Class 4,
ED2600	08L.2600DG0.00BGQK.0000	3"	2,600	43,333	1,530	4.22	Dewpoint: 3°C (37,4°F)
ED3200	08L.3200DG0.00BGQK.0000	DN150 PN16	3,200	53,333	1,883	6.31	Water content: Class 4,
ED3200	08L.3200DG0.00BGQK.0000	DN150 PN16	3,200	53,333	1,883	6.31	Dewpoint: 3°C (37,4°F)
ED4200	08L.4200DG0.00BGQK.0000	DN150 PN16	4,200	70,000	2,472	5.96	Water content: Class 4,
ED4200	08L.4200DG0.00BGQK.0000	DN150 PN16	4,200	70,000	2,472	5.96	Dewpoint: 3°C (37,4°F)
ED4800	08L.4800DG0.00BGQK.0000	DN150 PN16	4,800	80,000	2,825	6.81	Water content: Class 4,
ED4800	08L.4800DG0.00BGQK.0000	DN150 PN16	4,800	80,000	2,825	6.81	Dewpoint: 3°C (37,4°F)
ED5300	08L.5300DG0.00BGQK.0000	DN150 PN16	5,300	88,333	3,119	9.81	Water content: Class 4,
ED5300	08L.5300DG0.00BGQK.0000	DN150 PN16	5,300	88,333	3,119	9.81	Dewpoint: 3°C (37,4°F)
ED6000	08L.6000DG0.00BGQK.0000	DN150 PN16	6,000	100,000	3,531	10.9	Water content: Class 4,
ED6000	08L.6000DG0.00BGQK.0000	DN150 PN16	6,000	100,000	3,531	10.9	Dewpoint: 3°C (37,4°F)
ED8800	08L.8800DG0.00BGQK.0000	DN200 PN16	8,800	146,667	5,179	13.2	Water content: Class 4,
ED8800	08L.8800DG0.00BGQK.0000	DN200 PN16	8,800	146,667	5,179	13.2	Dewpoint: 3°C (37,4°F)
ED10000	08L.A100DG0.00BGQK.0000	DN200 PN16	10,000	166,667	5,886	13.56	Water content: Class 4,
ED10000	08L.A100DG0.00BGQK.0000	DN200 PN16	10,000	166,667	5,886	13.56	Dewpoint: 3°C (37,4°F)
ED12000	08L.A120DG0.00BGQK.0000	DN200 PN16	12,000	200,000	7,063	16.24	Water content: Class 4,
ED12000	08L.A120DG0.00BGQK.0000	DN200 PN16	12,000	200,000	7,063	16.24	Dewpoint: 3°C (37,4°F)
ED17600	08L.A176DG0.00BGQK.0000	2 x DN200 PN16	17,600	293,333	10,359	26.4	Water content: Class 4,
ED17600	08L.A176DG0.00BGQK.0000	2 x DN200 PN16	17,600	293,333	10,359	26.4	Dewpoint: 3°C (37,4°F)
ED20000	08L.A200DG0.00BGQK.0000	2 x DN200 PN16	20,000	333,333	11,772	27.12	Water content: Class 4,
ED20000	08L.A200DG0.00BGQK.0000	2 x DN200 PN16	20,000	333,333	11,772	27.12	Dewpoint: 3°C (37,4°F)
ED24000	08L.A240DG0.00BGQK.0000	2 x DN200 PN16	24,000	400,000	14,126	32.48	Water content: Class 4,
ED24000	08L.A240DG0.00BGQK.0000	2 x DN200 PN16	24,000	400,000	14,126	32.48	Dewpoint: 3°C (37,4°F)

Water-cooled

Model	Code	Connections	Flow rate	Flow rate	Flow rate	Nominal power	ISO8573-1:2010
		(BSP)	(m³/h)	(I/min)	(CFM)	consumption (kW)	Classification
ED600W	08L.0600DG0.20B1QK.0000	2"	600	10,000	353	0.96	Water content: Class 4, Dewpoint: 3°C (37,4°F)
ED780W	08L.0780DG0.20B1QK.0000	2"	780	13,000	459	1.55	Water content: Class 4,
ED780W	08L.0780DG0.20B1QK.0000	2"	780	13,000	459	1.55	Dewpoint: 3°C (37,4°F)
ED1000W	08L.1000DG0.20B1QK.0000	2"	950	15,833	559	1.89	Water content: Class 4,
ED1000W	08L.1000DG0.20B1QK.0000	2"	950	15,833	559	1.89	Dewpoint: 3°C (37,4°F)
ED1300W	08L.1300DG0.20BGQK.0000	3"	1,300	21,667	765	2.05	Water content: Class 4,
ED1300W	08L.1300DG0.20BGQK.0000	3"	1,300	21,667	765	2.05	Dewpoint: 3°C (37,4°F)
ED1500W	08L.1500DG0.20BGQK.0000	3"	1,500	25,000	883	2.36	Water content: Class 4,
ED1500W	08L.1500DG0.20BGQK.0000	3"	1,500	25,000	883	2.36	Dewpoint: 3°C (37,4°F)
ED1800W	08L.1800DG0.20BGQK.0000	3"	1,800	30,000	1,059	2.83	Water content: Class 4,
ED1800W	08L.1800DG0.20BGQK.0000	3"	1,800	30,000	1,059	2.83	Dewpoint: 3°C (37,4°F)
ED2250W	08L.2250DG0.20BGQK.0000	3"	2,250	37,500	1,324	3.38	Water content: Class 4,
ED2250W	08L.2250DG0.20BGQK.0000	3"	2,250	37,500	1,324	3.38	Dewpoint: 3°C (37,4°F)
ED2600W	08L.2600DG0.20BGQK.0000	3"	2,600	43,333	1,530	3.9	Water content: Class 4,
ED2600W	08L.2600DG0.20BGQK.0000	3"	2,600	43,333	1,530	3.9	Dewpoint: 3°C (37,4°F)
ED3200W	08L.3200DG0.20BGQK.0000	DN150 PN16	3,200	53,333	1,883	5.7	Water content: Class 4,
ED3200W	08L.3200DG0.20BGQK.0000	DN150 PN16	3,200	53,333	1,883	5.7	Dewpoint: 3°C (37,4°F)
ED4200W	08L.4200DG0.20BGQK.0000	DN150 PN16	4,200	70,000	2,472	5.38	Water content: Class 4,
ED4200W	08L.4200DG0.20BGQK.0000	DN150 PN16	4,200	70,000	2,472	5.38	Dewpoint: 3°C (37,4°F)
ED4800W	08L.4800DG0.20BGQK.0000	DN150 PN16	4,800	80,000	2,825	6.15	Water content: Class 4,
ED4800W	08L.4800DG0.20BGQK.0000	DN150 PN16	4,800	80,000	2,825	6.15	Dewpoint: 3°C (37,4°F)
ED5300W	08L.5300DG0.20BGQK.0000	DN150 PN16	5,300	88,333	3,119	8.98	Water content: Class 4,
ED5300W	08L.5300DG0.20BGQK.0000	DN150 PN16	5,300	88,333	3,119	8.98	Dewpoint: 3°C (37,4°F)
ED6000W	08L.6000DG0.20BGQK.0000	DN150 PN16	6,000	100,000	3,531	9.973	Water content: Class 4,
ED6000W	08L.6000DG0.20BGQK.0000	DN150 PN16	6,000	100,000	3,531	9.973	Dewpoint: 3°C (37,4°F)
ED8800W	08L.8800DG0.20BGQK.0000	DN150 PN16	8,800	146,667	5,179	12.14	Water content: Class 4,
ED8800W	08L.8800DG0.20BGQK.0000	DN150 PN16	8,800	146,667	5,179	12.14	Dewpoint: 3°C (37,4°F)
ED10000W	08L.A100DG0.20BGQK.0000	DN200 PN16	10,000	166,667	5,886	12.43	Water content: Class 4,
ED10000W	08L.A100DG0.20BGQK.0000	DN200 PN16	10,000	166,667	5,886	12.43	Dewpoint: 3°C (37,4°F)
ED12000W	08L.A120DG0.20BGQK.0000	DN200 PN16	12,000	200,000	7,063	14.9	Water content: Class 4,
ED12000W	08L.A120DG0.20BGQK.0000	DN200 PN16	12,000	200,000	7,063	14.9	Dewpoint: 3°C (37,4°F)
ED17600W	08L.A176DG0.20BGQK.0000	2 x DN200 PN16	17,600	293,333	10,359	24.28	Water content: Class 4,
ED17600W	08L.A176DG0.20BGQK.0000	2 x DN200 PN16	17,600	293,333	10,359	24.28	Dewpoint: 3°C (37,4°F)
ED20000W	08L.A200DG0.20BGQK.0000	2 x DN200 PN16	20,000	333,333	11,772	24.86	Water content: Class 4,
ED20000W	08L.A200DG0.20BGQK.0000	2 x DN200 PN16	20,000	333,333	11,772	24.86	Dewpoint: 3°C (37,4°F)
ED24000W	08L.A240DG0.20BGQK.0000	2 x DN200 PN16	24,000	400,000	14,126	29.8	Water content: Class 4,
ED24000W	08L.A240DG0.20BGQK.0000	2 x DN200 PN16	24,000	400,000	14,126	29.8	Dewpoint: 3°C (37,4°F)

Air-cooled

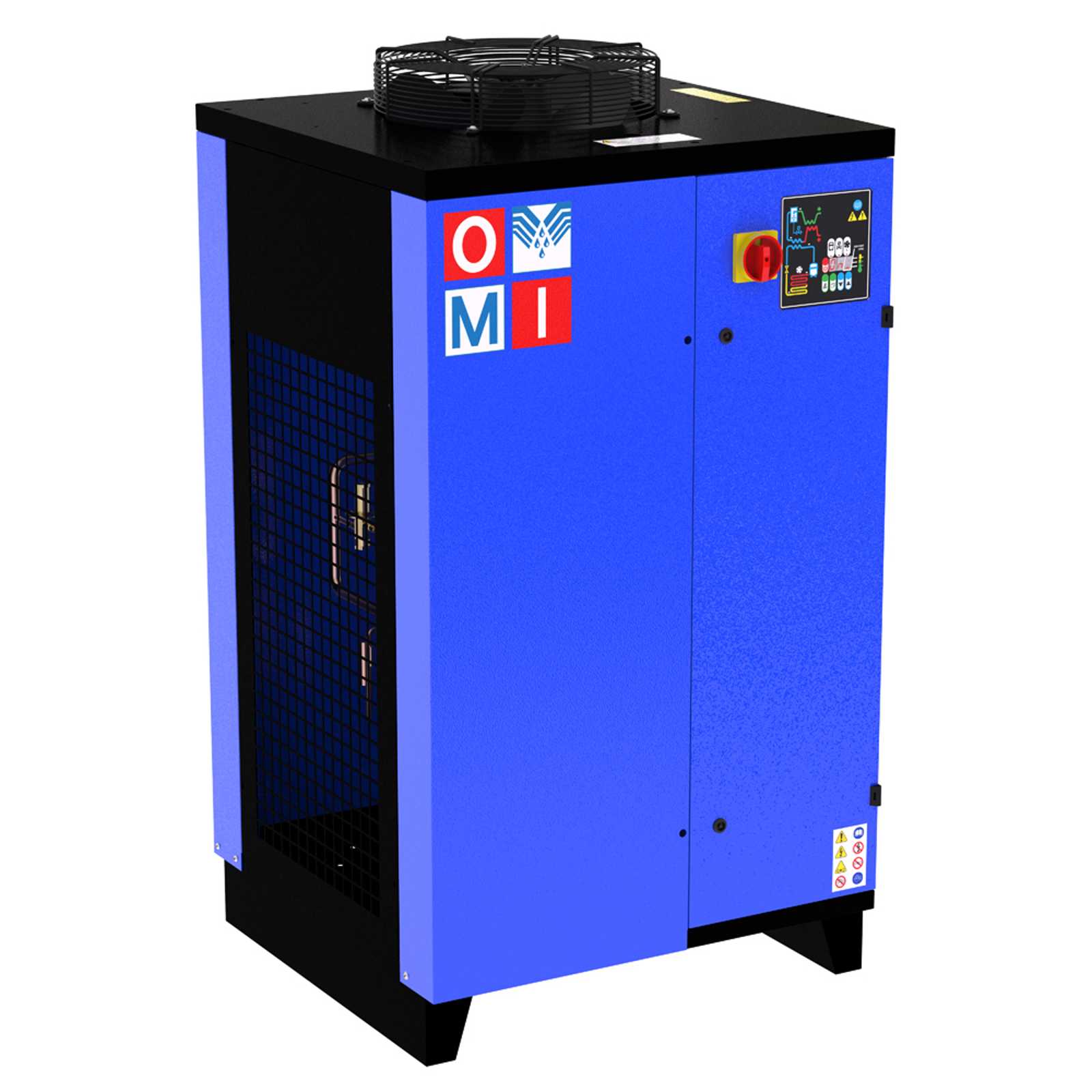

ED 660-1000 Dimensions Technical drawing

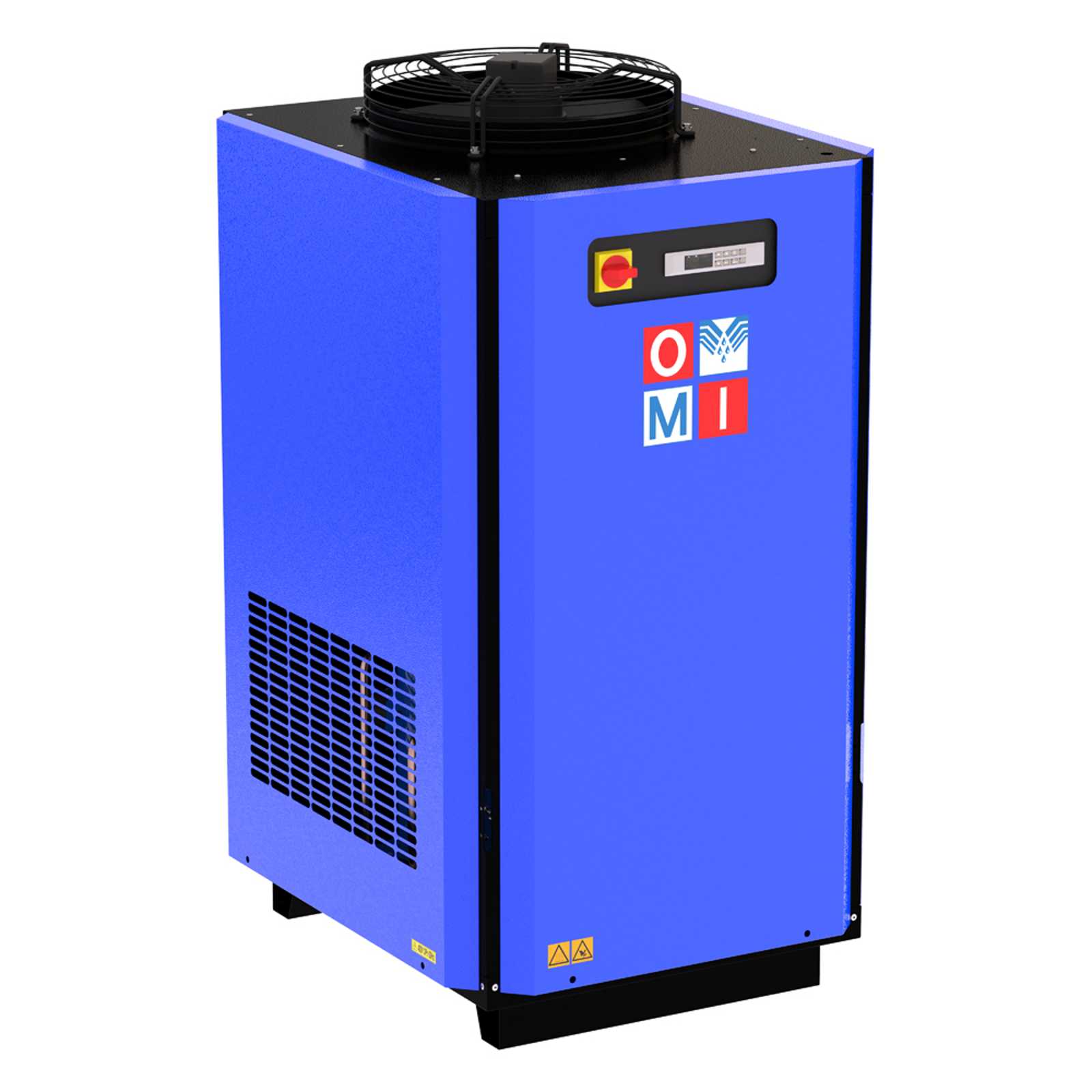

ED 1500-2600 Dimensions Technical drawing

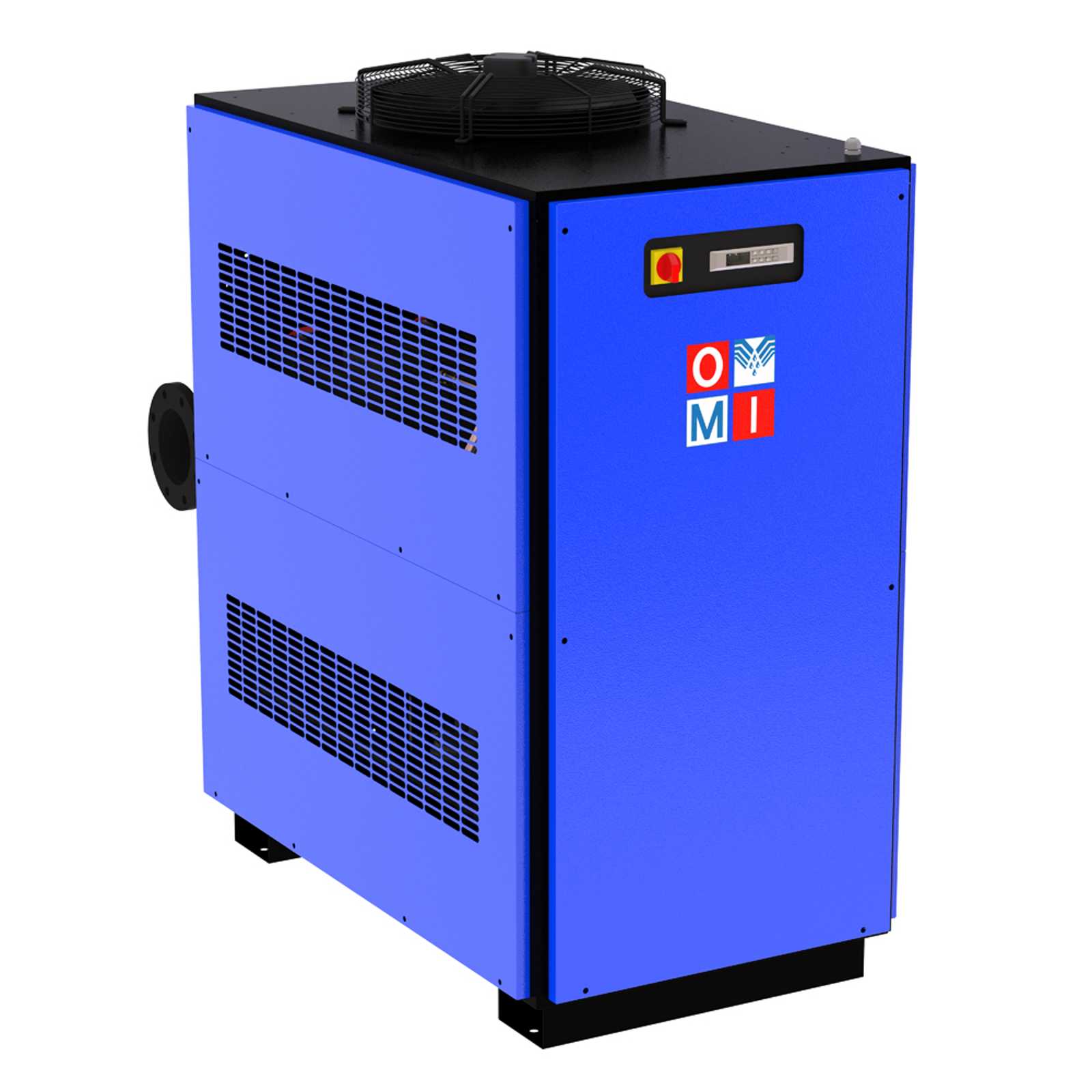

ED 3200-4800 Dimensions Technical drawing

ED 5300-13600 Dimensions Technical drawing

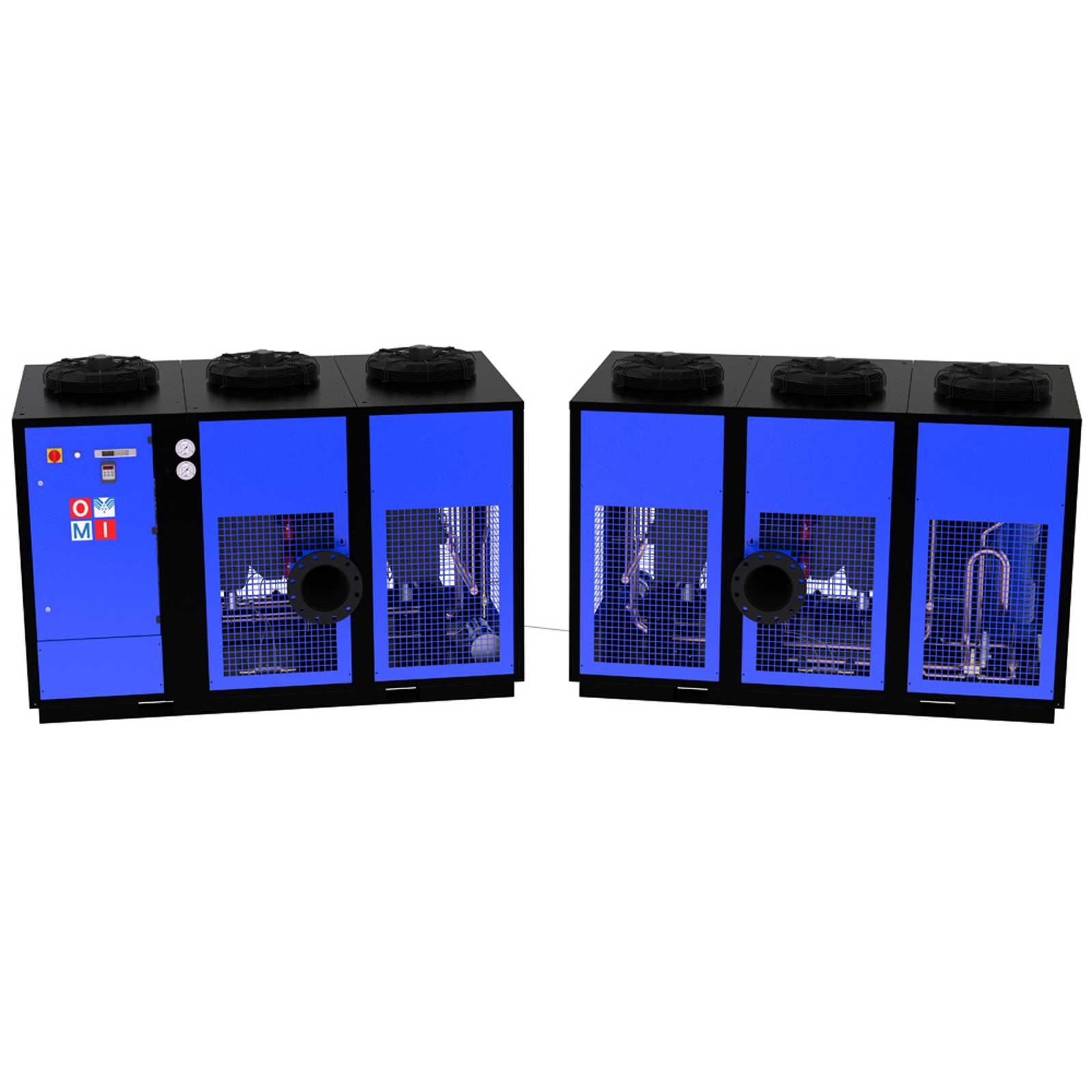

ED 17600-24000 Dimensions Technical drawing

Model / Modello	Dimensions W (mm)	Dimensions D (mm)	Dimensions H (mm)	Weight / Peso (kg)
ED 18	305	360	408	19
ED 24	305	360	408	19
ED 54	390	432	453	26
ED 72	390	432	453	26
ED 108	420	516	563	36
ED 144	420	516	563	42
ED 180	420	516	563	44
ED 225	485	595	614	48
ED 260	485	595	614	49
ED 360	500	718	980	79
ED 480	500	718	980	85
ED 660	779	720	1360	134
ED 780	779	720	1360	164
ED 1000	779	720	1360	168
ED 1500	806	1012	1539	234
ED 1800	806	1012	1539	234
ED 2250	806	1012	1539	260
ED 2600	806	1012	1539	260
ED 3200	880	1819	1796	425
ED 4200	880	1819	1796	440
ED 4800	880	1819	1796	440
ED 5300	1510	1500	1555	665
ED 6000	1510	1500	1555	700
ED 6800	1510	1500	1555	715
ED 8800	2270	1590	1570	1058
ED 10000	2270	1590	1570	1128
ED 12000	2270	1590	1570	1205
ED 13600	3025	1590	1570	1360
ED 17600	4600	1590	1570	2116
ED 20000	4600	1590	1570	2256
ED 24000	4600	1590	1570	2720

Water-cooled

ED 8800-13600 Dimensions Technical drawing

Model / Modello	Dimensions W (mm)	Dimensions D (mm)	Dimensions H (mm)	Weight / Peso (kg)
ED 360 W	500	718	973	80
ED 480 W	500	718	973	86
ED 660 W	791	720	1273	134
ED 780 W	791	720	1273	170
ED 1000 W	791	720	1273	174
ED 1500 W	806	1012	1195	244
ED 1800 W	806	1012	1195	244
ED 2250 W	806	1012	1195	270
ED 2600 W	806	1012	1195	270
ED 3200 W	880	1819	1671	445
ED 4200 W	880	1819	1671	460
ED 4800 W	880	1819	1671	460
ED 5300 W	1510	1500	1440	633
ED 6000 W	1510	1500	1440	710
ED 6800 W	1510	1500	1440	715
ED 8800 W	2270	1590	1440	990
ED 10000 W	2270	1590	1440	1060
ED 12000 W	2270	1590	1440	1180
ED 13600 W	2270	1590	1440	1200
ED 17600 W	4600	1590	1440	1980
ED 20000 W	1600	1590	1440	2120
ED 24000 W	4600	1590	1440	2360
