AF 30 - AF 2700 | Alps Series Filters

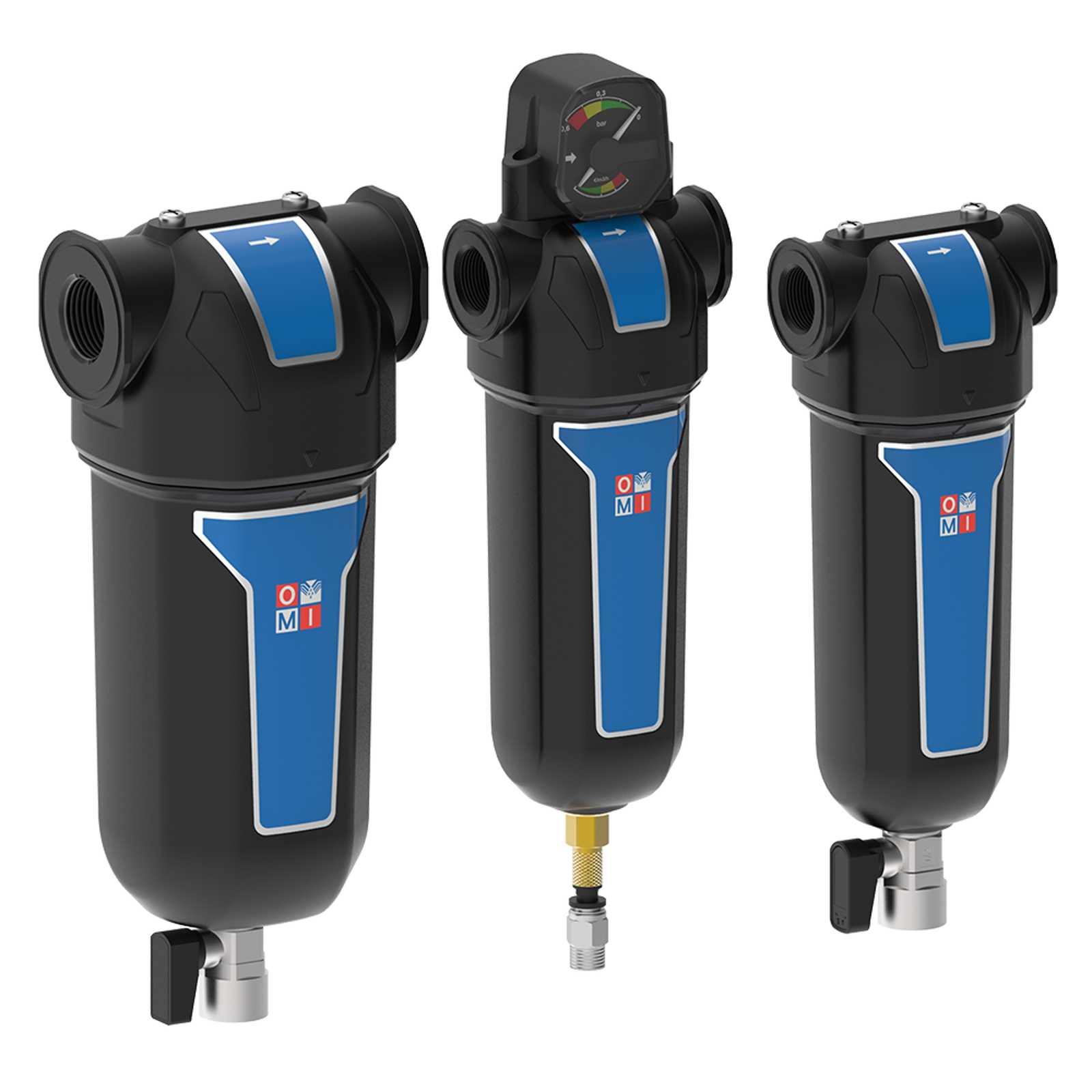

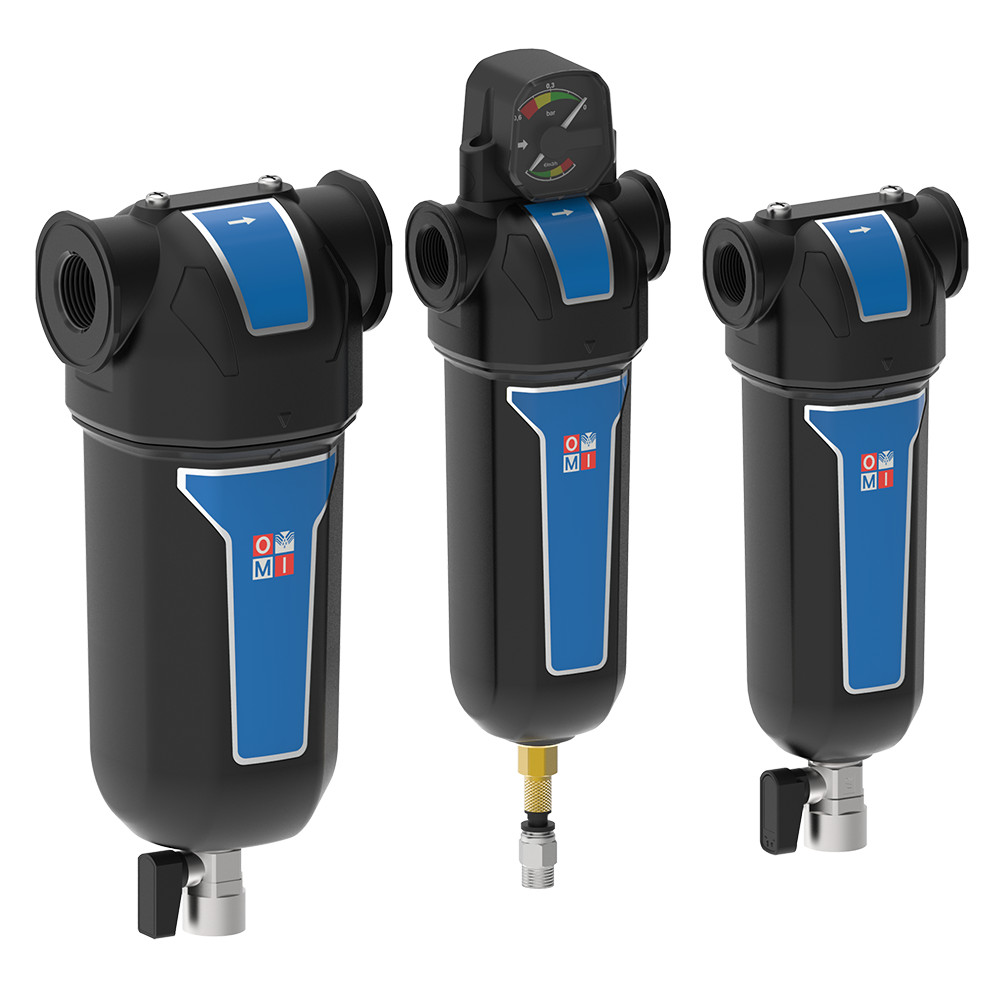

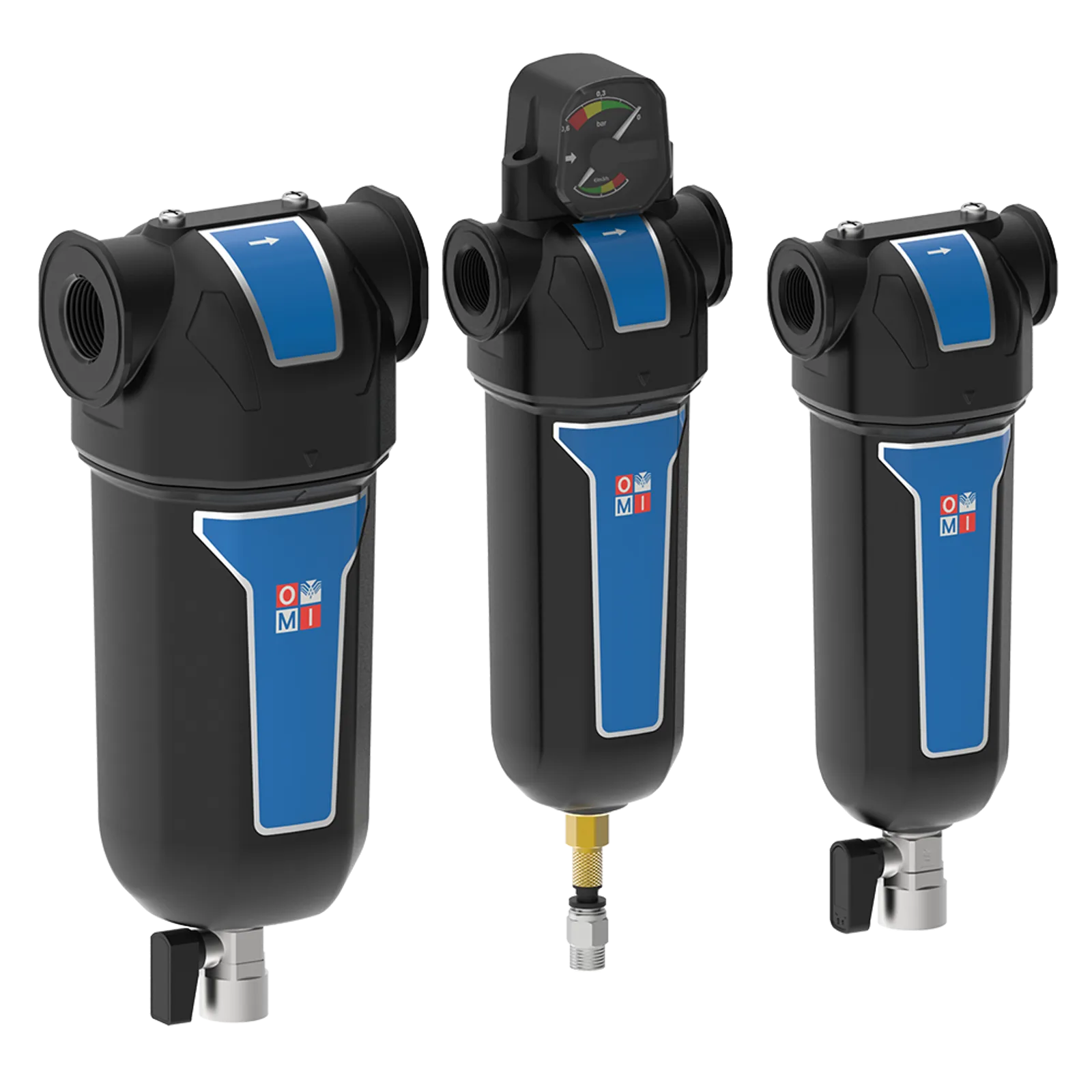

Range of Alps Series filters; multiple configurations with PDT option and condensate drain

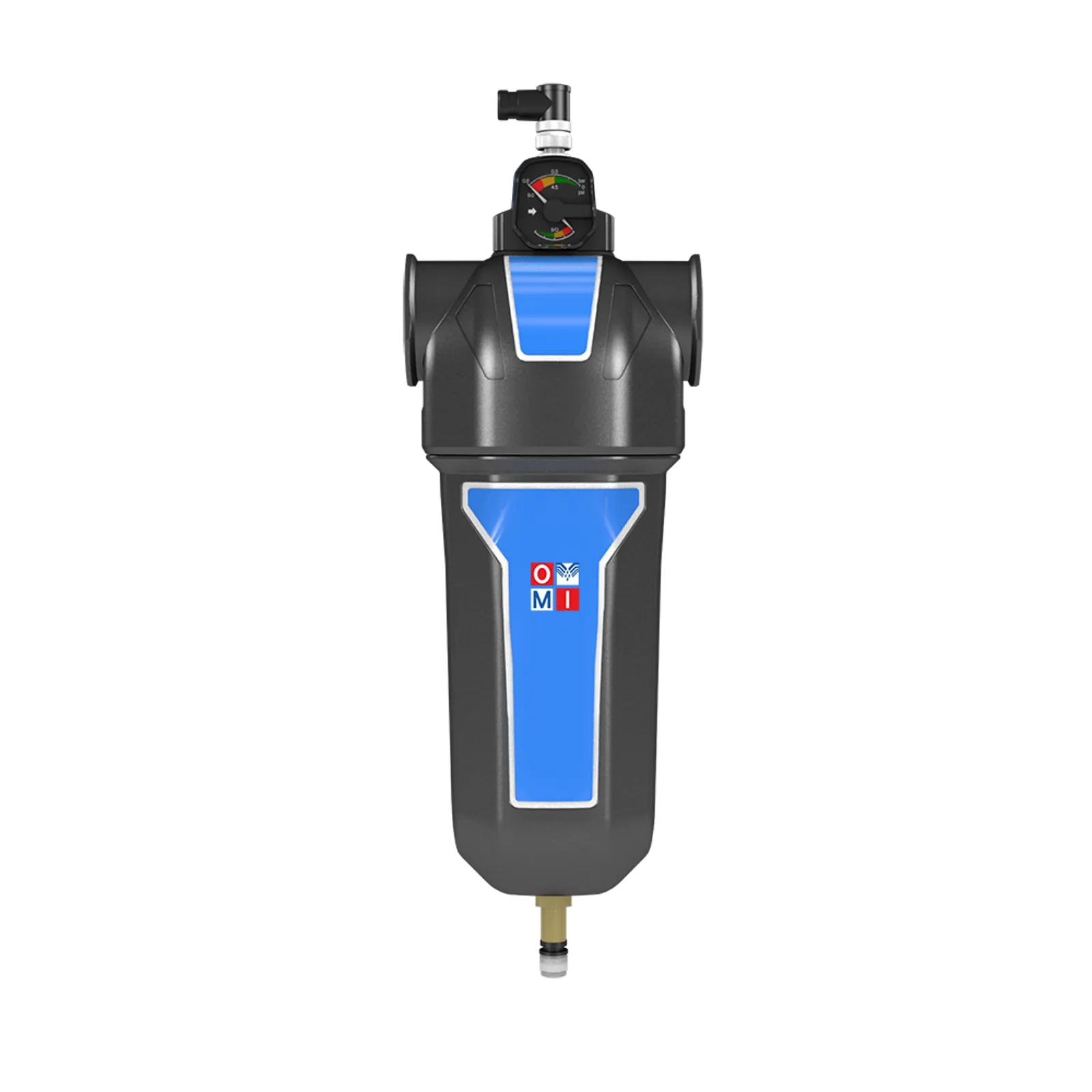

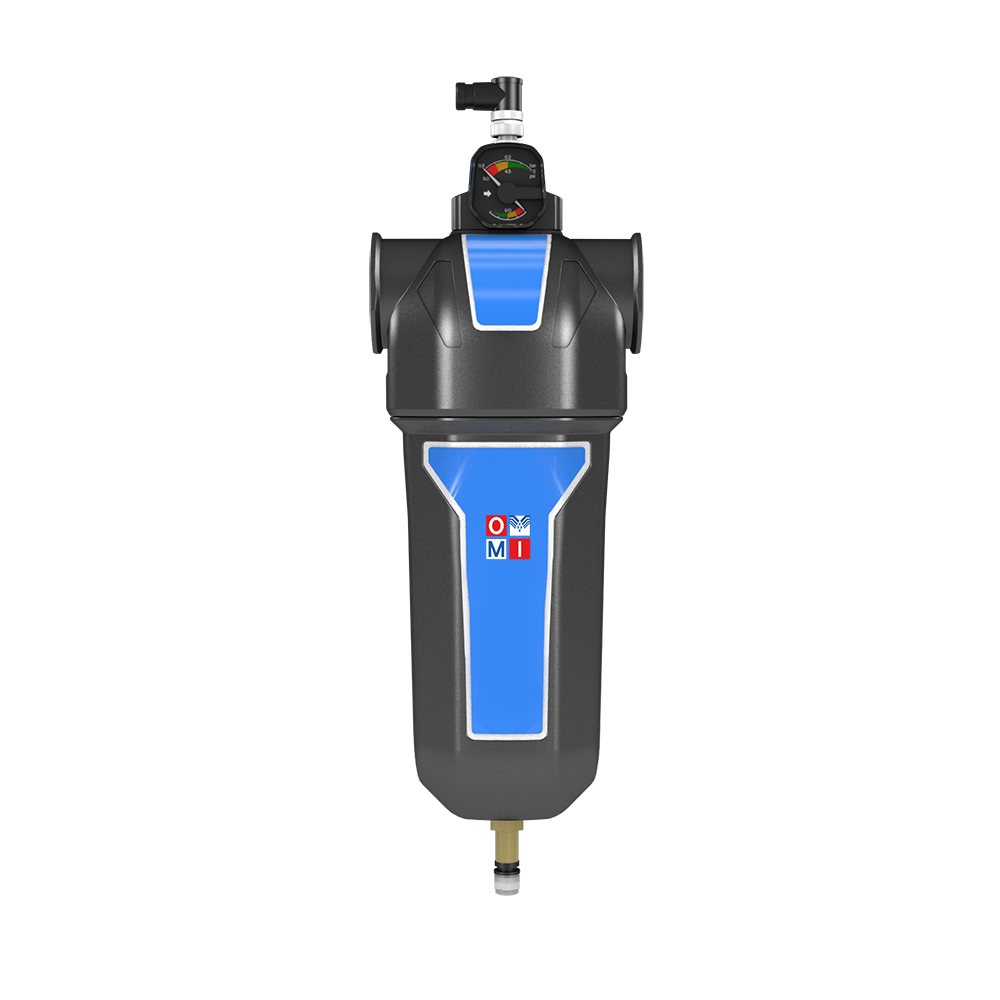

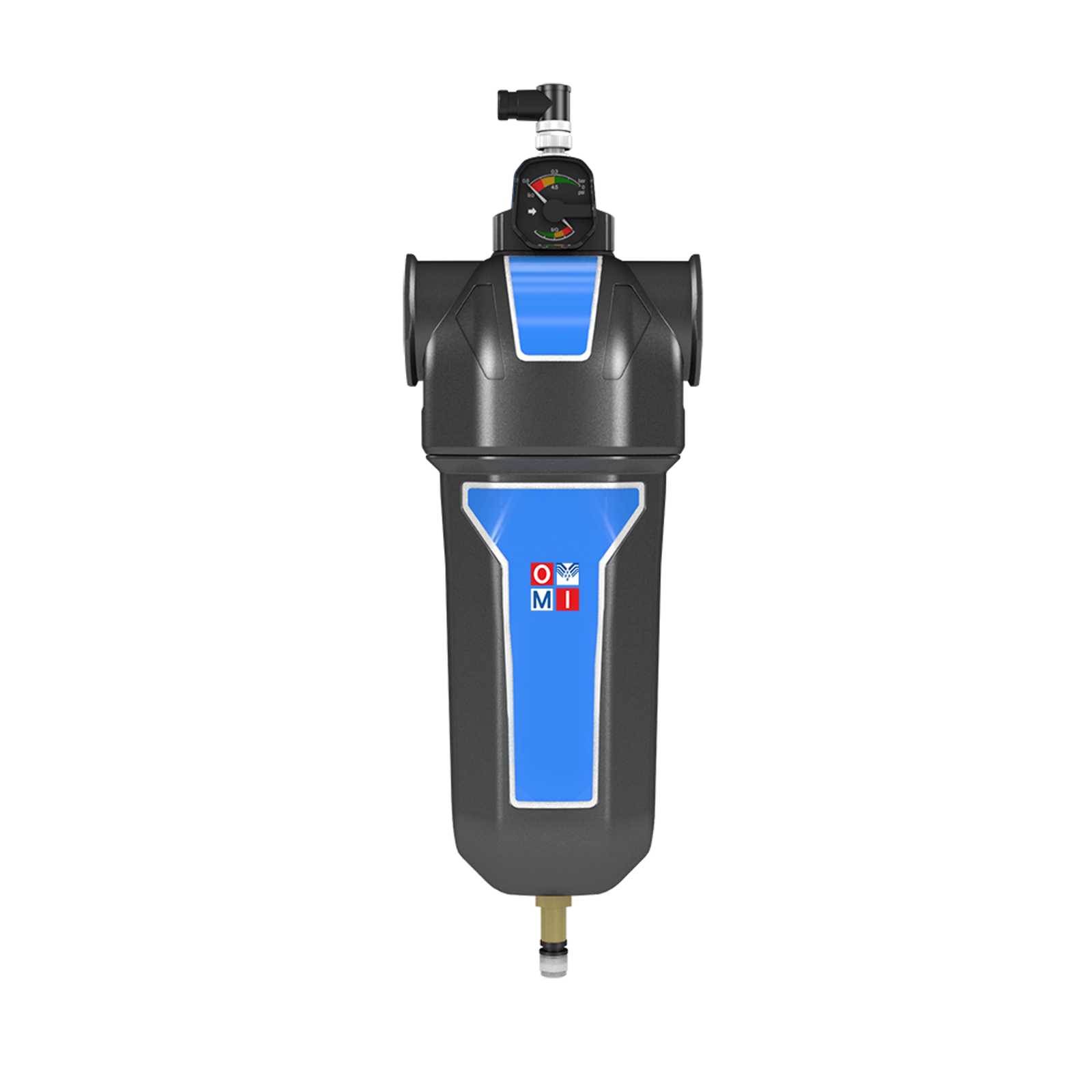

Alps Series compressed air filter with PDT indicator for filter differential pressure / pressure drop monitoring

Air flow rate from 30 m³/h to 2700 m³/h

STANDARD CONDITIONS

Ambient temperature: 25°C
Working pressure: 7 bar
Max working pressure: 20 bar
Inlet air temperature: 20°C
Max inlet air temperature: 100°C
(80°C with pressure gauge option) (60°C on CF)

New series of die-cast aluminum filters characterized by innovative solutions currently under consideration for a patent. In particular:

A new design that ensures very low pressure drop;
Locking system of the filter element which allows an easy and quick replacement and doesn’t require additional space under the filter or direct contact with the cartridge itself.
Adapter between element and customizable filter head configurable on request.

New: filter housings without elements available.

See technical specifications for further information.

Model	Code (PF)	Code (HF)	Code (CF)	Code (QF)	Flow Rate (l/min)	Flow Rate (m³/h)	Flow Rate (CFM)
AF30	04A.0030APG	04A.0030AHG	04A.0030ACG	04A.0030AQG	500	30	18
AF40	04A.0040APG	04A.0040AHG	04A.0040ACG	04A.0040AQG	667	40	24
AF75	04A.0075APG	04A.0075AHG	04A.0075ACG	04A.0075AQG	1250	75	44
AF110	04A.0110APG	04A.0110AHG	04A.0110ACG	04A.0110AQG	1833	110	65
AF190	04A.0190APG	04A.0190AHG	04A.0190ACG	04A.0190AQG	3167	190	112
AF260	04A.0260APG	04A.0260AHG	04A.0260ACG	04A.0260AQG	4333	260	153
AF400	04A.0400APG	04A.0400AHG	04A.0400ACG	04A.0400AQG	6667	400	235
AF500	04A.0500APG	04A.0500AHG	04A.0500ACG	04A.0500AQG	8333	500	294
AF800	04A.0800APG	04A.0800AHG	04A.0800ACG	04A.0800AQG	13333	800	471
AF1000	04A.1000APG	04A.1000AHG	04A.1000ACG	04A.1000AQG	16667	1000	589
AF1560	04A.1560APG	04A.1560AHG	04A.1560ACG	04A.1560AQG	26000	1560	918
AF1830	04A.1830APG	04A.1830AHG	04A.1830ACG	04A.1830AQG	30500	1830	1077
AF2700	04A.2700APG	04A.2700AHG	04A.2700ACG	04A.2700AQG	45333	2720	1601

Model	Code	Suitable Elements (QF)	Suitable Elements (PF)	Suitable Elements (HF)	Suitable Elements (CF)
AF ⅜"	04A.0001A0G03.C	04E.0030AQ	04E.0030AP	04E.0030AH	04E.0030AC
AF ½"	04A.0002A0G03.C	04E.0040AQ	04E.0040AP	04E.0040AH	04E.0040AC
AF ¾"	04A.0003A0G03.C	04E.0075AQ	04E.0075AP	04E.0075AH	04E.0075AC
AF ¾"	04A.0003A0G03.C	04E.0110AQ	04E.0110AP	04E.0110AH	04E.0110AC
AF 1"	04A.0004A0G03.C	04E.0190AQ	04E.0190AP	04E.0190AH	04E.0190AC
AF 1"	04A.0004A0G03.C	04E.0260AQ	04E.0260AP	04E.0260AH	04E.0260AC
AF 1"½	04A.0005A0G03.C	04E.0400AQ	04E.0400AP	04E.0400AH	04E.0400AC
AF 1"½	04A.0005A0G03.C	04E.0500AQ	04E.0500AP	04E.0500AH	04E.0500AC
AF 2"	04A.0006A0G03.C	04E.0800AQ	04E.0800AP	04E.0800AH	04E.0800AC
AF 2"	04A.0006A0G03.C	04E.1000AQ	04E.1000AP	04E.1000AH	04E.1000AC
AF 3" 200HP	04A.0007A0G03.C	04E.1560AQ	04E.1560AP	04E.1560AH	04E.1560AC
AF 3" 200HP	04A.0007A0G03.C	04E.1830AQ	04E.1830AP	04E.1830AH	04E.1830AC
AF 3" 350HP	04A.0008A0G03.C	04E.2700AQ	04E.2700AP	04E.2700AH	04E.2700AC

AF 30 - AF 2700

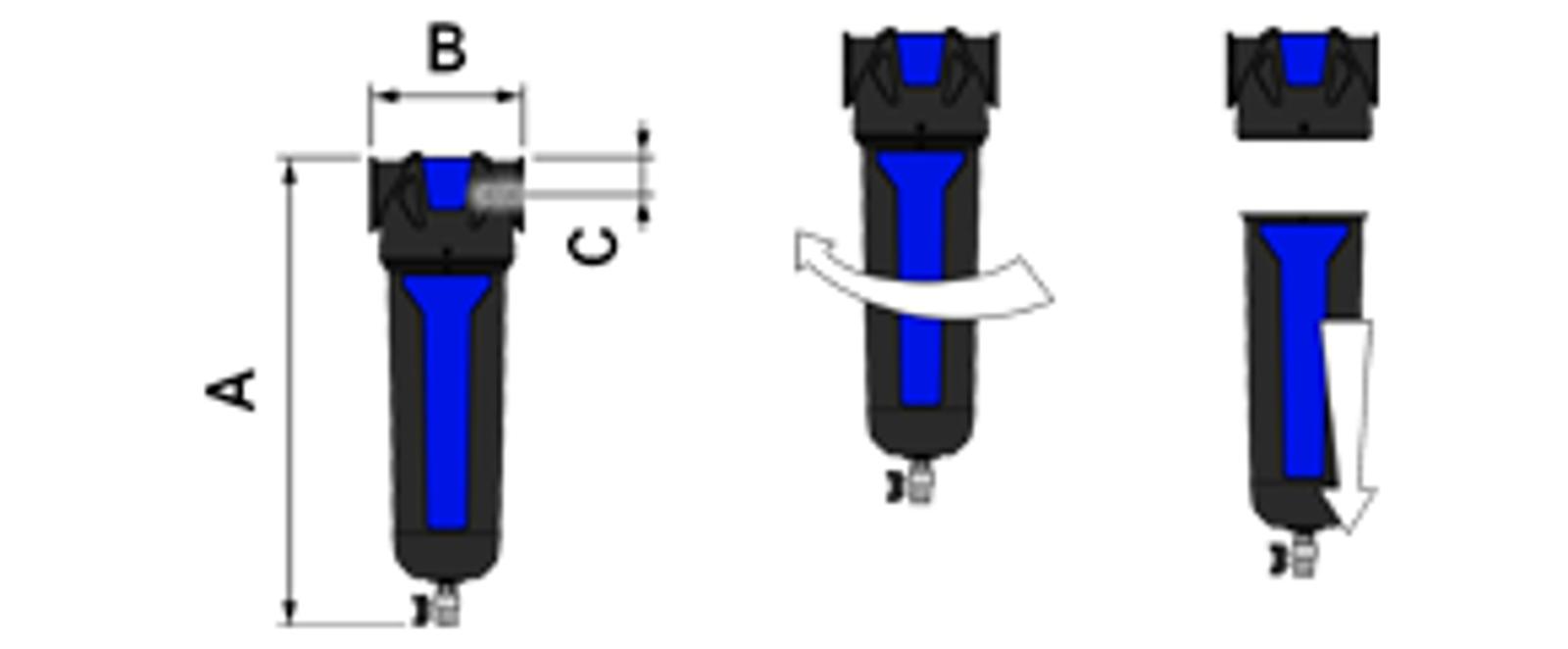

Model	A (mm)	B (mm)	C (mm)	Weight (Kg)	Connections (BSP)	Corresponding housing
AF30	212	76	20	'0.6	⅜"	AF ⅜"
AF40	212	76	20	'0.6	½"	AF ½"
AF75	265	98	26	1.1	¾"	AF ¾"
AF110	265	98	26	1.1	¾"	AF ¾"
AF190	305	129	36	2.1	1"	AF 1"
AF260	305	129	36	2.1	1"	AF 1"
AF400	395	129	36	2.4	1"½	AF 1"½
AF500	395	129	36	2.4	1"½	AF 1"½
AF800	503	170	44	5.2	2"	AF 2"
AF1000	503	170	44	5.3	2"	AF 2"
AF1560	683	205	61	10.7	3"	AF 3"
AF1830	683	205	61	10.7	3"	AF 3"
AF2700	914	205	61	13.7	3"	AF 3"

A complete range of accessories is available for pressure monitoring, condensate management, and filter installation:

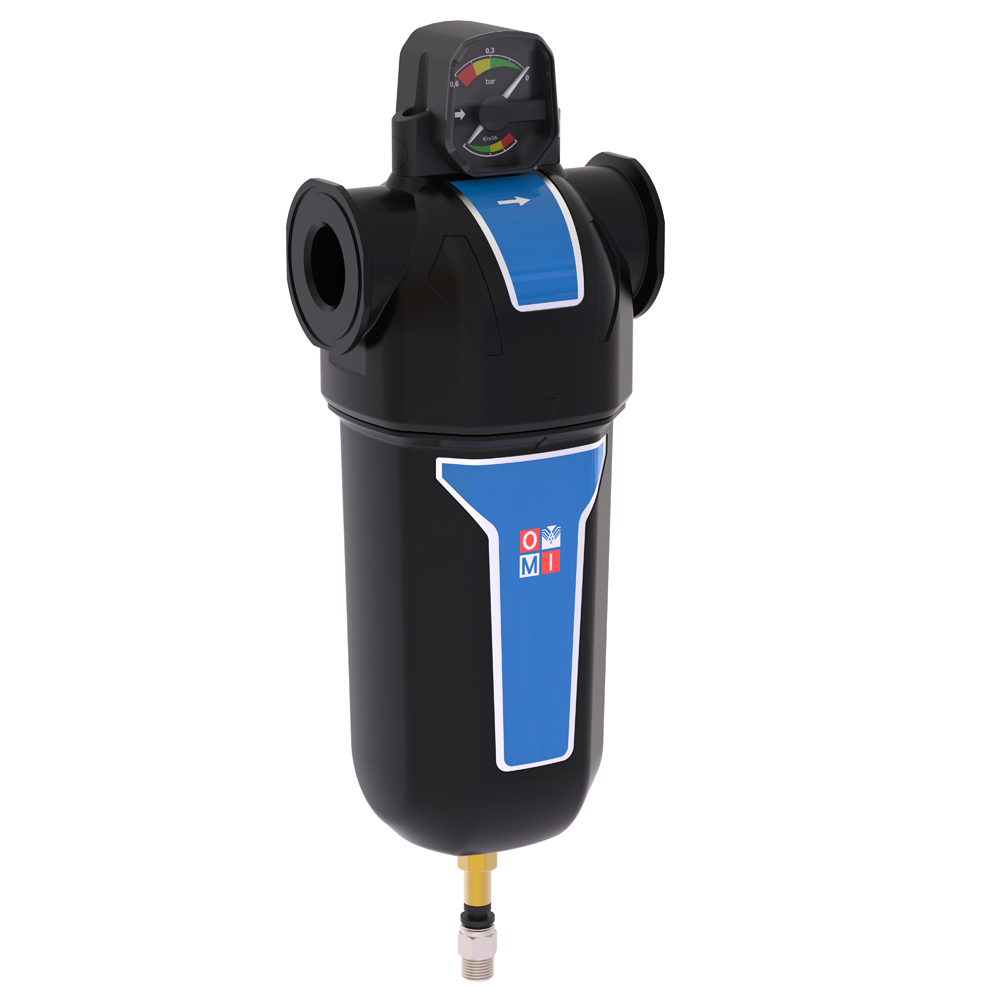

Differential pressure gauge: displays the exact grade of saturation of the filter element. Max pressure: 20 bar / 290 psi. The PDT version is equipped with a signal-conditioning board and a top-mounted connector for a remote signal.

Automatic drain: automatic auto drain suitable for Alps series filters and separators. Completed with manual testing drain.

Manual drain: it is standard on all Alps series filters and separators.

Connections for alps series filters: in line quick connection for 2 or more filters or separators and wall supports.

New Pressure Drop Transmitter

A compact device that measures pressure drop across filters and components, providing a linear electrical output for monitoring, control, and maintenance. Integrating a precision sensing element, a new signal-conditioning board, and a top-mounted connector for fast installation and service.
